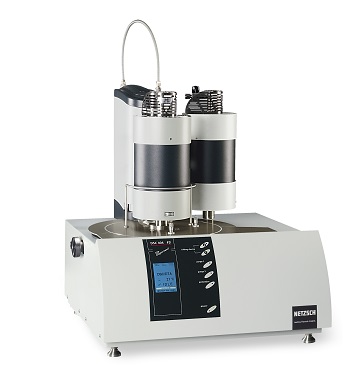

The DSC 404 F3 Pegasus® High-Temperature Differential Scanning Calorimeter is part of the cost-effective NETZSCH F3 product series, which is specifically designed for comparative material characterization and quality control applications.
Image Credit: NETZSCH-Gerätebau GmbH
With a variety of DTA and DSC sensors that are easily exchangeable by the user and with different types of furnaces, the DSC 404 F3 Pegasus® High-Temperature Differential Scanning Calorie meter can be used at temperatures ranging from -150 °C to 2000 °C.
The vacuum tightness of the measurement apparatus is 10-4 mbar.
Key Technical Data
- Thermocouple types: S, E, K, B, W/Re, SProtected, P
- Atmospheres: inert, oxidizing, static, dynamic
- Extension with unique OTS® system (option)
- Temperature range: -150 °C to 2000 °C
- Heating rates: (dependent on the furnace) 0.001 K/min to 50 K/min
- Measuring sensors for DSC and DTA
DSC 404 F1 Pegasus® - High-Temperature DSC
The precise measurement of high-performance materials’ specific heat at elevated temperatures is made possible by the DSC 404 F1 Pegasus® High-Temperature Differential Scanning Calorimeter.
Image Credit: NETZSCH-Gerätebau GmbH
- Thermodynamic characteristics of metallic and ceramic high-performance materials determination
- Execution of quantitative enthalpy and cp calculations in an environment with pure gas
- Vacuum-tight up to 10-4 mbar to provide extremely pure atmospheres for oxidation-sensitive material testing
- Characterizing shape-memory alloys, inorganic glasses, and amorphous metals
The highest flexibility, superior quality, and peak performance are synonymous with the new DSC F1 Pegasus®.
A high-capacity heat flux DSC is included in the DSC 404 F1 Pegasus® for extremely complex application measurements.
With the help of the user-friendly DSC 404 F1 Pegasus® concept, users can configure up to five distinct furnace types over a broad temperature range of -150 °C to 2000 °C.
NETZSCH provides a wide range of sensors, crucible types, and technical equipment for DSC and DTA measurements.
It is feasible to couple to an FTIR or MS without any issues.
Image Credit: NETZSCH-Gerätebau GmbH
The DSC 404 F1 Pegasus® is the most versatile DSC system for research and development, quality assurance, failure analysis, and process optimization, thanks to a significant hardware extension, such as the automatic sample changer (ASC) for up to 20 sample and reference crucibles, and software features, such as BeFlat® for an enhanced baseline or the optional temperature modulation of the DSC signal (TM-DSC).
The new DSC 404 F1 Pegasus® is perfect for everyday laboratory work.
