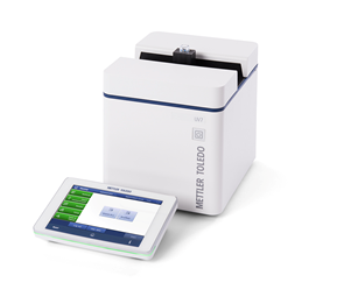

FastTrack™ UV/VIS Spectroscopy. The UV7 provides superior optical performance compliant with strict Pharmacopeia regulations, advanced automation routines and pre-verified methods that are ideal for reliable measurements within regulated industries.
Excellence Performance
The FastTrack™ technology of UV7 available from METTLER TOLEDO guarantees superior optical performance. The optional CertiRef™ module ensures automated performance verification.
Simple One Click™ operation
The wide color touchscreen includes an intuitive One Click™ interface. All users have their home screen, allowing daily tasks to be performed with just one click.
Measurements Within Seconds
Advanced fiber optics is combined with a Xenon flash lamp and CCD array detector, thus enabling a complete spectrum scan within just 1 second.
Specifications
Source: METTLER TOLEDO
| . |
. |
| Wavelength Range (nm) |
190 nm - 1,100 nm |
| Photometric accuracy (K2Cr2O7) |
±0.005A |
| Wavelength accuracy |
±0.5nm |
| Resolution (Toluene in hexane) |
>1.9 |
| Stray light (KCl, 198nm) |
>2.3 |
| Options |
Printer; Cuvettes; Barcode Reader; Fingerprint Reader; CuvetteChanger; FillPalMini; CertiRef; LabX PC Software |
| Shortcuts per user |
24 |
| Max. Number of Methods |
100 |
| User Identification |
yes |
| Languages |
Chinese; English; French; German; Italian; Portuguese; Russian; Spanish; Japanese |
| Minimal Scan time |
1 s |
| Display |
7 inch QVGA Color TFT touch sensitive screen |
| Displayed Resolution |
800x400 |
| Dimensions (DxHxW) |
8.98 in x 8.19 in x 10.04 in (228 mm x 208 mm x 255 mm) |
| Weight (incl. Terminal) |
6.4 kg |
| Material Number(s) |
30254726 |
Pharmacopeia Compliance
The optical performance completely fulfills the requirements of Pharmacopeia regulations (USP, Ph. Eur.).
Open Sample Area
The open sample compartment enables simple and quick handling of samples. Accessories such as holders can be installed easily.
Clean Up the Lab Bench
The concise layout of optical components enables a remarkably compact footprint. It is possible to run the instrument as a standalone without using a PC.
Keep Control of All Costs
The instrument is simple to maintain and strong as there are no moving parts in the optical configuration.
Ready to Use
Once shipped, the instrument is readily available for instant use. The Xenon flash lamp does not need any warm-up time; thus, users can just power it up and start the measurements.
