In the realm of modern electronics, semiconductor diodes have emerged as fundamental components with diverse applications. One of their pivotal roles lies in the fields of rectification and voltage regulation, where these tiny devices wield immense power in transforming alternating current (AC) into direct current (DC) and maintaining stable voltage levels.

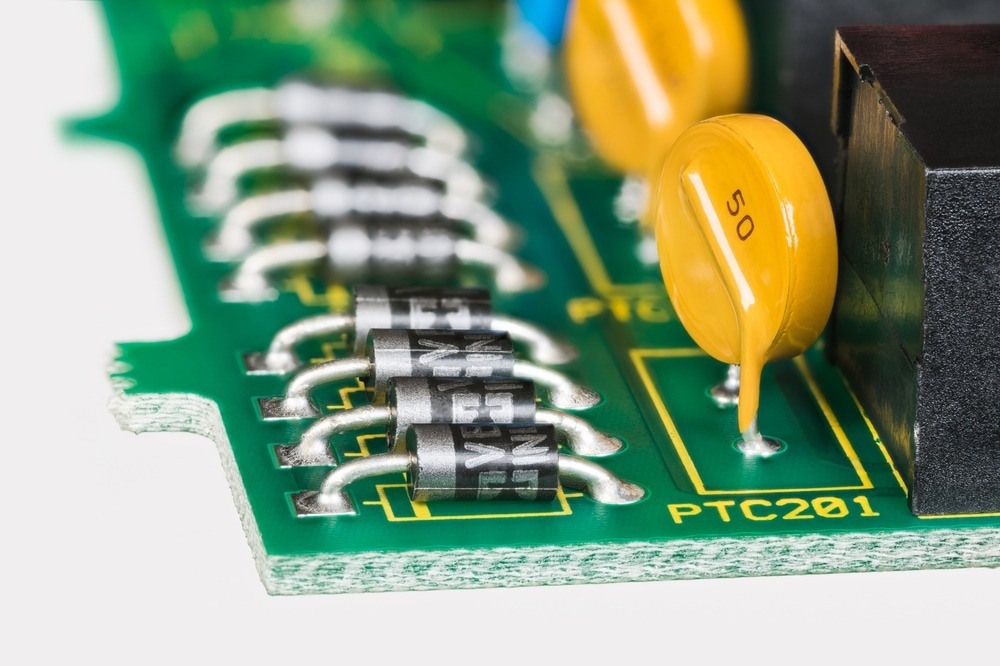

Image Credit: KPixMining/Shutterstock.com
This article delves into the world of semiconductor rectifier diodes, exploring their working principles, significance, and limitations in facilitating efficient rectification and voltage regulation.
Semiconductor diodes play a crucial role in rectification and voltage regulation in electrical circuits. Let's explore how they are used and their significance in these applications.
Semiconductor Rectifier Diodes: Unveiling the Basics
Rectification is the process in which alternating current (AC) is converted to direct current (DC). A semiconductor diode is a key component in rectifier circuits, allowing the flow of electric charge in only one direction.
A semiconductor rectifier diode is a two-terminal electronic device that exhibits asymmetric electrical behavior, allowing it to conduct current primarily in one direction while blocking it in the opposite direction.
This characteristic makes diodes an essential component in converting AC to DC, a process vital for numerous applications, ranging from power supplies to battery charging.
The Rectification Process
A semiconductor rectifier diode acts like a one-way street for electric current due to its internal structure with a P-N junction. This junction has two materials: N-type with extra electrons and P-type with electron deficiencies.
Applying positive voltage to P-type and negative voltage to N-type creates a barrier that stops majority carriers (electrons in N-type and holes in P-type) from crossing. But with forward bias (positive voltage to N-type and negative to P-type), the barrier lowers, allowing current flow, conducting during the positive half of the AC signal.
Reverse bias (negative voltage at N-type, positive at P-type) increases the barrier, blocking current. This keeps the diode non-conductive during the negative AC half. This process rectifies the AC input into pulsating DC output, letting only positive half-cycles pass through.
Half-Wave Rectification
The simplest form of rectification is half-wave rectification, where only one-half of the AC waveform is allowed to pass through to the load. This is achieved by using a single diode in the circuit. However, half-wave rectification has limitations, such as a large harmonic content in the output waveform and inefficient utilization of the AC power source.
Full-Wave Rectification
To overcome the limitations of half-wave rectification, full-wave rectification is commonly used. In this method, both halves of each waveform cycle are converted into pulsating DC using four rectification diodes arranged in a bridge configuration. Full-wave rectification provides a smoother output waveform and utilizes the full capacity of the AC power source.
Voltage Regulation
Voltage regulation is the process of maintaining a stable output voltage despite variations in input voltage or load conditions. Semiconductor diodes, particularly Zener diodes, are used for voltage regulation purposes.
Why Do We Need Semiconductor Rectifier Diodes?
The significance of semiconductor rectifier diodes lies in their ability to convert AC into a usable DC form, which is crucial for powering a wide array of electronic devices and systems. These diodes serve as the building blocks of power supplies, enabling them to provide a steady and reliable source of DC voltage.
From the chargers for our smartphones and laptops to the power grids that light up our cities, rectifier diodes play an essential role in delivering the energy required for our modern lives.
Voltage Regulation: Beyond Rectification
While rectification is the primary function of semiconductor rectifier diodes, they also contribute significantly to voltage regulation. Voltage regulation ensures that the output voltage remains relatively constant despite fluctuations in the input voltage or load conditions. This is particularly important in sensitive electronic circuits where even minor voltage deviations can lead to malfunctions or damage.
By incorporating semiconductor diodes into voltage regulation circuits, engineers can design systems that automatically adjust the output voltage to maintain stability. One common application is in voltage regulator modules (VRMs), where diodes are used in conjunction with other components to provide a consistent output voltage for microprocessors and other integrated circuits.
Limitations and Challenges
Semiconductor diodes play a crucial role in rectification and voltage regulation, offering notable benefits such as high efficiency, compact design, and reliability. They efficiently convert and regulate electrical energy, minimizing power losses, and their small size enables compact circuit designs. Moreover, diodes boast a lengthy operational lifespan and dependable performance.
Nevertheless, there are certain limitations to consider. Diodes exhibit a forward voltage drop of about 0.6 to 0.7 volts (in the case of silicon diodes), causing a slight power loss in the circuit. Moreover, diodes can generate heat, especially when dealing with high currents, necessitating effective heat dissipation methods to prevent overheating.
One of the key limitations of semiconductor rectifier diodes is their inability to produce a completely smooth and constant DC output. The resultant pulsating DC output contains residual AC components referred to as "ripple," which can have unfavorable effects in specific applications. To achieve a cleaner DC signal, additional filtering and smoothing components are required.
Furthermore, the forward voltage drop of diodes leads to energy loss and heat generation, potentially impacting overall system efficiency. Addressing this concern, more advanced diodes like Schottky diodes have been developed with lower forward voltage drops, aiming to minimize energy loss and enhance overall performance.
Conclusion
In summary, semiconductor diodes play a crucial role in rectification and voltage regulation circuits, allowing for the conversion of AC to DC and ensuring stable output voltages. Their operation and limitations are essential considerations for designing reliable electrical systems. Serving as essential components in electronics, semiconductor rectifier diodes are vital for AC to DC conversion and voltage regulation.
Their unique property of enabling current flow in one direction while blocking it in the other is fundamental to their role in rectification. These diodes are integral to powering everyday devices and maintaining consistent voltage levels in complex circuits, facilitating the smooth flow of electricity in our technology-centric world. As technology advances, semiconductor diodes will likely continue to improve in efficiency, overcome limitations, and find new applications.
More from AZoM: What is the Role of the Depletion Region in a Semiconductor PN Junction?
References and Further Reading
Agarwal, T. (2017). Rectifier Diode: Circuit Working, Testing & Its Applications [Online]. ElProCus - Electronic Projects for Engineering Students. URL https://www.elprocus.com/rectifier-diode-working-applications/ (accessed 8.14.23).
Dam, S. (2023). What is the Role of the Depletion Region in a Semiconductor PN Junction? [Online]. AZoM.com. URL https://www.azom.com/article.aspx?ArticleID=22739 (accessed 8.14.23).
Electronics Tutorials, W. (2013). Full Wave Rectifier and Bridge Rectifier Theory. Basic Electronics Tutorials. URL https://www.electronics-tutorials.ws/diode/diode_6.html (accessed 8.14.23).
Elprocus, (2023). Rectifier Circuits | Diodes and Rectifiers | Electronics Textbook [Online]. Electronics Projects Focus. URL https://www.allaboutcircuits.com/textbook/semiconductors/chpt-3/rectifier-circuits/ (accessed 8.14.23).
Granath, E. (2020). What are diodes and rectifiers? [Online]. Power and Beyond. URL https://www.power-and-beyond.com/what-are-diodes-and-rectifiers-a-909411/ (accessed 8.14.23).
Toshiba (2023). Voltage Regulator Diodes (Zener Diodes) [Online]. Toshiba Electronic Devices & Storage Corporation. URL https://toshiba.semicon-storage.com/us/semiconductor/knowledge/e-learning/discrete/chap2/chap2-5.html (accessed 8.14.23).
Utmel Electronics, 2020. Rectifier Diode: Function and Circuit [Online]. Utmel.com. URL https://www.utmel.com/blog/categories/diodes/rectifier-diode-function-and-circuit (accessed 8.14.23).
