F-Molding for Achieving Complex Shapes

A slurry-conditioned material is cast into a product-shaped mold and formed by solidification. This is Kyocera's groundbreaking forming technique, which facilitates near-net shapes and is anticipated to broaden the applications of ceramics.

Components crafted through F-Molding exhibit equivalent or superior characteristics compared to those manufactured through Cold Isostatic Pressing (CIP) forming.

Features

  • Creates Unique, Intricately Shaped Parts

Attains intricate designs that are not attainable through traditional green machining and grinding.

  • Near-Net Shape Forming

Improves cost-effectiveness by curbing material waste and requiring less machining (in comparison to CIP forming)

  • Allows Small-Volume Orders

Initial cost reduction made possible by more economical mold (in comparison to injection molding and press forming)

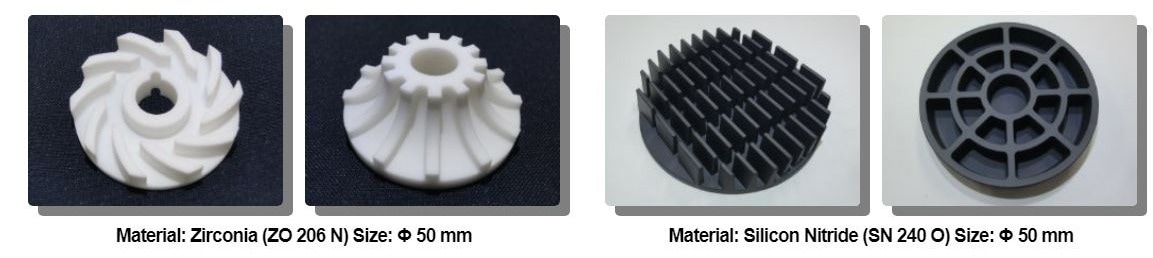

Design Samples

F-Molding for Achieving Complex Shapes

Image Credit: Kyocera International, Inc.

Manufacturing Process

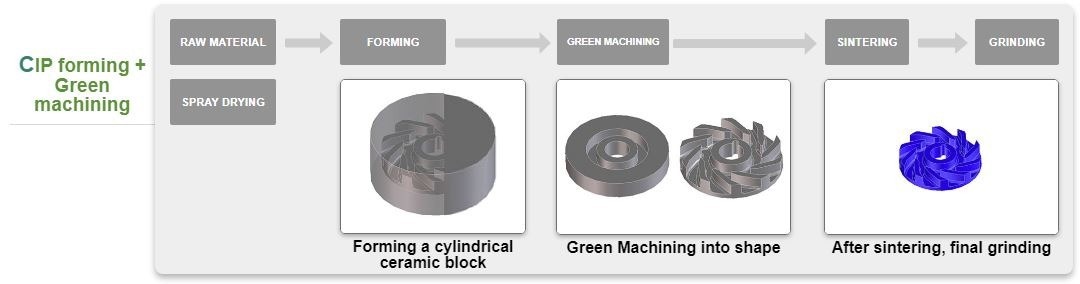

  • Conventional Method

F-Molding for Achieving Complex Shapes

Image Credit: Kyocera International, Inc.

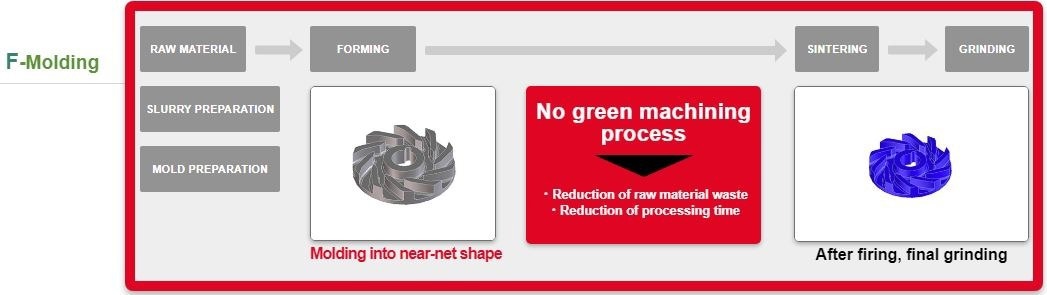

  • New Method

F-Molding for Achieving Complex Shapes

Image Credit: Kyocera International Inc.

Material Lineup

Source: Kyocera International, Inc.

Material
Material Code
Zirconia Cordierite Silicon Nitride
ZO206N CO220O CO720O SN240O
Color - White Gray Gray Black
Density g/cm3 6.0 2.50 2.54 3.3
Mechanical
Characteristics
Vickers Hardness
HV9.807N
GPa 12.0 8.0 8.5 14.0
Flexural Strength
(3-point Bending)
MPa 1,100 190 200 1,020
Young’s Modulus GPa 210 140 145 300
Poisson’s Ratio - 0.32 0.31 0.31 0.28
Fracture Toughness (SEPB) MPa・m1/2 6 1-1.5 1-1.5 7
Thermal
Characteristics
Coefficient of Linear
Thermal Expansion
40-400 ℃ × 10-6/K 10.4 (*) 1.5 (*) 1.5 2.8
40-800 ℃ 10.8 (*) 2.1 (*) 2.1 3.3
Thermal Conductivity 20 ℃ W/ (m・K) 3 4 4 27
Specific Heat Capacity J/ (g・K) 0.44 0.71 0.74 0.65
Thermal Shock Resistance
(quenching into water)
300 450 400 800

* <|0.05|(23 ℃)、<|0.02|(22 ℃)

This information has been sourced, reviewed, and adapted from materials provided by Kyocera International, Inc.

For more information on this source, please visit Kyocera International, Inc.
