The Impact of Sheet Resistance on Thin-Film Solar Cell Efficiency

Thin-film solar cells stand out for their lightweight, flexible designs and their ability to minimize material usage compared to traditional silicon-based solar cells. Their performance, however, depends significantly on the electrical and optical properties of the materials used. Among these properties, sheet resistance is critical, particularly for the transparent conductive layers that enable current flow while allowing sunlight to penetrate the active layers.

Image Credit: Ossila Ltd

Sheet Resistance and Solar Cell Design

Sheet resistance, measured in ohms per square (Ω/□), is a parameter that quantifies the resistance of thin conductive layers. In solar cells, it primarily influences the performance of the front contact layer, typically made from transparent conductive oxides (TCOs) like indium tin oxide (ITO) or fluorine-doped tin oxide (FTO). A lower sheet resistance ensures efficient current flow with minimal losses, but achieving this is a balance between electrical conductivity and optical transparency.

Balancing Sheet Resistance

Transparent conductive layers must maximize light transmission while maintaining low resistance for effective charge transport. Thicker films reduce sheet resistance by providing more conductive pathways but may compromise light transmittance. Thinner films, while more transparent, often require advanced doping or structural modifications to lower resistance without diminishing transparency. This optimization is crucial to improving the overall performance of solar cells.

Innovations in Materials and Techniques

Reducing sheet resistance of electrodes is critical for enhancing solar cell performance. However standard transparent electrodes such as ITO and FTO are expensive and require high-temperature deposition. Recent advancements in materials science and engineering are addressing this challenge to find a material that is low cost, scalable, transparent and conductive.

Among these innovations, graphene and carbon nanotubes have emerged as standout solutions. These materials combine ultra-thin structures with exceptional conductivity, achieving high transparency while minimizing resistance. Their unique properties make them ideal for applications where maintaining light transmittance is as important as ensuring efficient charge transport.

Metallic nanostructures, such as nano-meshes and grids, are also promising alternatives to TCOs. These structures create highly efficient low-resistance pathways while maintaining the optical clarity required for effective light absorption. To further refine the balance between resistance and transparency, researchers are employing advanced techniques like embedding nanowires or layering multiple materials, creating hybrid structures that optimize overall performance.

The integration of these new layer architectures is already demonstrating tangible benefits in different types of solar cells. For example, perovskite solar cells have incorporated graphene-based transparent electrodes to achieve a harmonious balance of low sheet resistance and high transparency.

This innovation has led to significant efficiency improvements, illustrating how reducing sheet resistance through innovative materials and techniques is not just a theoretical pursuit but a practical pathway to expanding the functionality and efficiency of solar cell technologies.

The Role of a Four-Point Probe in Measuring Sheet Resistance

Accurate measurement of sheet resistance is fundamental to optimizing the performance of new solar cell materials. Precise measurements ensure electrodes and charge transport layers meet the low sheet resistance requirements of high-efficiency solar cells and allow efficient material innovation and exploration.

The four-point probe system has become a standard tool in this field due to its high accuracy and ability to eliminate contact resistance effects. This precision is crucial because even minor variations in sheet resistance can significantly impact the current flow and overall efficiency of the solar cell.

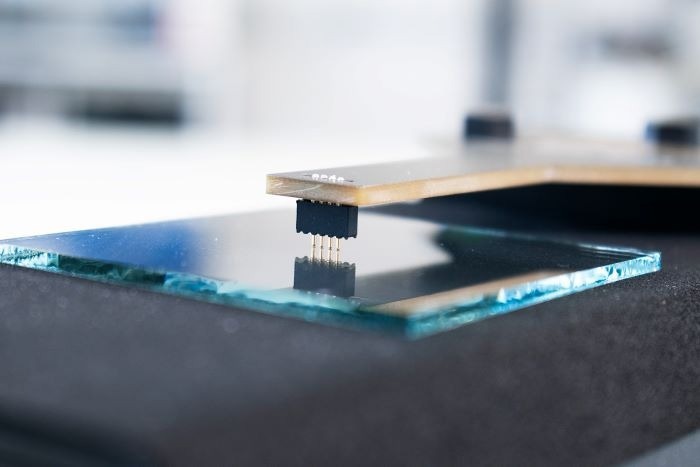

The system works by placing the thin-film material on a measurement stage and positioning four collinear probes on its surface. A current is passed through the outer probes, while the voltage drop across the inner probes is measured. The sheet resistance is then calculated using the measured voltage, applied current, and correction factors to account for sample geometry.

Image Credit: Ossila Ltd

This measurement technique has broad applications in solar cell research and production:

1. Testing Transparent Conductive Layers: For TCO materials like ITO or alternative materials, such as graphene or metallic nanostructures, precise sheet resistance measurements ensure the material meets performance requirements before integration into solar cells.
2. Mapping Surface Uniformity: By mapping sheet resistance across the surface of a thin film layer, researchers can identify inconsistencies or defects that may affect solar cell performance. Non-uniform resistance can lead to uneven current distribution, reducing efficiency and reliability.
3. Evaluating Long-Term Stability: As solar cells are exposed to environmental stresses such as moisture, heat, and UV light, the sheet resistance of their conductive layers can change over time. Monitoring these changes helps researchers understand material degradation and devise strategies to improve stability, such as better encapsulation or enhanced material formulations.
4. Advancing Material Innovation: For novel materials like graphene, carbon nanotubes, or hybrid structures, the four-point probe system provides a reliable method for assessing their suitability as transparent conductive layers. By correlating sheet resistance measurements with optical transparency and mechanical properties, researchers can refine these materials for practical applications.
5. Optimizing Manufacturing Processes: In roll-to-roll manufacturing of thin-film solar cells, maintaining consistent sheet resistance across large-area films is a critical quality control parameter. The four-point probe system enables rapid testing during production, ensuring that every batch meets the required standards.

By integrating precise sheet resistance measurements into the development and production cycle, solar cell researchers and manufacturers can ensure the performance, reliability, and scalability of their technologies.
