Sialon Advanced Ceramics - Forms, Structures and Grades of Sialons

SiAlONs are ceramic alloys based on the elements silicon (Si), aluminium (Al), oxygen (O) and nitrogen (N) and were developed in the 1970s to solve the problem of silicon nitride (Si₃N₄) being difficult to fabricate.

Image Credit: Shutterstock/Orange Deer studio

Different Forms of SiAlON Materials

As alloys of Si₃N₄, SiAlONs exist in three basic forms. Each form is iso-structural with one of the two common forms of Si₃N₄, beta (β) and alpha (α) and with silicon oxynitride. The relationship between that of SiAlON and Si₃N₄ is similar to that between brass and pure copper. In the later case, copper atoms are replaced by zinc to give a better and stronger alloy than the mother metal. In the case of SiAlON, there is substitution of Si by Al with corresponding atomic replacement of N by O, to satisfy valency requirements. The resulting 'solution' (SiAlON) has superior properties to the original pure solvent (silicon nitride).

Structure of Sialon Materials

The fundamental structural unit of Si₃N₄ is the SiN₄ tetrahedron, which is analogous to the SiO₄ structural units in silicates. The tetrahedra are linked together into a rigid three dimensional framework by sharing corners. The Si-N bonds are short and they are very strong. This strong, rigid, compact structure is responsible for many of the important properties of Si₃N₄.

β-SiAlON Ceramics

Atomic Arrangement of β-SiAlON Ceramics

β-SiAlON is based upon the atomic arrangement existing in β-Si₃N₄. In this material, Si is substituted by Al with corresponding replacement of N by O. In this way up to two-thirds of the silicon in β-Si₃N₄ can be replaced by Al without causing a change in structure. The chemical replacement is one of changing Si-N bonds for Al-O bonds. The bond lengths are about the same for the two cases but the Al-O bond strength is significantly higher than that of Si-N. In SiAlON the Al is co-ordinated as AlO₄ and not as AlO₆ as in alumina (Al₂O₃). Therefore, in β-SiAlON the bond strength is 50% stronger than in Al₂O₃. Thus SiAlONs intrinsically have better properties than both Si₃N₄ and Al₂O₃.

β-SiAlON has the general formula Si₆-zAlzOzN₈-z where z varies between 0-4.2 and requires a sintering additive such as yttria (Y₂O₃), magnesia (MgO) or a rare earth oxide in order to densify. As a solid solution, the vapour pressure of β-SiAlON is lower than that of Si₃N₄ and as a result the SiAlON will form more liquid at a lower temperature. β-SiAlON is thus more easily densified than Si₃N₄ using normal sintering techniques. Furthermore, it should be noted that the lower vapour pressure of SiAlON reduces decomposition at high temperatures so that the SiAlON is thermodynamically more stable than Si₃N₄.

β-SiAlONs from International Syalons

The β-SiAlONs produced by International Syalons use yttria as a sintering aid. When sintered above 1700°C elongated hexagonal shaped β-SiAlON grains (Figure 1) are precipitated and grow in the oxynitride liquid phase formed from the sintering additives such as yttria, alumina, silica and aluminium nitride. Subsequently, on cooling the liquid phase forms a refractory intergranular glass. This produces the material Syalon 101. This material, with its elongated β grains, is characterised by high strength and toughness.

Figure 1. Micrograph showing the microstructure of Syalon 101. The fine beta-sialon (β) grains surround small pockets of glass (g).

It is possible through controlled processing to convert the intergranular glass to yttrium aluminium garnet (YAG) which is a refractory crystalline phase. This gives the material better high temperature properties and the material can retain its strength at temperatures up to 1350°C. This material is available as Syalon 201.

α-SiAlON Ceramics

Atomic Arrangement of α-SiAlON Material

The second form of Si₃N₄ with which SiAlON is isostructural is α-Si₃N₄. The stacking structure in α-Si₃N₄ is different from β-Si₃N₄ in that the long 'channels' which run through the β structure are blocked at intervals. This gives rise to a series of interstitial holes. In each Si₁₂N₁₆ unit cell there are two intersticial holes. In α-SiAlONs, Si in the tetrahedral structure is replaced by Al with limited substitution of N by O. Valency requirements are satisfied by modifying cations occupying the interstitial holes. In this way cations of yttrium (Y), calcium (Ca), lithium (Li) and neodymium (Nd) for example can be incorporated into the structure. Consequently α-SiAlON has the general formula Me_xSi_12-(m+n)Al_m+nO_nN_16-n where x<2 and Me is the modifying cation.

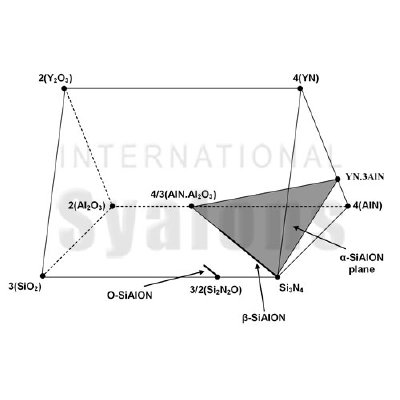

The α-SiAlON phase region can be illustrated in Figure 2, which shows the system based on Y₂O₃ additive. This is a Jänecke prism and is the most convenient way to show the five component SiAlON system i.e. Me-Si-Al-O-N. The α-SiAlON phase region is the shaded region in the Si₃N₄-YN.3AlN-AlN.Al₂O₃ plane. It can be seen also that the β-SiAlON solid solution, which extends along the Si₃N₄-YN.3AlN-AlN.Al₂O₃ line, thus forms a border of the α-SiAlON plane. This results in the possibility to form mixed α:β-SiAlONs.

Figure 2. Phase diagram for the Y-Si-Al-O-N system.

Formation of α-SiAlON Material

α-SiAlONs are formed similarly to β-SiAlONs in that the a phase is precipitated from an oxynitride liquid phase. During the reaction the amount of liquid is gradually reduced as the modifying cation is incorporated into the α-SiAlON structure. Thus, in theory, it is possible to form a single phase α-SiAlON. However, in practice some residual intergranular glass will remain after sintering, which as with the β-SiAlONs can often be converted to refractory crystalline phases. Thus by careful control of the composition and sintering cycle α-SiAlON ceramics can be formed with excellent high temperature properties. The α-SiAlON grains tend to have a small, equiaxed morphology which results in materials which have a lower strength and toughness than β-SiAlON. However, α-SiAlON has a higher hardness than β-SiAlON.

Mixed α:β-SiAlON Ceramics

As described above it is possible to control the starting composition and the processing to develop mixed α:β-SiAlONs. Thus one can tailor the material to have a combination of the high strength and toughness of β-SiAlON and the high hardness and high temperature properties of α-SiAlON. International Syalons produce a mixed α:β-SiAlON which is available as Syalon 050.

O-SiAlON Ceramics

Atomic Arrangement of O-SiAlON Ceramics

The final form of SiAlON, O-SiAlON, is iso-structural with silicon oxynitride (Si₂N₂O). The structure of Si₂N₂O consists of layers of Si₃N₄ rings joined by Si- O-Si bonds. In O-SiAlON, Al and O replace some Si and N atoms.

O-SiAlONs from International Syalons

International Syalons don't manufacture O-SiAlON ceramics. They are effectively a refractory with no benefits over β-SiAlON for example, other than cost, although the much superior properties of α-SiAlON and β-SiAlON provide much greater service life, thus offsetting any supposed cost benefits.
