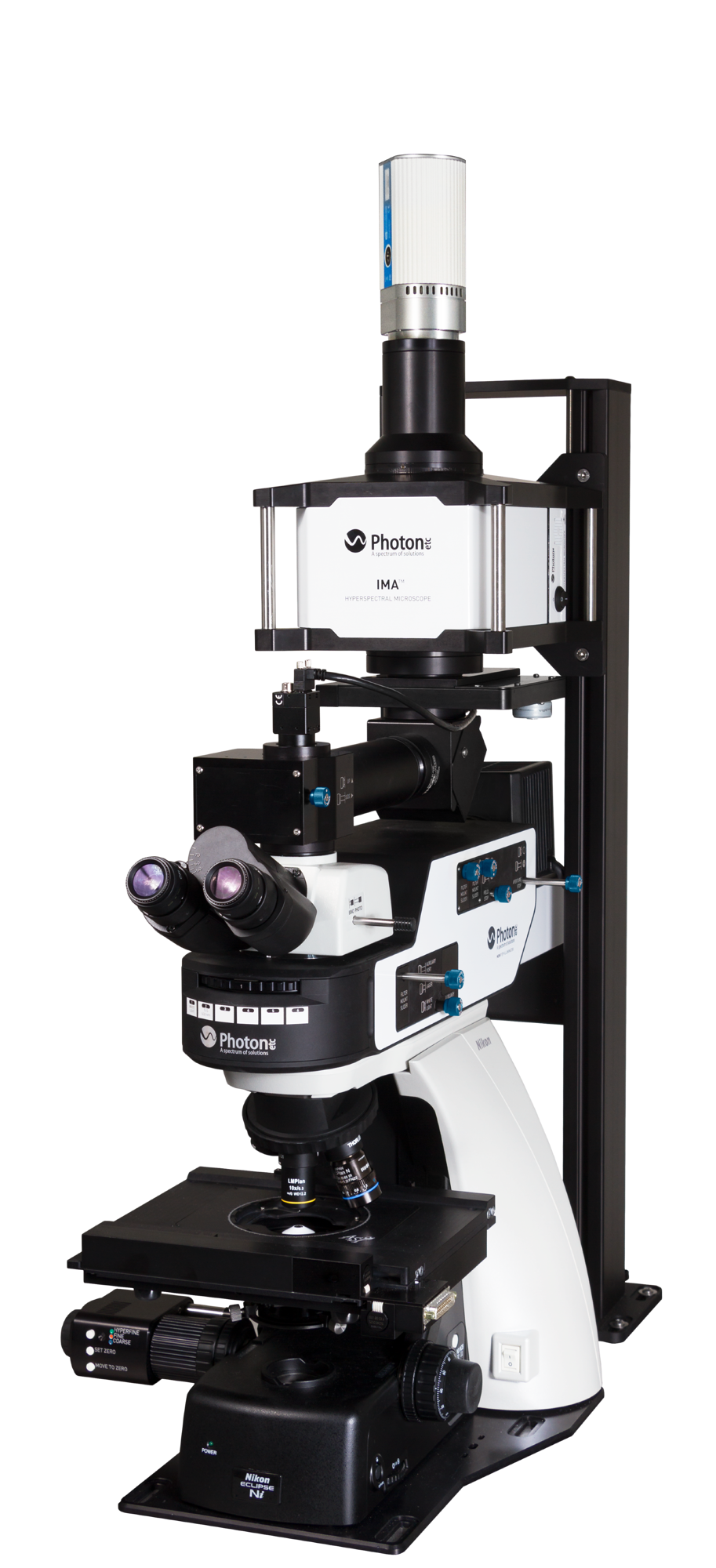

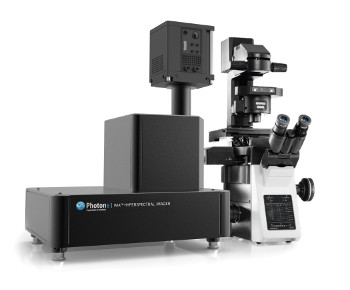

Photon etc.. presents IMA™, a fast and all-in-one hyperspectral microscope suitable for analyzing solar cells and advanced materials in the visible (VIS), near-infrared (NIR), and short-wave infrared (SWIR) spectral ranges. Based on Photon etc.’s high performance tunable imaging filter, this imaging spectrometer delivers crisp images and exceptional data quality ideal for identifying defects and impurities in photovoltaic materials.
Notably, this hyperspectral imaging system features a patented absolute photometric calibration module that allows for the quantification of electrical properties, like the quasi-Fermi level splitting, solely through optical measurements. This eliminates the need for electrical connections or measurements while providing valuable insights into the materials' characteristics. Lastly, IMA’s global illumination is closer to sunlight illumination, providing information directly relevant to a device’s performance in the field.
Key Features
The main features of the IMA™ are:
- VIS, NIR and/or SWIR spectral ranges. One single instrument covering 400 nm - 1620 nm
- High spatial and spectral resolution
- 3D (spatial and spectral) mapping of photoluminescence (PL), electroluminescence (EL), absorbance, reflectance
- Quantitative PL and EL measurements
- MP s-CMOS camera / high-performance InGaAs camera
- Illumination module including up to 3 laser sources and halogen or Hg lamps.
- Scientific grade microscope
- Fast global hyperspectral imaging (no raster or line scan)
- PHySpec Software: acquisition and analysis – unlimited license included
- Customization available
Applications
The applications of the IMA™ are:
- Visualization of the chemical, structural and optoelectronic landscape in halide thin film photovoltaic devices.
- Mapping of inhomogeneities and defects by measuring the current transport efficiency to characterize their effect on electrical properties of cells (e.g. fill factor).
- Mapping of anomalous PL, the quasi-fermi level splitting (Δµ), series, and shunt Resistance (Rs, Rsh) to identify the ideal fabrication route that would minimize losses caused by laser patterning/ablation process.
Discover a comprehensive overview of our IMA - Hyperspectral imaging system
Contact Photon etc. for more information on these applications: [email protected].
|
Technical Specifications
|
IMA VIS |
IMA SWIR |
|
Spectral Range
|
400 - 1000 nm
|
900 - 1700 nm
|
|
Spectral Resolution
|
< 2.5 nm
|
< 4 nm
|
|
Spatial Resolution
|
Sub-micron ; limited by the microscope objective NA
|
|
Camera
|
CCD, EMCCD, sCMOS
|
Photon etc.'s InGaAs camera (ZephIR 1.7 or
Alizé 1.7)
|
|
Excitation Wavelength (up to 3 lasers per system)
|
Standard wavelengths:
405, 447, 532, 561, 660, 730, 785, 808 nm
|
|
Microscope
|
Upright or inverted
|
|
Visualization modes
|
Hyperspectral, multi-spectral, and broadband visualization modes
|
|
Preprocessing
|
Spatial filtering, statistical tools, spectrum extraction, data normalization, spectral calibration
|
|
Hyperspectral Data Format
|
FITS, HDF5
|
|
Software
|
Computer with PHySpec™ control and analysis software included
|
|
Dimensions
|
≈ 60" x 33" x 33" (150 cm x 82 cm x 82 cm)
|
|
Weight
|
≈ 80 Kg
|
|
Upgrades
|
|
Extended spectral range
|
400-1620 nm in one instrument
UV option
|
|
XY motorized stage
|
100 mm x 100 mm travel, 22 nm resolution
|
|
Absolute photometric calibration
|
Quantitative PL and EL measurements
Data units:
photons/eV.s.cm2.sr
|
|
Darkfield imaging modality
|
Darkfield condenser and microscope objectives
|
|
Polarisation dependent measurements
|
| |
