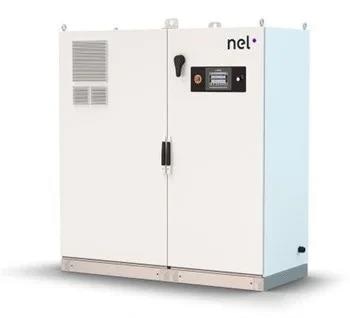

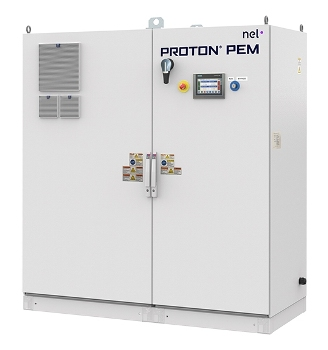

H Series water electrolysers use Proton Exchange Membrane (PEM) technology to produce hydrogen gas on-site. They offer turnkey solutions for medium-scale applications requiring up to 6 Nm3/h of hydrogen gas at 99.999+% purity. These units have a minimal impact on facility floor space, are easy to maintain and typically can be installed within a day.
Features
- Pure hydrogen at process pressure – up to 30 barg (435 psig) hydrogen and 99.999+% purity
- Economical hydrogen supply – tracks electric costs
- Increased safety – no caustic chemicals
- Virtually zero stored hydrogen – eliminates the risk of flooding the space
- Small footprint – fraction of space needed compared to cylinders or trailers
- Reliable supply of hydrogen – field-proven reliability
- Fast and easy installation – typically up and running in a day
- Automated – safe, unattended operation
- Low maintenance – requires as little as 4 hours of maintenance per year
Specifications
Source: Nel Hydrogen
| Specifications |
H2 |
H4 |
H6 |
| Nominal Production Rate |
2 Nm3/h (76 SCF/h)
4.31 kg/24 h |
4 Nm3/h (152 SCF/h)
8.63 kg/24 h |
6 Nm3/h (228 SCF/h)
12.94 kg/24 h |
| Turndown Range |
0 to 100% |
0 to 100% |
0 to 100% |
| Power Consumption by System at 100% Capacity1 |
7.3 kWh/Nm3
(19.2 kWh/100 SCF) |
7 kWh/Nm3
(18.5 kWh/100 SCF) |
6.8 kWh/Nm3
(17.8 kWh/100 SCF) |
| Purity |
99.999+% |
99.999+% |
99.999+% |
| O2-Content in H2 |
< 1 ppm v |
<1 ppm v |
< 1 ppm v |
| H2O-Content in H2 |
< 5 ppm v |
< 5 ppm v |
< 5 ppm v |
| Delivery Pressure |
15 barg (218 psig);
Optional 30 barg (435 psig) |
15 barg (218 psig);
Optional 30 barg (435 psig) |
15 barg (218 psig);
Optional 30 barg (435 psig) |
| Dimensions – L x W x H |
1.8 m x 0.8 m x 1.9 m
(5.9 ft x 2.5 ft x 6.6 ft) |
1.8 m x 0.8 m x 1.9 m
(5.9 ft x 2.5 ft x 6.6 ft) |
1.8 m x 0.8 m x 1.9 m
(5.9 ft x 2.5 ft x 6.6 ft) |
| Ambient Temperature |
5 to 50°C (41 to 122º F) |
5 to 50°C (41 to 122º F) |
5 to 50°C (41 to 122º F) |
| Electrolyte |
Proton Exchange Membrane |
Proton Exchange Membrane |
Proton Exchange Membrane |
| Feed Water Consumption |
0.9 l/Nm3 |
0.9 l/Nm3 |
0.9 l/Nm3 |
For reference only – specifications are subject to change. Please contact Nel Hydrogen for solutions to best fit your needs.
1 Beginning of life and dependent on configuration and operating conditions.
