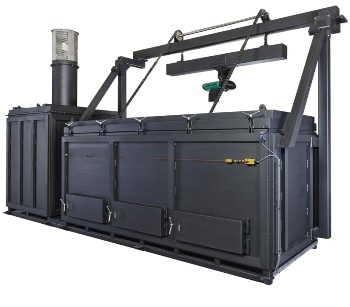

The I8-1000 model is Inciner8’s largest incinerator.
It is a controlled air incinerator, offering ideal combustion conditions for a variety of waste types. Its top-loading design offers liquid retention, making this incinerator optimal for incineration of a number of different waste streams.
Emission Data
Average emissions / EU standards on basic incinerators (with secondary chamber)
| Parameter |
Limits (1/2 hour av) |
Measured |
| Total dust |
30 mg/m3 |
12 mg/m3 |
| Sulfur dioxide |
200 mg/m3 |
2,4 mg/m3 |
| Nitrogen dioxide* |
400 mg/m3 |
60 mg/m3 |
| Carbon monoxide |
100 mg/m3 |
78,3 mg/m3 |
Typical General Waste Applications
- Remote housing
- Industrial waste < 8000 kg day
- < 5000 people communities
- Bigger camps
- Universities
Additional Information
Options
Extras
- Pollution control systems
Technical Specifications
| Operational Specifications |
| Combustion Chamber Volume (m3) |
8.7 m3 |
| Burn Rate* |
up to 600 kg per hour |
| Average Fuel Consumption |
40 - 50 ltrs p/h |
| Operational Temperature |
> 850 °C |
| Gas Retention in Secondary Chamber |
2 secs |
| Temperature Monitoring |
Yes |
| Average ash residue (%) |
3% |
| Thermostatic Device |
Yes |
| Physical Specifications |
| External Length (mm) |
6540 mm |
| External Width (mm) |
1840 mm |
| External Height (mm) |
6260 mm |
| Door Size (mm) |
4000 x 1500 |
| Shipping Weight |
21500 kg |
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additonal accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
