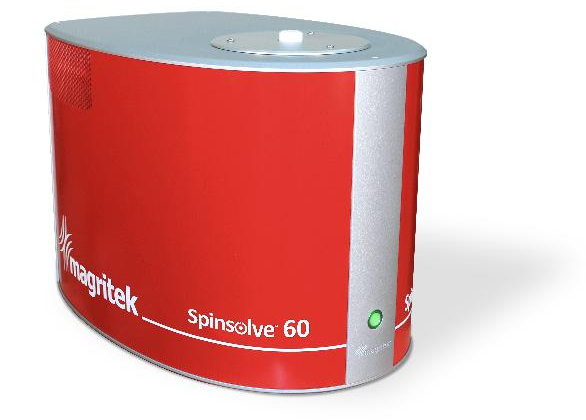

Offering high-quality 1H and 19F NMR spectra in seconds, the Spinsolve 60 spectrometer allows you to acquire rapid NMR spectra directly from the laboratory bench.
Features of the Spinsolve 60 include:
- 1H and 19F nuclei
- 1D and 2D NMR experiments
- Compact, benchtop size and weight
- No spinning or compressed gas
- No cryogens
- Easy to use
Applications for the Spinsolve 60 range from work in research labs, industrial QA/QC, and in educational setups for undergraduate students.

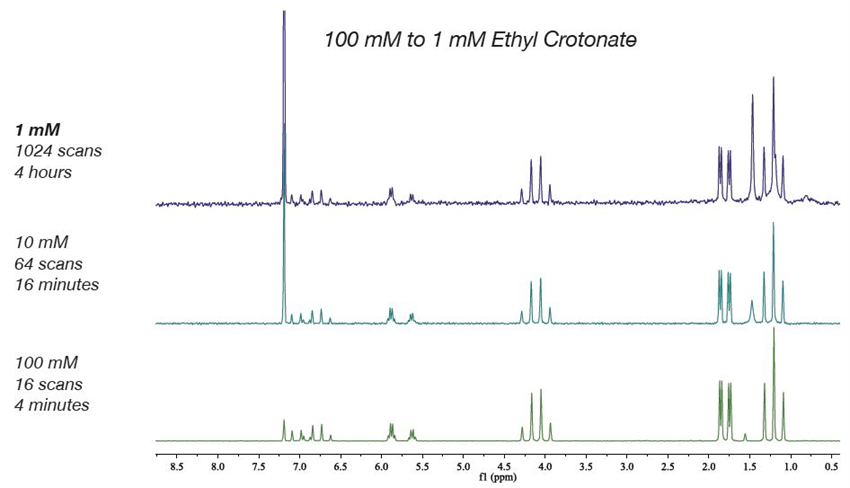

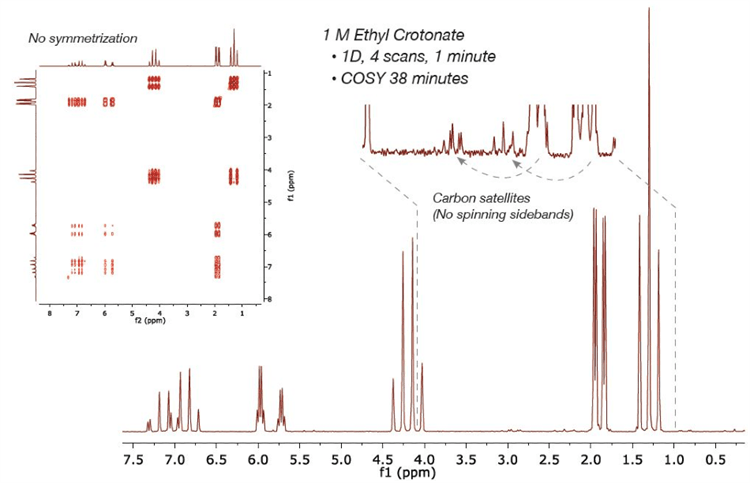

Spinsolve 60: Example Spectra

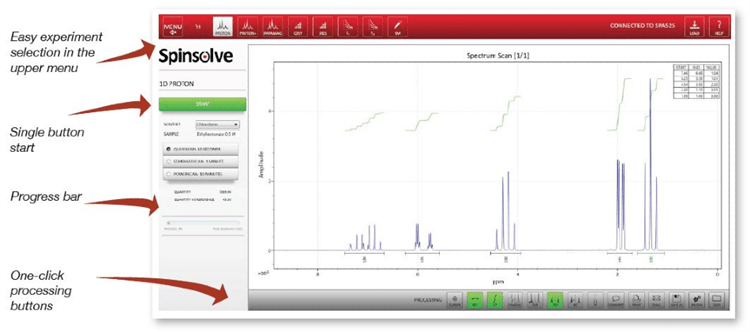

Spinsolve 60 Software
The Spinsolve software is brilliantly simple and user-friendly, featuring a clean and intuitive interface.

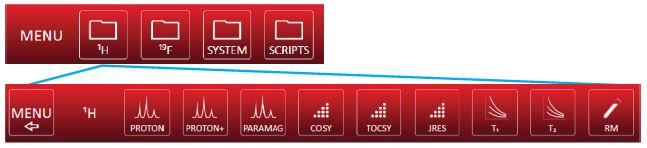

Simple Menu Structure
All users need to do to begin is click to choose the nucleus and the type of experiment they wish to run, and click start, choosing any processing needed after.
Spinsolve 60 Specifications
The specs that the Spinsolve 60 runs to are as follows.
- Nuclei: 1H, 19F
- Operating frequency: 60 MHz (1H)
- 1H 50% Linewidth: <0.5 Hz
- 1H 0.55% Linewidth: <20 Hz
- 1H Sensitivity: >180:1 for 1% Ethyl Benzene
- Operating Temperature Range: 20 °C to 25 °C (68 °F to 77 °F)
- Dimensions: 58 x 43 x 40 cm (23” x 17” x16”)
- Weight: 60 kg (120 lb)
- Stray Field: <2 G all around system
- Power requirement: 110-240 V AC.
The pulse sequences available on the Spinsolve 60 spectrometer include:
1H Sequences
- 1D
- Paramagnetic
- 2D COSY
- S2 TOCSY
- 2D JRES
- T1 and T2
- Reaction monitoring
19F Sequences
- 1D
- Paramagnetic
- 2D F – COSY
- 2D F – JRES
- 2D FH – COSY
- Reaction monitoring
