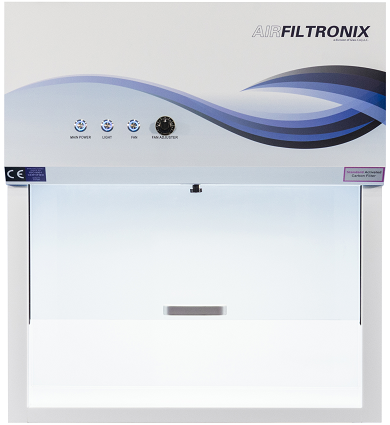

Glas-Col’s P Series Ductless Fume Hood offers a work environment that is safe for laboratory staff working with acids and tough chemicals. The ductless fume hoods are fitted with a strong and efficient fan that pulls air via the inlet of the hood and into the filtration membrane.
The system has been developed to keep dangerous airborne contaminants away from the operator’s respiratory zone. Several filter media are utilized based on the type of chemical vapors and or particulate that have been produced. No exterior ducting is needed as the air has been recirculated.
Image Credit: Glas-Col
Image Credit: Glas-Col
Image Credit: Glas-Col

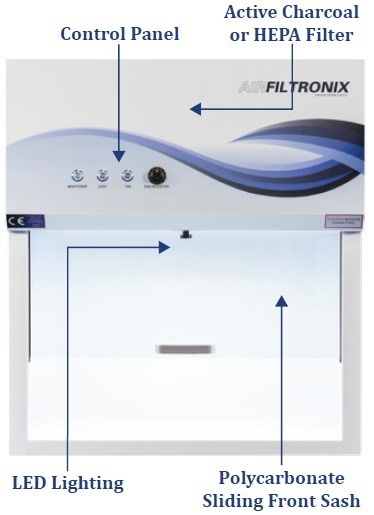

Features
- Small affordable models
- Comes with an analog control panel
- Polycarbonate sliding front sash
- Built-in sealed polypropylene worktop
- Operational sash opening measures around 8″
- Polypropylene structure comes with high chemical resistance
- Full opening is 18″
- Range of HEPA and carbon filters
- EC fan–High-efficiency low energy consumption
- Environmentally friendly and affordable LED lighting
- Wind speed ranges from 100 to 20 FPM
- LED Light is available
- Back access for filter replacement
Source: Glas-Col

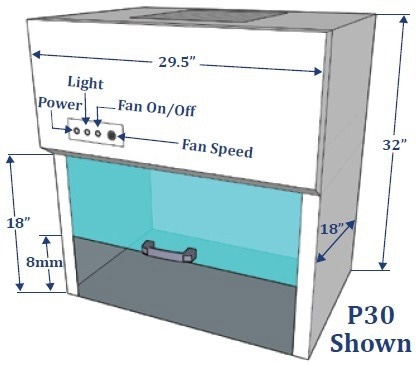

| Spec/Model |
200T P30 |
200T P36 |
200T P48 |
Outer Dimensions
(W x D x H) |
29.5” x 18” x 32” |
36” x 18” x 32” |
48” x 18” x 32” |
Workspace
(W x D x H) |
28.7” x 16” x 16” |
34.6” x 16” x 16” |
46.4” x 16” x 16” |
| Operational Sash Opening |
8” |
8” |
8” |
| Equipment Entry Opening |
18” |
18” |
18” |
| Air Velocity |
100 ± 20 FPM |
100 ± 20 FPM |
100 ± 20 FPM |
| Hood Material |
Welded white polypropylene structure with built-in sealed polypropylene worktop |
| Noise Level (Tested 8” from the worktable, 48” above ground) |
<60dB |
<60dB |
<60dB |
| Power Supply |
110V, 60Hz
Single Phase |
110V, 60Hz
Single Phase |
110V, 60Hz
Single Phase |
| Illumination |
Eco-friendly LED lighting |
Eco-friendly LED lighting |
Eco-friendly LED lighting |
Filters
Carbon
HEPA |
200F CR30P
200F HP30P |
200F CR36P
200F HP36P |
200F CR48P
200F HP48P |
| Carbon Filter Size & Weight |
25.6” x 12” x 2.75”
14.3 lbs |
31.5” x 12” x 2.75”
17.6 lbs |
43.3” x 12” x 2.75”
22 lbs |
| HEPA Filter Size & Weight |
25.6” x 12” x 2.75”
6.6 lbs |
31.5” x 12” x 2.75”
8.8 lbs |
43.3” x 12” x 2.75”
12.1 lbs |
| LED Light |
24” 20w |
24” 20w |
36” 30w |
| EC Fan |
175 mm |
175 mm |
225 mm |
