Carver Pellet Presses for Pellet, Brick, Briquette, and Cake Preparation

The self-contained AutoPellet press, available in 25- and 40-ton configurations, features 5" diameter platens and an integrated safety shield cabinet enclosing an electrically powered hydraulic system. Its sturdy slab side construction ensures precise alignment and includes a provision for connecting a vacuum line to the pellet die.

The AutoPellet presses are also equipped with a programmable control system capable of storing up to 10 recipes, including programmable decompression rates.

Image Credit: Carver, Inc.

Carver Pellet Dies are available in 6, 12, 13-, 25-, 31-, and 40-mm sample sizes (sold separately).

Specifications of the Bench Top Auto Pellet Press Model 3887NE.L and 4387NE.L

• 5” diameter work area
• Programmable setpoints for clamp force, dwell time, and ejection force
• 10-recipe storage capability
• Programmable in units of pounds
• Programmable decompression rates
• Interlocked safety enclosure with hinged door
• Available in 115 V-1 Ph or 230 V 1-Ph supply voltage upon request
• Electrical disconnect (non-fused)
• Dimensions: 32.5” L-R × 19.75” F-B × 22” min. to 28” max.H, including handle (uncrated)
• User’s choice of clamping force in 25 & 40 tons (minimum 1,000)
• Daylight Opening 1.5”–7.25”
• Stroke 1”
• Rugged slab-side construction
• Daylight adjustment wheel with swivel handle
• Self-contained hydraulic unit

Available Options

• Force Calibration Certificate using equipment traceable to NIST (part #1525.0001) [each]
• Floor stand 47” L-R × 22.5” F-B × 30"H Wt 280# (catalog #223219D)
• Floor stand 47” L-R × 22.5"F-B × 30"H W/6” Casters Wt 280# (catalog #223229C)
• 1/8 HP Vacuum pump (catalog #3874)
• Evacuable 6 mm Pellet Die Set (catalog #4417)
• Evacuable 12 mm Pellet Die Set (catalog #4946)
• Evacuable 13 mm Pellet Die Set (catalog #3619)
• Evacuable 25 mm Pellet Die Set (catalog #4369)
• Evacuable 31 mm Pellet Die Set (catalog #3902)
• Evacuable 40 mm Pellet Die Set (catalog #3876)
• Carver Special Hydraulic Fluid (Oil) (part #2170)
• Hydraulic Vent Valve (solenoid/cartridge valve & coil) (part #6315.19)
• UL/CUL Certified electrical panel available upon request as an option
• Spare parts kit (part #6315.17)
  • Three pints of hydraulic oil, push buttons, rod seal, polyseal, relays, and fuses

Calibration Options Available

For new equipment and gauges, force calibration (p/n 1525.00001) using instruments traceable to NIST is available.

Source: Carver, Inc.

Manual Bench Top Pellet Press Equipment from Carver, Inc.

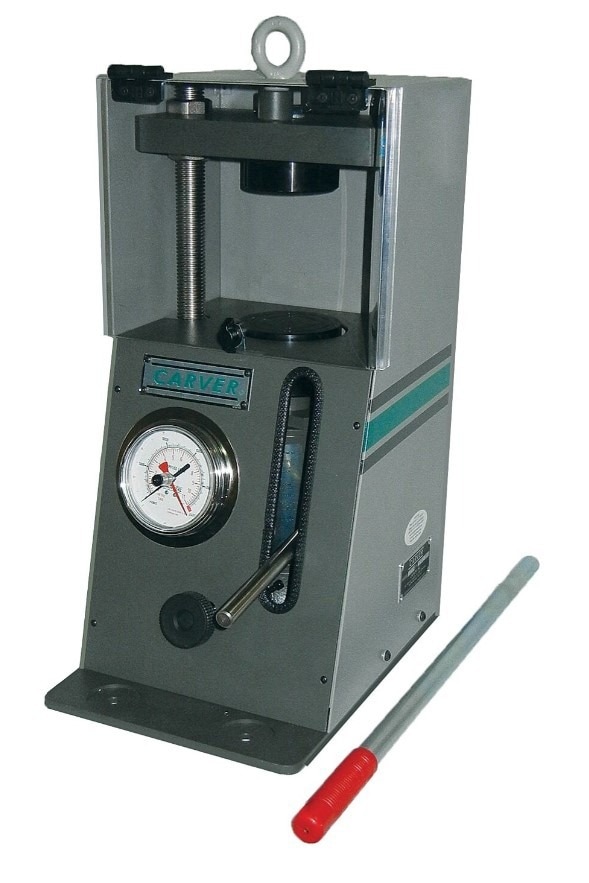

4350.L Shown with Analog Gauge	4555.L Shown with Analog Gauge	4565.L Shown with Digital Gauge

Pellet Models with an “L” means less die. Additional Pellet Die sizes are available for separate purchase. Image Credit: Carver, Inc.

Carver pellet presses are designed to compact homogeneous powder into usable pellet samples. The pellet dies are made of 440 stainless steel for corrosion resistance and have replaceable anvils. Each die comes with a pellet ejector.

The 12-ton press (Model 4350) includes a 13 mm die for IR sample preparation, while the 40 and 50-ton presses (Model 4555 & 4565) come with a 31mm die for X-Ray sample preparation. These presses are also available without the die, meaning that the customer can select what ever die suits them best.

Features

• Integral safety shields
• Evacuation port for connection to a vacuum source
• Oversize pressure gauge for ease of viewing
