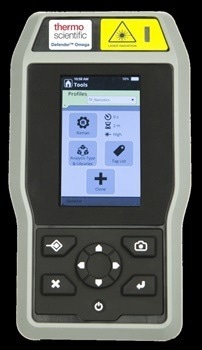

Thermo Scientific Defender™ Omega Handheld Raman Analyzer allows users to safely and quickly identify various chemicals, including explosives, drugs, and CWAs. This incredibly versatile handheld analyzer has expandable libraries and user-configurable scan profiles.
Specifications
Source: Thermo Fisher Scientific – Handheld Elemental & Radiation Detection
| . |
. |
| Battery Type |
Removeable and Lithium Ion, 7.2 V, 49 Wh, 4-hr run-time at 25 °C |
| Certifications/Compliance |
MIL-STD-810H, IP68 rated |
| Connections |
Wi-Fi and USB-C cable |
| Dimensions (L x W x H) |
24.1 x 11.7 x 5.6 cm (9.5 x 4.6 x 2.2 in.) |
| Includes |
5 MP digital camera, global positioning, WebUI |
| IP Rating |
IP68 |
| Laser Excitation Wavelength |
1064.25 nm ±0.5 nm, 2 cm-1 |
| Laser Output |
Adjustable 480 mW, 240 mW, 96 mW |
| Ocular Hazard Distance |
160 cm (63 in.) |
| Temperature Range (Metric) |
-20 °C to 50 °C |
| Weight (English) |
3.5 lb. |
| Weight (Metric) |
1.6 kg |
| Unit Size |
Each |
Product Overview
Law enforcement, the military, and customs officers never know what they will encounter on the field. The Defender™ Omega Handheld Raman Analyzer is a dependable handheld tool that aids users in identifying compounds utilized in producing explosives, nerve agents, narcotics, and various other chemicals. This analyzer encompasses all the essential elements necessary for chemical identification in critical security and safety scenarios.
User Safety
- Point-and-shoot, touchless scanning through clear plastic or glass eliminates the need for users to handle unknown materials.
- Informative results deliver an alert, warning, or other clear indication to assist users in making an immediate decision about what to do.
Accuracy
- For chemical identification, patented chemometric algorithms are more trustworthy when dealing with multicomponent mixtures and spectrally complex samples.
- Background fluorescence is effectively suppressed, enabling users to confidently identify substances through distinct spectral fingerprints utilizing 1064 nm optics.
User Flexibility
- The large touchscreen and illuminated keypad make it simple for users to enter data, even in dimly lit areas.
- Users of all skill levels can make decisions quickly using the two distinct scan modes (ID or Screener).
- The ability to accommodate user-generated libraries and adjust to changing risks
Comprehensive Libraries
- Expandable libraries are useful for identifying industrial chemicals, precursors, controlled substances, explosives, and chemical warfare agents.
- Users of customizable libraries can find specific materials.
- Regular library updates assist users in staying up to date on new dangers.
Solid Chain of Custody
- Time and place stamping is made possible by GPS and digital cameras.
- Data is kept secure and locked down with a unique user ID and password.
- User-generated metadata to facilitate a quick and straightforward search of past measurements
- Log helps users monitor who scanned what substances and when.
Built for Use in the Field
- Rechargeable and detachable batteries for portable power
- Wi-Fi access for data exchange
- WebUI (web user interface) for simple configuration
- IP68 rated watertight for defense against dust and water
- MIL-STD-81H durability rating
Service Plans
Thermo Fisher Scientific provides service plans to maximize output and optimize performance throughout the Defender™ Omega Handheld Raman Analyzer lifecycle.
Plans include exclusive service advantages such as:
- Reliability: Software and performance verifications
- Quality repairs: Depot and parts availability, with timely turnaround
- Convenience: Unlimited technical support and remote diagnostics
- Rapid response: Access to around-the-clock, reachback support
- Cost control: Budget predictability and avoidance of unexpected repair costs
