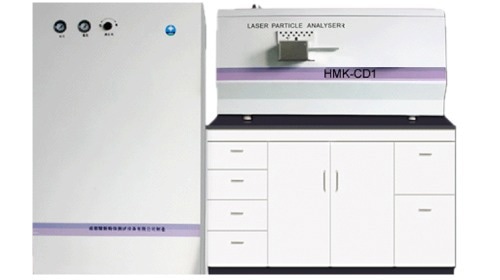

The HMK-CD1 is a new type of particle size analyzer that integrates both dry and wet tests. In addition to powder liquid solutions, the HMK-CD1 particle analyzer can test dry pharmaceuticals, magnetic powders, and emulsion particles. HMK-CD1 is a highly intelligent particle size analyzer that works quickly, is simple to use, and has a high level of reproducibility, making it an excellent choice for a variety of sectors.
HMK-CD1 is compatible with both liquid and dry dispersing systems:
- The dry system consists of a host, auxiliary equipment (vacuum, waste powder collecting can, air purification tank), and a silent air compressor
- The liquid system incorporates ultrasonic dispersion, mechanical agitation, circulation, etc.
- Simply click the mouse to switch between liquid and dry without manually replacing the device, ensuring precision and repeatability.
Specifications
Source: AIMSIZER SCIENTIFIC PTE.LTD.
| . |
. |
| Principle |
Full course Mie scattering theory comply with ISO 13320 |
| Measuring range |
Wet: 0.01～3,000 µm/dry: 0.01-3000 µm |
| D50 error range <±3％ (National Certified Reference Material) |
| Light source |
Laser diode 632.8 nm 3 mw >20,000 h |
| Light path |
Parallel light path design comply with ISO13320 and ISO13321 |
| Test course |
Full course without any shift during test |
| Detector |
Multi-element-silicon detector |
| 128 photo cells arranged in 3-D position maximize the detection angel up to 165° |
| Test Method: Wet and Dry Measurement |
Dry: Put the sample in the dry tank and click on dry test, the unit automatically open/close the air supply, test, collect sample, whole operation finishes under computer control within 2 minutes. |
| Wet: Click on liquid test, the liquid tank is filled up automatically, the system prompt feeding powder, add about 1 gram of powder into the liquid cell, the dispersion, agitation, circulation and cleaning finish under computer control within 2 minutes. |
| Dispersion |
Dry: Unique vacuuming device (patented) done by cooperation of compressor and vacuum, short dispersing time. |
| Wet: Ultrasonic, agitator and sample cell are integrated, compact design, short dispersion time |
| Agent |
Dry: Air |
| Wet: Tap water, distilled water or other specified agent |
| Sample weight |
Variable suspension volume with the wet dispersion unit |
| 1 gram or up to scores of grams dependent on the sample property and size |
| Test software |
Windows |
| Result output |
Table and curve of particle size distribution, D10, D50, D90, D97, averaged particle size and specific surface area. etc |
| Power |
AC 220 V 50 Hz / 110 V 60 Hz |
| Environment |
Clean, temperature 0-40 ℃ |
| Configuration |
- HMK-CD1(Liquid and dry shifting device, liquid circulating and feeding device 1 set
- Auxiliary equipment(vacuum system and waste sample collecting system, air purification tank 1 set
- Oil-free air compressor (power 0.75 Displacement 152 L/min）1 set
- Special analysis software 1 set
- Power supply cable and data cable 1 set
- Certified Reference Material 3 set
- Tool kit 1 set
- User's Manual and documents 1 set
|
Applications
Mica, barite, aluminum, iron, magnesium, molybdenum powder, copper powder, zinc Dry powder or emulsion particle size distribution analysis for Ferrite, NdFeB, hard magnetic powder, soft magnetic powder, cement, cobalt powder, electronic materials, pesticides, pigments, pharmaceuticals, ceramics, cosmetics, paint and coating, food, calcium carbonate, talc, kaolin, alumina, rare earth, catalyst, blowing agent, refractory material, graphite, and so on.
