Organizations can perform immediate, non-invasive analyses with the Thermo ScientificTM MarqMetrixTM All-in-One Process Raman Analyzer, without the need for prior sample preparation. This system simplifies workflows through fast, accurate Raman measurements and features intuitive one-button hardware and user-friendly software.
The device is ready to use straight out of the box and delivers highly precise Raman measurements in under 15 minutes.
Housed in a durable, portable case, the analyzer can be easily transported to where it’s needed. Factory calibration ensures reliable, continuous analysis. Additionally, the system can be seamlessly integrated into existing workflows without requiring specialized technical expertise.
Video Credit: Thermo Fisher Scientific
Download the Brochure for More Information
Features of the MarqMetrix All-in-One Process Raman Analyzer:
- Compact size for a comfortable deployment
- Easy to set up and deploy by non-Raman spectroscopists
- Factory calibration for hardware stability and portability
- Non-invasive - Decreases sample contamination
- Non-destructive - Preserves valuable samples
- Analysis without sample preparation to deliver Raman spectral outcomes in real-time

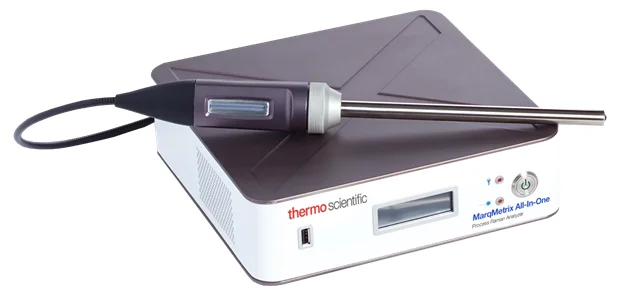

Image Credit: Thermo Fisher Scientific
Flexibility to Meet User Needs
With a variety of compatible probes available, the MarqMetrix All-in-One Process Raman Analyzer can be easily integrated into a wide range of applications.
Application Versatility
The MarqMetrix All-in-One Process Raman Analyzer is well-suited for applications involving Process Analytical Technology (PAT).
Process Analysis and Control
The MarqMetrix BallProbesTM and All-in-One Process Raman Analyzer provide precise compositional measurements. They are perfect tools for monitoring, controlling, and characterizing real-time operations.
Download the Brochure for More Information
Specifications
Source: Thermo Fisher Scientific
| . |
. |
| Display |
Digital |
| Certifications/Compliance |
Laser Certification: Class 3B laser device reported to the FDA |
| Dark Noise |
≤16.5 counts at 10 sec. integration |
| Depth (Metric) |
25 cm |
| Detector |
Thermally stabilized CCD (2-stage TEC) |
| Fiber Conditions |
FC/PC (Both excitation and collection) |
| Height (Metric) |
7.7 cm |
| Hertz |
50/60 Hz |
| Includes |
Wireless mouse, HDMI cable, monitor |
| Laser Excitation Wavelength |
785 nm, Excitation power: 10 to 450 mW |
| Operating Systems |
Software: MarqMetrix Raman suite Controller: Integrated PC (Windows 10 OS) |
| Ports |
1RJ-45 Ethernet port 3 USB 3.0 |
| Safety Features |
1 keyed Laser interlock switch, Electronic laser trigger |
| Spectral Range |
100 to 3250 cm-1 |
| Spectral Resolution |
6.5 cm-1 average across the spectral range |
| Temperature Range (Metric) |
15 °C to 33 °C |
| Video Output |
1 Display port 1.1 (VGA, DVI, or HDMI with adaptor) |
| Width (Metric) |
25 cm |
| Unit Size |
Each |
