Mar 27 2013

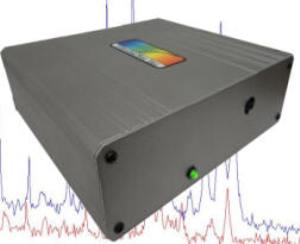

StellarNet has released a series of portable Raman spectrometers that utilize InGaAs detectors to capture NIR spectra induced by 1064nm lasers. Sample fluorescence is avoided while the SpectraWiz software enables quick identification of liquids, powders, or solids.
Fluorescence interference is problematic with 830nm, 785nm and lower frequency lasers especially with organic materials. Silicon CCD detectors get saturated and bloom preventing Raman spectra from being be extracted.
Our high resolution model (Raman-HR-TEC-IG) achieves 8cm-1 resolution with 1024 element PDA detector, while our standard resolution instrument achieves 16cm-1 and has a 512 PDA. Both instruments have integrated 2 stage TEC (Thermo Electric Coolers). These instruments have no moving parts and are permanently aligned for shock-proof durability. SMA-905 optical input to spectrometer allows attachment of Raman probes or fiber optic sample accessories.
As with all StellarNet spectrometers, the instruments are extremely ruggedized and compact for portable lab and field applications. Each has a PC interface via USB2 cable for power and data and includes +5VDC adapter for TEC cooler - battery pack option available for TEC.
StellarNet offers additional Raman spectrometers and lasers configured for 532 / 647 / 785 / 830nm. Contact a StellarNet sales representative today with your requirements.
View Raman Webpage http://www.stellarnet.us/PopularConfigurations_ramansystems.htm
