With more than 1.7 million units sold, the NEF engine family can be defined as one of FPT Industrial’s best sellers. And N45 Stage V and N67 Stage V have been chosen by Case IH for its new products. The Versum CVXDrive and Optum 300 CVXDrive are equipped with FPT Industrial propulsions. As such, the agricultural professionals can count on reliable engines with high performance for their important daily activities - whether they be livestock operations, tillage, haulage or planting.
N45 Stage V and N67 Stage V are not just high-performing and reliable, but also environmental-friendly. With HI-eSCR2, the FPT Industrial patented after-treatment system, the engines guarantee Stage V compliance, while enabling them to remain maintenance-free, with low-operating costs and high performance.
Case IH is displaying Versum CVXDrive and Optum 300 CVXDrive at SIMA 2019 (Stand E002 in Hall 5A), Europe’s premier agricultural equipment exhibition. Held at France’s Paris-Nord Villepinte convention center from February 24th - 28th, the Paris International Agribusiness Show will showcase products from nearly 1,800 suppliers and host 232,000 visitors from 135 countries. Also displayed on the Case IH stand is the Maxxum series - awarded Tractor of the Year 2019 – which is equipped with FPT Industrial N67 Stage IV engines.
N45 Stage V for Versum CVXDrive – Tough, dependable comfort

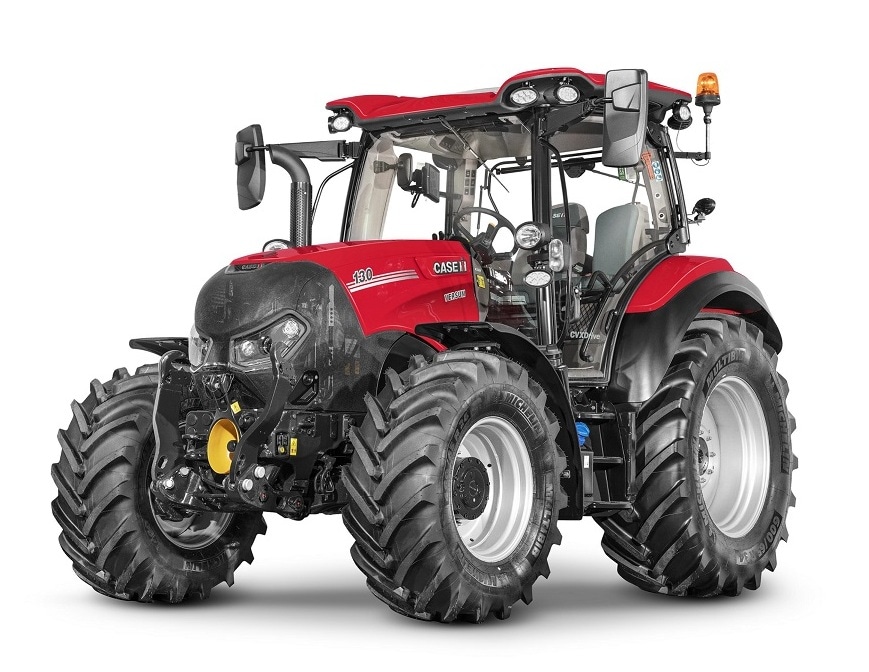

The Case IH Versum CVXDrive
The Versum CVXDrive performance is guaranteed by the N45 Stage V engine. The tractor is available in four power ratings, 100, 110, 120 and 130, each model number representing the tractor’s horsepower rating at an engine speed of 2,200 rpm, and each with a European Stage V-compliant HI-eSCR2 4.5-liter turbocharged and intercooled engine.
The ATS pack on the N45 Stage V has been specifically designed to fit under the tractor bonnet and visitors to SIMA can appreciate the innovative solution mock up on the Case IH stand.

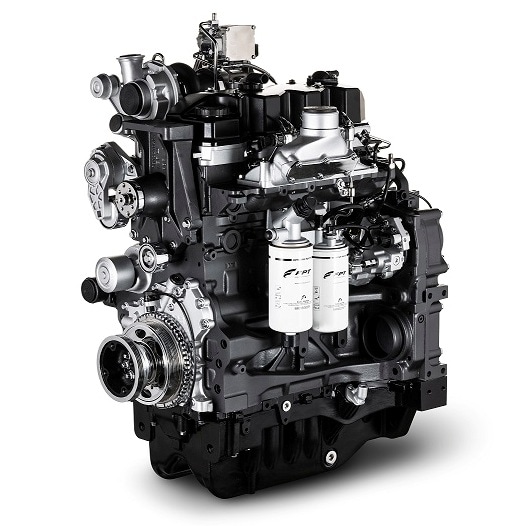

The FPT Industrial N45 Stage V engine
N45 Stage V Specifications for Versum CVXDrive
| Architecture: |
In-Line 4-cylinder engine |
| Injection System: |
Common rail (up to 1,600 bar) |
| Air Handling: |
Wastegate Turbocharger |
| Valves per cylinder (number): |
4 |
| Displacement (l): |
4.5 |
| Bore x Stroke (mm): |
104 x 132 |
| Max Power: |
103kW (140hp) @ 1800 rpm |
| Max Torque: |
630Nm @ 1300 rpm |
| EGR: |
NO |
| ATS: |
HI-eSCR2 |
N67 Stage V for Optum 300 CVXDrive – Efficient power

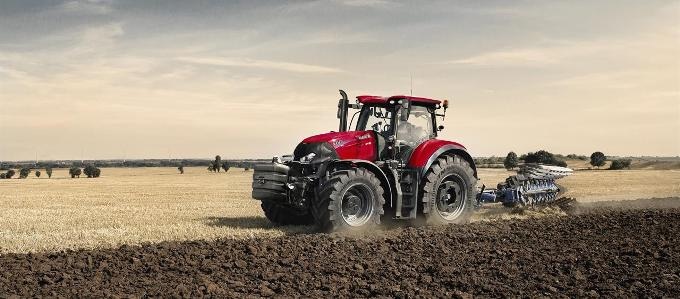

The Case IH Optum 300 CVXDrive
The Case IH Optum 300 CVXDrive mounts an FPT Industrial 6.7-liter N67 Stage V engine, which boasts an impressive maximum power of 313 hp, ensuring fuel efficiency, high power and quick load response. All of these features make the Optum 300 CVXDrive the ideal solution for tillage and all the heavy open-field operations.

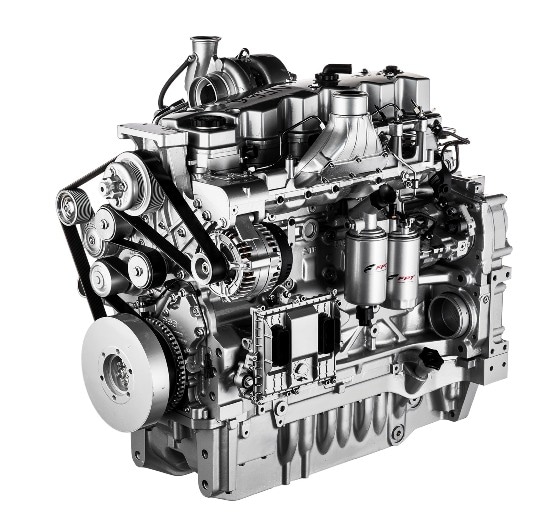

The FPT Industrial N67 Stage V engine
N67 Stage V Specifications for Optum 300 CVXDrive
| Architecture: |
In-Line 6-cylinder engine |
| Injection System: |
Common rail (up to 1,600 bar) |
| Air Handling: |
eVGT |
| Valves per cylinder (number): |
4 |
| Displacement (l): |
6.7 |
| Bore x Stroke (mm): |
104 x 132 |
| Max Power (kW/hp): |
230kW (313hp) @ 1800 rpm |
| Max Torque (Nm): |
1282Nm @ 1400 rpm |
| Oil Service Interval (h): |
750 |
| EGR: |
NO |
| ATS: |
HI-eSCR2 |
