Lightweight oval gear flowmeter for F1 racing cars
High pressure flowmeters from Titan Enterprises have, over the last decade, been widely used in the hydraulic test systems of F1 racing cars to measure fluid flow. A high-performance engine company also uses Titan flow meters to monitor the oil flow lubricating its turbo units on the test bench.
Formula 1 engines typically have no cooling fans and therefore need to reliably run at temperatures in excess of 200°C. Measuring the high flow of coolant water at these elevated temperatures, without causing an undue pressure drop in the system, is another example of an automotive flow measurement development undertaken by Titan. Using the inherent very low pressure drop of their Oval gear flow meter design – Titan produced a 200°C, 50 L/minute flow meter with a pressure drop of less than 100mBar to solve this challenging application.

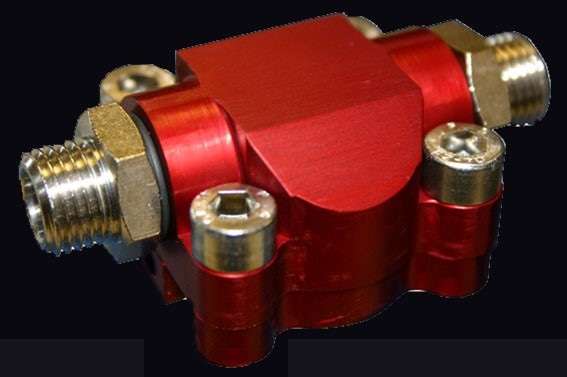

A few years ago, one racing team turned to Titan as it did not trust the fuel flow figures being returned from their engine suppliers fuel management systems. For this application a very lightweight oval gear flowmeter was designed to be installed safely in the fuel tank of the racing car. Designed to be immune to immersion in fuel and the very noisy electrical environment of a racing car. this flowmeter has provided accurate flow measurement over an extended period of time.
In addition, a growing number of engine and car manufacturing companies have benefited from using Titan's Atrato ultrasonic flowmeter for both diesel and petrol measurement on test stands and in engine development. Because the Atrato does not have a contorted flow path. and fuel passes straight through the flowmeter. it can uniquely operate at the same bore as the fuel lines. This reduces the pressure loss and keeps “dead” fuel volume to a minimum.
