AAEON, a leader in industrial IoT and AI Edge solutions, has released the uCOM-ADN, a SMARC module powered by Intel® Atom® x7425E, Intel® Processor N97, and Intel® Core™ i3-N305 processors.

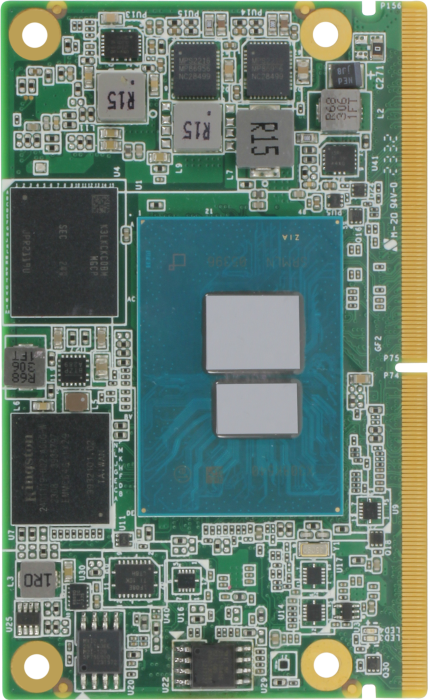

Image Credit: AAEON
The uCOM-ADN represents the revival of AAEON’s involvement in the SMARC module sphere, where it is clear that the company’s extensive experience in creating reliable and high-performance Computer-on-Modules has proven invaluable. A standout feature of its newest offering is the uCOM-ADN’s support for the 8 core, 8 thread Intel® Core™ i3-N305 Processor, which merges high performance with efficient operation. The product also supports Intel Atom® x7425E and Intel® Processor N97 from the broader Intel® platform, giving users more flexibility.
Featuring up to 8 GB of onboard LPDDR5x memory and 64 GB of eMMC storage, the uCOM-ADN can achieve excellent data processing speed while providing ample storage capacity. Integrated Intel® UHD Graphics also lends itself to applications requiring quality visual output, emphasized by two DP++ and one eDP interface at resolutions up to 3840 x 2160. This selection makes the uCOM-ADN well-suited to digital signage and smart kiosk solutions.
For visual data acquisition, users have a broad range of interfaces to choose from, including two MIPI CSI, multiple USB, and dual LAN connectors supporting Intel® Ethernet Controllers I226-V or I226-IT, both running at 2.5GbE. For industrial communication, the module offers several UART interfaces alongside a customizable 7-bit GPIO and SMBus. Expansion can be found in three PCIe Gen 3 slots, while AAEON notes that a fourth PCIe Gen 3 interface is available upon request.
Of particular note is the module’s rugged design, which has a default operating temperature range of -20 °C ~ to 70 °C. An extended temperature SKU also available boasts a -40 °C to 85 °C temperature tolerance. This will be good news for those seeking a solution that can withstand challenging industrial environments while maintaining optimal performance.
The inclusion of TPM 2.0 also ensures robust security for critical applications, further lending credence to the uCOM-ADN’s industrial suitability. Support for both Windows® 10, Windows® 11 Enterprise, and Linux Ubuntu 22.04.2/Kernel 5.19 grants the uCOM-ADN broad OS compatibility, making it easy to integrate into existing systems.
