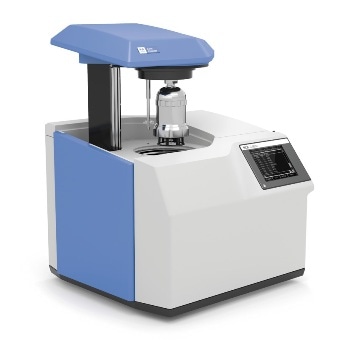

The C 6000 global standards oxygen bomb calorimeter is a combination of modern technology, variability and automation (adiabatic, isoperibol; dynamic modes) in a single instrument. It operates based on all bomb calorimeter standards, such as, for example, the DIN, ASTM, GOST, ISO and GB. The operator can choose between three different starting temperatures (22 ºC, 30 ºC, 25 ºC) in each measuring mode: adiabatic, dynamic or isoperibol. Due to the spherically shaped decomposition vessel head, it was possible to reduce the wall thickness, allowing for faster heat transfer resulting in a shorter time measurement. Due to the wide range of interfaces (PC, Ethernet, balance, SD card, printer) this unit is effortlessly adaptable based on the customer's specific application requirements. Further adaption to LIMS and data management is possible with the calorimeter software C 6040 Calvin (Accessory).
- Automatic ignition
- Automatic water filling and draining
- Automatic oxygen filling, flushing and venting
- RFID technology for automatic decomposition vessel identification
- New design of the decomposition vessel allows for easier and faster sample preparation
- Can be operated with a chiller
- Convenient and easy touch screen operation
- Control chart view and correction calculation of globally used standards
- Ethernet interface for data management via FTP server or connection of a network printer
- Removable SD card allows for easier data measurement management, in addition to software updates
The C 6000 global standards Package 1/12 consists of:
- C 6000 global standards
- RC 2 basic Cooling water supply
- C 6012 Decomposition vessel, halogen resistant
Specifications
| Technical Data |
| Measuring range max. [J] |
40000 |
| Measuring mode adiabatic 22 °C |
yes |
| Measuring mode dynamic 22 °C |
yes |
| Measuring mode isoperibol 22 °C |
yes |
| Measuring mode adiabatic 25 °C |
yes |
| Measuring mode dynamic 25 °C |
yes |
| Measuring mode isoperibol 25 °C |
yes |
| Measuring mode adiabatic 30 °C |
yes |
| Measuring mode dynamic 30 °C |
yes |
| Measuring mode isoperibol 30 °C |
yes |
| Measurements/h adiabatic |
5 |
| Measurements/h dynamic |
6 |
| Measurements/h isoperibol |
4 |
| Reproducibility adiabatic (1 g benzoic acid NBS39i) [%RSD] |
0.05 |
| Reproducibility dynamic (1 g benzoic acid NBS39i) [%RSD] |
0.15 |
| Reproducibility isoperibol (1 g benzoic acid NBS39i) [%RSD] |
0.05 |
| Touchscreen |
yes |
| Working temperature [°C] |
22 - 30 |
| Temperature measurement resolution [K] |
0.0001 |
| Cooling medium temperature [°C] |
12 - 27 |
| Cooling medium permissible operating pressure [bar] |
1.5 |
| Cooling medium |
tap water |
| Type of cooling |
flow |
| Chiller |
KV600NR |
| Flow rate [l/h] |
60 - 70 |
| Rec. flow rate at 18 °C [l/h] |
60 |
| Oxygen operating pressure max. [bar] |
40 |
| Interface scale |
RS232 |
| Interface printer |
USB |
| Interface PC |
RS232 |
| Interface test rack |
yes |
| Interface ext. keyboard |
yes |
| Oxygen filling |
yes |
| Degasification |
yes |
| Decomposition detection |
yes |
| Decomposition vessel C 6012 |
yes |
| Analysis according to DIN 51900 |
yes |
| Analysis according to DIN EN ISO 1716 |
yes |
| Analysis according to DIN EN ISO 9831 |
yes |
| Analysis according to DIN EN 15170 |
yes |
| Analysis according to DIN CEN TS 14918 |
yes |
| Analysis according to ASTM D240 |
yes |
| Analysis according to ASTM D4809 |
yes |
| Analysis according to ASTM D5865 |
yes |
| Analysis according to ASTM E711 |
yes |
| Analysis according to ISO 1928 |
yes |
| Analysis according to GB T213 |
yes |
| Dimensions (W x H x D) [mm] |
500 x 425 x 450 |
| Weight [kg] |
29 |
| Permissible ambient temperature [°C] |
20 - 30 |
| Permissible relative humidity [%] |
80 |
| Protection class according to DIN EN 60529 |
IP 20 |
| RS 232 interface |
yes |
| USB interface |
yes |
| Voltage [V] |
220 - 240 / 100 - 120 |
| Frequency [Hz] |
50/60 |
| Power input [W] |
1700 |
| Ident. No. |
0010000564 |
Accessories
C 6040 CalWin, C 6010 Decomposition vessel, standard, C 5041.10 Connection cable, C 6012 Decomposition vessel, halogen resistant, C 1.50 Dot matrix printer, C 6030 Venting station, C 60.1012 Organizer, C 6000.10 Set of spare parts, C 6000.12 Set of spare parts, C 1.103 Ignition wire, C 1.123 Ignition wire platinum, C 27 Calorimeter preparation set, C 29 Pressure gauge, oxygen, C 21 Pelleting press, C 5010.8 Crucible holder small, C 5010.5 Crucible holder big, C 25 Pressure regulating valve, C 5020 Sample rack, C 710.4 Cotton thread, cut to length, C 710.8 Cotton thread, C 4 Quartz dish, C 5 Set of VA combustion crucibles, C 6 Quartz crucible, big, C 710.2 Set of VA combustion crucibles, C 9 Gelatin capsules, C 10 Acetobutyrate capsules, C 12 Combustion bags 40 x 35 mm, C 12 A Combustion bags 70 x 35 mm, C 15 Paraffin strips, C 16 Parafilm, C 17 Paraffin, C 43 Benzoic acid NBS 39i, C 723 Benzoic acid, blister package, AOD 1.11 Control standard, AOD 1.12 Control standard, C 723 Benzoic acid BIG Package, C 6000.1 Water protect, 100 ml.
