Clarion™-96 well–Gel Filtration Plates for High-throughput Desalting

Need more information?

Let us help you with your inquiries, brochures and pricing requirements

Request A Quote
Download PDF Copy

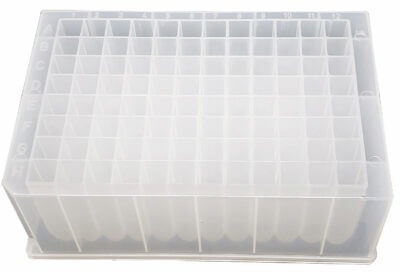

Clarion-96 Gel Filtration plates are utilized for high-throughput desalting and removing small molecular weight impurities through centrifugation with a swinging bucket rotor.

Using a two- to three-minute centrifugation technique, proteins, oligos, or nanoparticles are concurrently purified, desalted, and eluted into clean water.

Clarion-96 Gel Filtration Plates Features:

Each gel bed is supported on an individual ultra-high molecular weight PE filter membrane with a pore size of 25 microns
Hydrated with sterile purified water without preservatives, salts, or buffers
Precision filled with SorbaDex^™, a beaded composite material comprised of ultrapure cross-linked dextran
The filtration plate is made from sterile medical-grade polypropylene, supplied ready-to-use
Well volumes available from 140 to 1000 µL, sample volume capacity from 10 to 40 µL
Available in both 96 and 384 ANSI-SBS standard format

Specifications

Source: Sorbent Technologies, Inc.

Catalog#	# Wells	Well Vol.	Plate Height	Max Sample Vol.	Gel Bed Vol.	Matrix	Drip Directors	For Proteins/Nucleic Acids Greater Than	Mode of Operation
Clarion™ 384-135LD50 Gel_Filtration Plate 135 μL Well Volume
802009	384	140 µL	15 mm	10 µL	100 µL	S50-SF	Long	25 kD/20 bases	Centrifuge 3 minutes at 1000xG
Clarion™ 96-400SD50 Gel_Filtration Plate 400 μL Well Volume
802002	96	400 µL	20 mm	20 µL	320 µL	S50-SF	Short	25 kD/20 bases	Centrifuge 3 minutes at 1000xG
Clarion™ 96-400LD50 Gel_Filtration Plate 400 μL Well Volume
802003	96	400 µL	20 mm	20 µL	320 µL	S50-SF	Long	25 kD/20 bases	Centrifuge 3 minutes at 1000xG
Clarion™ 96-800SD50 Gel_Filtration Plate 800 μL Well Volume
802004	96	800 µL	31 mm	30 µL	400 µL	S50-SF	Short	25 kD/20 bases	Centrifuge 3 minutes at 1000xG
Clarion™ 96-800SD25 Gel_Filtration Plate 800 μL Well Volume
802005	96	800 µL	31 mm	30 µL	400 µL	S25-SF	Short	5 kD/10 bases	Centrifuge 3 minutes at 1000xG
Clarion™ 96 Gel_Filtration Plate 1000 μL Well Volume
802007	96	1000 µL	38 mm	40 µL	650 µL	S50-SF	Long	25 kD/20 bases	Centrifuge 3 minutes at 1000xG
