Properties of Iron Azobenzene Tetracarboxylic, Porous [PCN-250(Fe)]

Metal-organic frameworks, also known as MOFs, are based on coordination bonds, which are usually less stable when compared to covalently bonded materials.^1-4 Hence, it is a critical challenge to overcome the stability of MOFs.^5-15 Stronger MOFs are resistant to moisture, have a high gas storage capacity, and also have an ability to be scaled up easily. These properties make them more appropriate for commercial sale. However, the manufacturing process of these MOFs presents a major problem because these materials were produced using “one-pot” synthesis which cannot be easily controlled.¹⁶

In order to mitigate this challenge, a new method based on thermodynamic and kinetic control of MOF crystallization has been applied to produce Fe-MOF single crystals with pre-synthesized metal building blocks [Fe₂M(μ₃-O)(CH₃COO)₆] (M=Fe^2+,3+, Co²⁺, Ni²⁺, Mn²⁺, Zn²⁺). Among the MOFs synthesized was the PCN-250, which has demonstrated a high total CH₄ uptake of 200 V STP/V at 35 bar and 298 K and a high total H₂ volumetric uptake of 60 g L^-1 at 40 bar and 77 K.^17,18

High Volumetric Gas Uptake

The structure of the PCN-250 is responsible for its high methane uptake and represents a key feature of this material.¹⁸ A performance plot of PCN-250’s deliverable capacities is shown in Figure 1. PCN-250 can serve as an excellent absorbent for methane storage, provided a pressure range between 1 and 35 bar is used with the highest methane loading at 35 bar (298 K and 200 v/v). Due to the high crystal density of the MOFs, PCN-250 has a record-high H₂ uptake of 28 g L^-1 and 3.07 wt% at 1.2 bar and 77 K and also a total volumetric H₂ uptake of 60 g L^-1 at high pressure.

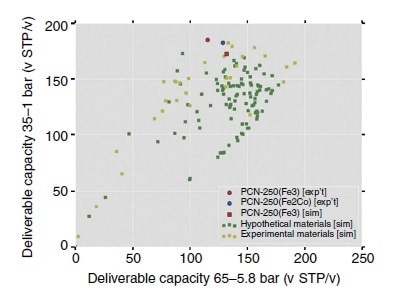

Figure 1. Performance plot of deliverable capacities using two different pressure swings. Shown are the predictions for the Fe-MOFs synthesized here (yellow) and in silico-predicted structures (green). Red and blue points show PCN-250.

Figure 2 shows how each side of the cubes in PCN-250 is covered with charged open metal sites by the ligand, with the sites stationed around the channels between each cube. This enables the interspace to be available for adsorption of gas, which in the PCN-250 product has a strong interaction with both CH₄ and H₂ molecules. Additionally, a highly efficient utilization of space for increased uptake of volumetric gas can be realized by inducing polarization of gas molecules via charge-induced dipole interaction.

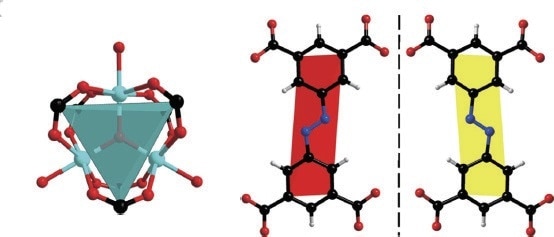

Figure 2. Structures of PCN-250

Chemical Stability of PCN-250

Studies have demonstrated that PCN-250’s chemical stability remains intact even if a single iron atom is replaced for a softer Lewis acid metal, M(II), in the μ₃-oxo cluster. The PCN-250 continues to be intact in different pH values ranging from 1 to 11 over a 24-hour period. It was also observed that PCN-250 continued to be strong in H₂O after a period of 6 months in neutral conditions. Following multiple pH treatments, no major change was observed in the N₂ adsorption isotherms of the material, causing researchers to conclude that phase transition or MOF decomposition did not take place.

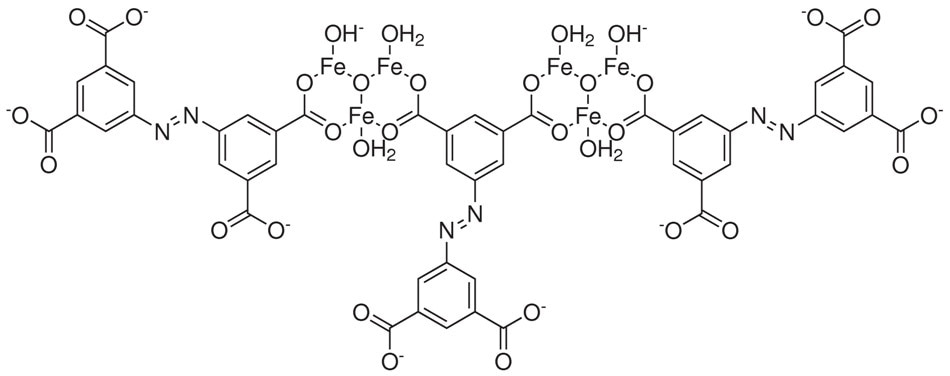

Figure 3. Structure drawing of PCN-250

The high gas uptake and excellent scalability and stability of the PCN-250 make it a propitious material for storing natural gas for a variety of applications such as gas purification and power systems.

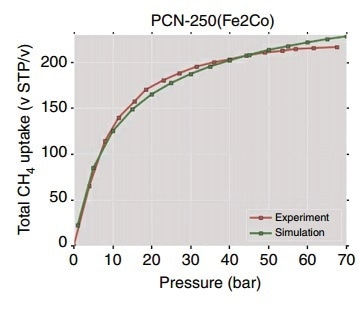

Figure 4. Total CH₄ adsorption uptake of PCN-250 at 298 K

Key Properties

• Form and color: dark red-brown powder
• Stable in aqueous and water solutions
• Excellent uptake of methane and hydrogen
