In this interview, Technetics explores the exciting world of spring-energized and magnetic mechanical seals and their applications.
Image Credit: Technetics
What is meant by spring-energized mechanical seals?
Aaron:

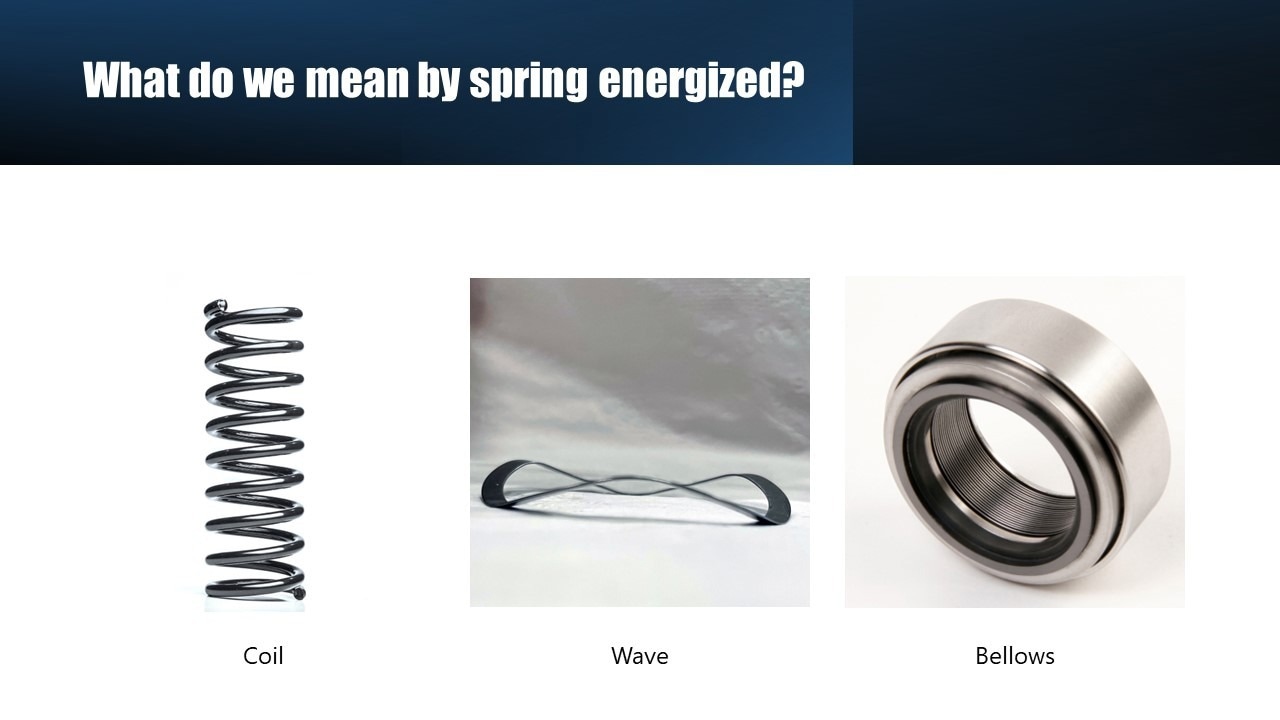

A spring-energized mechanical seal refers to the force used to maintain the seal face and the mating ring in close contact, which is supplied by a mechanical spring device. This device can be a wave spring, a coil spring, or a metal bellows. Occasionally, you may encounter the term "spring-energized seals" when referring to a secondary seal with a Teflon jacket. However, we specifically address the mechanical spring's role in providing the closing force for this discussion.
Image Credit: Technetics
Let's discuss magnetic mechanical seals for a moment. Why might someone consider replacing this type of mechanical seal?
Aaron:
We often hear installation-related concerns from our customers, where it is challenging to handle and maintain the parts together, and they are susceptible to damage with magnetic seals. In contrast, spring-energized seals are more forgiving in such conditions, as the faces can be separated.
Another common issue raised by our customers pertains to performance, specifically regarding the restoring force and temperature limitations. The yield of the process for producing magnetic faces tends to be low, leading to potential delays in on-time delivery, quality control problems, and supply limitations, which can significantly impact the supply chain.
Jason:
To summarize, these are the recurring issues our customers frequently encounter when using magnetic mechanical seals. They often face challenges in handling the components, as failure to keep the two faces together can result in damage. Performance problems are prevalent.
Yield problems, particularly with the magnet component, give rise to various issues, including supply continuity problems. Additionally, the limited availability of manufacturers for these seals compounds the difficulties for our customers.
What challenges do customers face or perhaps perceive when replacing a magnetic seal with something like a spring-energized mechanical seal?
Aaron:
The primary challenge we often hear from our customers is that they lack the space necessary to accommodate a spring-energized mechanical seal.
How does Technetics typically address these actual or perceived challenges, particularly regarding space?
Aaron:
We have successfully collaborated with numerous customers to replace a magnetic seal with a spring-energized mechanical seal, ensuring it fits within their existing envelope and constraints. This process has been accomplished without encountering significant technical obstacles, and we have succeeded in these applications.
Technetics has an extensive pedigree with its Qualiseal mechanical seals. However, can you provide insights into Technetics' experience in replacing magnetic seals with alternatives such as spring-energized mechanical seals?
Aaron:
We possess extensive experience in replacing these types of seals on aerospace gearboxes and accessory pads that serve various end applications, including helicopters, commercial aircraft, and military aircraft.
Jason:
Additionally, I would like to mention that we have successfully executed upgrade projects of this nature in the past. Such projects include the replacement of a magnetic seal that entered into service in 2018. The upgraded spring-energized mechanical seal has demonstrated flawless performance, even in a high-running commercial application.
Image Credit: Technetics
Considering the distinctions between a spring-energized mechanical seal and a magnetic mechanical seal, could you clarify the dissimilarities in the behaviors of the spring and the magnet used in these seals?
Aaron:
One of the primary disparities between a spring-energized mechanical seal and a magnetic seal is the behavior of the closing force supplied by the spring or the magnet. The closing force, responsible for keeping the seal faces together, is furnished by the spring in applications with low delta-P or low-pressure differentials.
In a mechanical spring-energized seal, this force exhibits a linear relationship with the spring constant and displacement. For instance, the force is doubled if you reduce the spring's distance by half. In contrast, the magnetic force in a magnetic seal adheres to an inverse square law. For instance, if you double the distance between the faces, the force diminishes by a factor of four.
Can you explain restoring force and its importance in a mechanical seal?
Aaron:

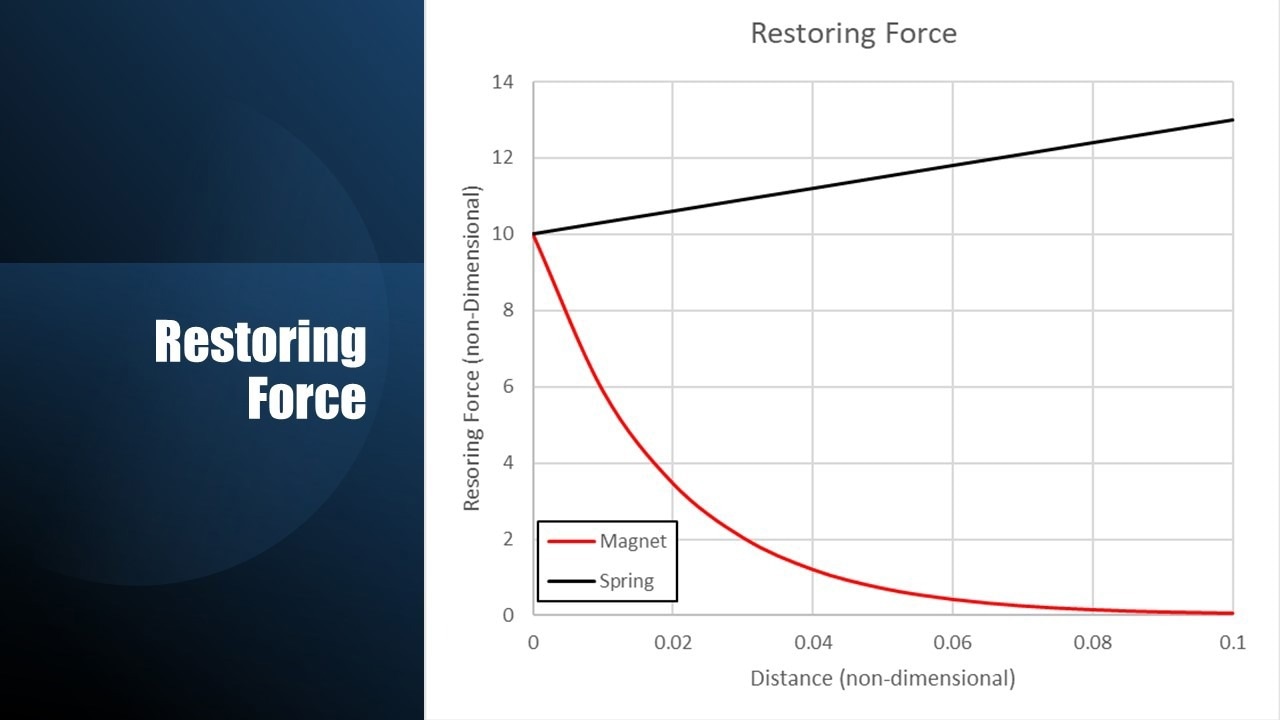

The term “restoring force” in the context of a mechanical seal refers to the force responsible for closing or bringing the sealing faces back together. In various applications, factors like runout, vibration, or maneuver loads may momentarily cause these sealing faces to separate. The spring constant of a spring-energized mechanical seal plays a crucial role, as it establishes a linear relationship with the distance by which the faces separate.
As a result, the force aiming to return the faces to their normal operating position increases proportionally to the degree of separation. In contrast, when dealing with a magnetic seal, the restoring force diminishes according to the inverse square law as the faces move apart, diminishing with the square of the distance.
Image Credit: Technetics
The materials used in a spring-energized mechanical seal and a magnetic seal differ significantly, which plays a crucial role in performance differentiation. Could you please discuss how these materials vary and explain their significance?
Aaron:
In the case of a spring-energized mechanical seal, we enjoy a wide array of material options, allowing us to select based on the seal configuration and operational conditions. We can opt for materials with exceptional temperature resistance, capable of withstanding temperatures of nearly 1,000 degrees Fahrenheit or even lower temperature ranges in cryogenic environments. Essentially, there are very few limitations on our material choices.
When dealing with a magnetic seal, the material options are more restricted. This constraint arises from the need for a permanent magnet with high magnetic flux, which tends to exhibit temperature limitations. In high-temperature settings, these materials lose their magnetic properties.
We make design compromises that affect the mating materials' hardness and porosity, which are the wear components. One approach to mitigate these challenges is using multi-piece mating rings and seals, which introduces complexity to the overall system design.
The handling of a magnetic seal can often be problematic. Could you please explain why this may be an issue?
Aaron:
When it comes to a mechanical spring-energized seal, we typically refer to the stator part as the seal and the rotating part as the mating ring. During the assembly process, these two components do not need to maintain close contact with each other. You can install the seal in a housing and the mating ring onto a shaft as separate assemblies, bringing them together later.
However, when dealing with a mechanical magnetic seal, the stator and rotor pieces must remain in close contact throughout the assembly process. Keeping these two components separate in the spring-energized seal also allows for inspecting their surfaces or opportunities to clean these parts during installation and handling.
Space constraints could pose a problem or even limit a customer's ability to replace a problematic magnetic seal; do space constraints favor one seal type over another?
Aaron:
In most, if not all, of the applications we have examined, the axial and radial spaces we have to work with are sufficient to accommodate either technology. Therefore, we have not found this to be true in the applications we have worked on. We have been able to devise solutions that fit within the available space.
Customers may have concerns regarding the presence of a magnetic seal in their system and its potential interaction with the debris generated by the system. Can you address this issue?
Aaron:
One concern we have received from some OEMs is that these seals are positioned close to critical bearings within the system. When wear debris is generated by gears, shafts, or other system components and transported by the lubrication system, metallic or magnetic particles can accumulate around the seal interface within the magnetic field.
This accumulation can function like a chip collector. The concern is that if this debris buildup dislodges, it could lead to secondary damage to the bearings and potentially result in more severe failure modes.
What face materials are often used for a spring-energized mechanical seal?
Aaron:
We frequently utilize carbon materials for the stator, typically the non-rotating part. These materials exhibit low friction characteristics. For the mating materials, we generally opt for hardened steels, such as bearing-type steels. In certain applications, we can also employ ceramics or coatings to enhance wear resistance and lifespan, depending on the application's specific requirements.
What is your recommendation for applications in marine environments?
Aaron:
When considering a marine environment, our primary focus is material selection based on the operating fluids it may encounter. We take into account factors such as corrosion resistance, especially to saltwater. This leads us to materials like stainless steel, which is known for its excellent corrosion resistance.
Additionally, we carefully choose a seal nose material that does not release substances into the water, among other considerations. With a wide range of material options, we encounter very few limitations in our choices. We review the specific application details and tailor our selections accordingly.
