In battery manufacturing, the quality of materials and precision in production are crucial to ensuring efficiency and longevity. High-quality materials enable reliable energy storage and delivery, while meticulous production processes ensure consistency and safety.

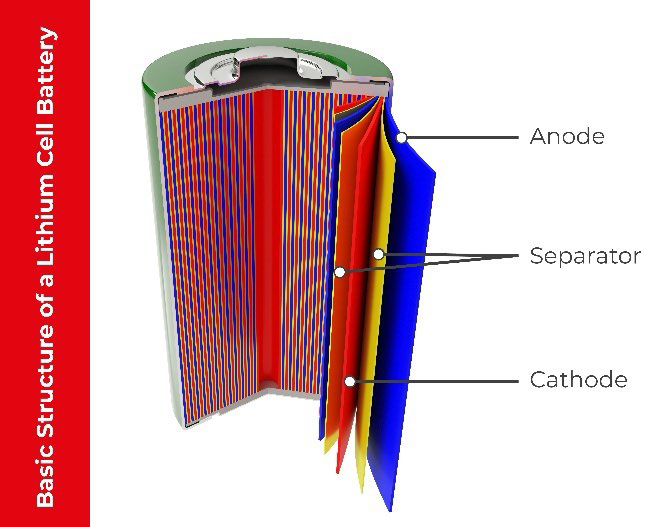

Image Credit: CARBOLITE GERO Ltd.
Creating a superior battery involves several critical steps, each requiring close attention to detail. From selecting raw materials to assembling components, every phase must meet strict quality standards. This not only enhances performance but also extends battery lifespan, making them more cost-effective and environmentally friendly over time.
So, what defines a good battery? Factors like material purity and homogeneity, crystal structure, and a well-formulated electrolyte all play essential roles in determining performance and reliability.
The primary stages in the process, beginning with raw materials, can be outlined as follows:
Graphitization
Graphitization is a key step in producing battery materials, especially for the anode in lithium-ion batteries. This multi-step process begins with debinding, followed by carbonization, and concludes with structural reordering.

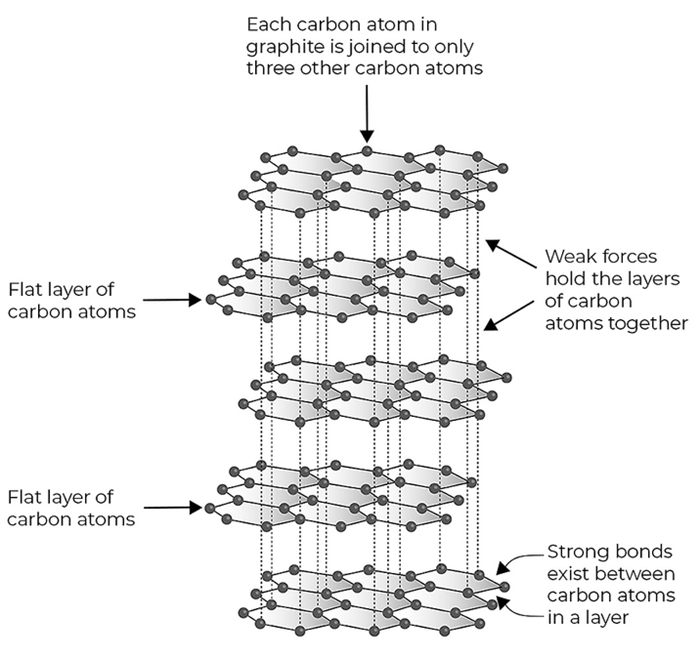

In the final stage, the material's structure aligns into layers that move together at around 2500 °C. To achieve the desired material properties, the process involves pyrolysis, carbonization, and graphitization.
Image Credit: CARBOLITE GERO Ltd.

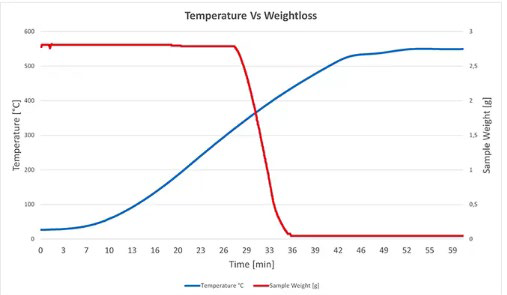

Debinding
Debinding is the process of removing binders and other organic compounds from the material. This is usually achieved by heating the material in a controlled environment to decompose and volatilize the binders without compromising their structural integrity.
Image Credit: CARBOLITE GERO Ltd.
Calcination
Calcination is a thermal treatment process used to eliminate volatile components and trigger chemical reactions within the material. In battery manufacturing, this process is used to eliminate impurities, initiate solid-state reactions and optimize key properties, including particle size, morphology, and electrochemical performance.
Carbolite Gero offers a range of solutions for the graphitization process tailored to different needs.

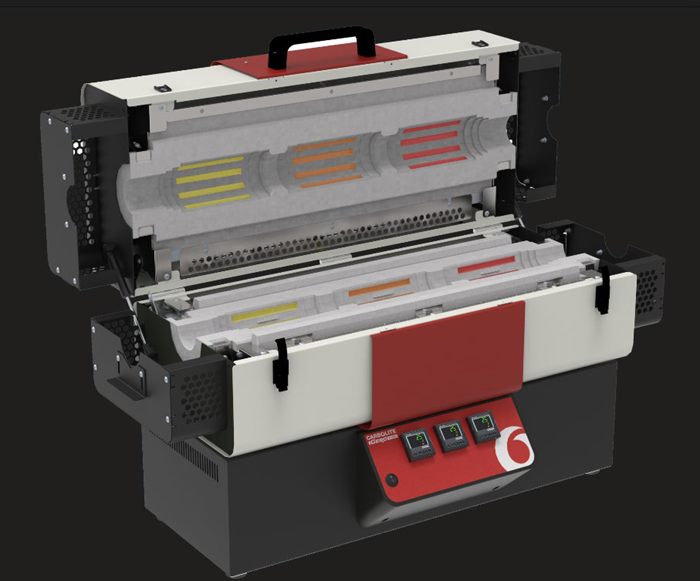

For research applications where an afterburning system is not required, a tube furnace is an ideal choice. These furnaces can operate at temperatures up to 1800 °C and are well-suited for processes such as material synthesis, calcination, and drying.
For larger-scale operations requiring an afterburner, the GLO systems provide a more comprehensive solution.
Image Credit: CARBOLITE GERO Ltd.

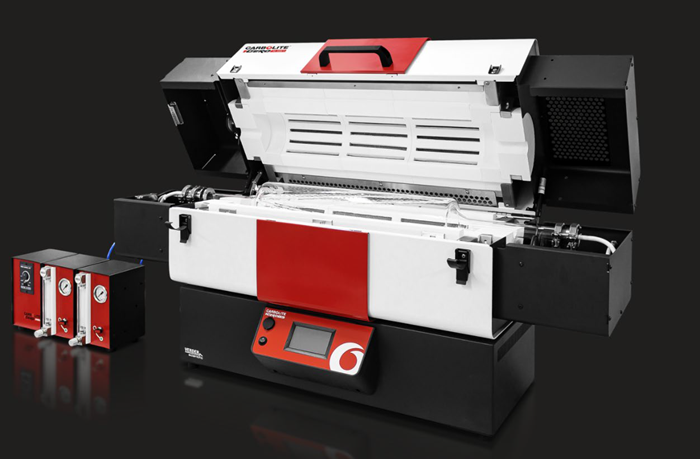

The GLO system is specifically designed for battery production, featuring a vacuum-tight retort and highly symmetric heating elements for precise temperature control up to 1100 °C. It is ideal for critical processes such as annealing, degassing, and pyrolysis—key steps in producing high-quality battery materials.
Image Credit: CARBOLITE GERO Ltd.

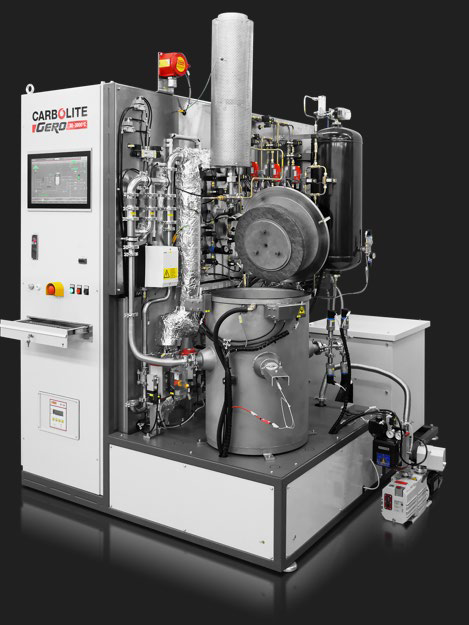

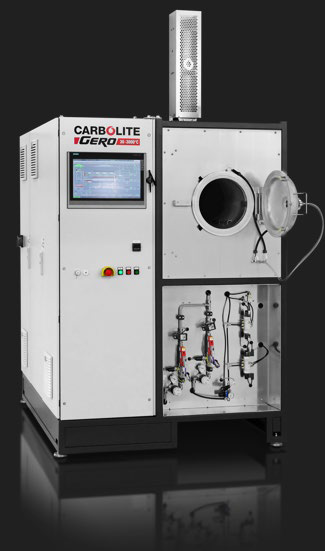

LHTG & HTK GR furnaces are available for graphitization requiring a more advanced precision system. These furnaces can accommodate off-gassing and residual elements, utilizing graphite felt insulation and graphite heating elements to operate at up to 3000 °C.
Image Credit: CARBOLITE GERO Ltd.
Nickel Purification
Pure nickel plays a vital role in battery production. The purification process of nickel involves roasting copper, iron, and nickel in air, followed by melting and converting them to nickel sulfide (NiS).
The NiS is then oxidized in air to form nickel oxide (NiO) which is later reduced to coke. Raw nickel is purified and then re-purified through the Mond process, also called the carbonyl process, which consists of the following stages:
- Reaction with Syngas: NiO reacts with hydrogen gas (H2) at approximately 200 °C to produce impure nickel (Ni) and water (H2O).
NiO (s) + H2 (g) → Ni (s) + H2O (g)
- Formation of Nickel Carbonyl: The impure nickel reacts with carbon monoxide (CO) at 50-60 °C to form nickel carbonyl (Ni(CO)4), a volatile gas, leaving impurities behind.
Ni (s) + 4 CO (g) → Ni(CO)4 (g)
- Decomposition of Nickel Carbonyl: The nickel carbonyl gas is then heated to 220- 250 °C, causing it to decompose back into pure nickel and carbon monoxide.
Ni(CO)4 (g) → Ni (s) + 4 CO (g)

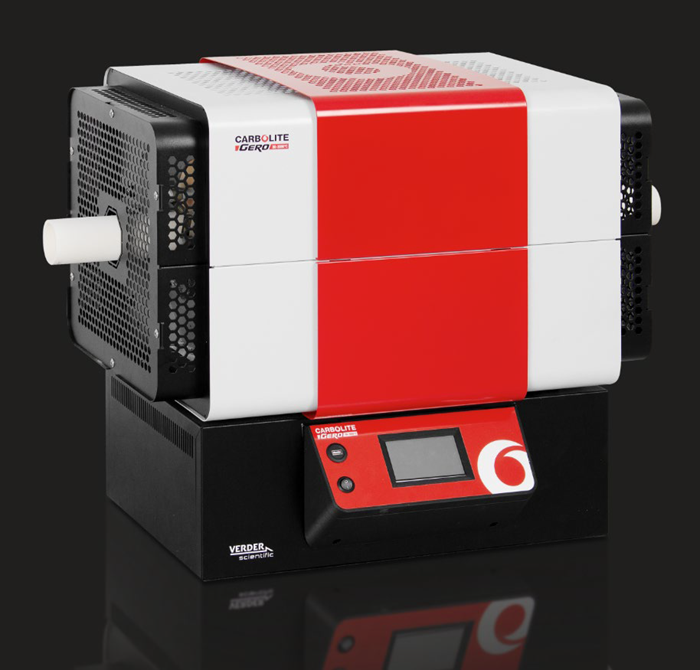

Carbolite Gero offers the TSO furnace for calcination and reduction at temperatures ranging from 550 °C to 1150 °C. Designed for precision, this furnace provides controlled temperature and atmosphere conditions, ensuring the efficient production of high-purity nickel.
Image Credit: CARBOLITE GERO Ltd.
Image Credit: CARBOLITE GERO Ltd.

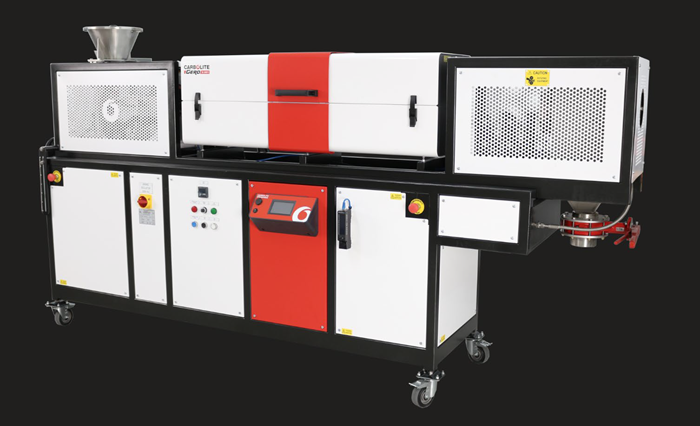

A TSR rotating tube furnace is used for continuous operations. This furnace utilizes a rotating tube design, which improves the reaction efficiency by increasing the surface area of the material exposed to the atmosphere.
The TSR furnace maintains precise temperature regulation and operates under modified atmospheres, making it optimal for producing the high-purity nickel required in battery manufacturing.
The Mond process, a Chemical Vapor Transport (CVT) method, relies on a gradient furnace for precise temperature control along its length. This is essential for the CVT process, where materials are transported in vapor form from a high-temperature zone to a lower-temperature zone, enabling the deposition of purified material.
The gradient furnace ensures uniform heating and precise thermal conditions, both of which are critical for efficient and high-purity nickel production.
Image Credit: CARBOLITE GERO Ltd.
Electrolyte Sol-Gel Processed
The sol-gel process is a low-temperature technique for producing high-purity, homogeneous materials used in battery electrolytes. During the battery manufacturing process, sol-gel-processed materials undergo a drying phase to eliminate solvents and form a solid gel.
This step is essential for preparing the material for additional thermal treatments such as sintering, and Carbolite Gero provides optimal solutions for this heat treatment.
Carbolite Gero has played a key role in developing high-density materials for silicon chemistry.
In energy storage applications, combining materials like silicon, nickel, and niobium in solid gel electrolytes can significantly enhance performance. Silicon improves mechanical stability and ionic conductivity, while nickel and niobium contribute to higher electrochemical stability and improved cycling performance.
When integrated into a solid gel matrix, these materials create safer and more efficient electrolytes for battery applications.
For this critical process, the GLO system is an ideal choice. It enables the efficient synthesis of silicon-lithium materials using quartz boats, allowing for continuous layering, heating, and synthesis without interruption.
This information has been sourced, reviewed and adapted from materials provided by CARBOLITE GERO Ltd.
