Optimizing Automotive Components with Aluminum Coating Thickness Analysis

Every component plays a crucial role in the fast-paced world of automotive engineering, ensuring vehicles’ performance, longevity, and safety.

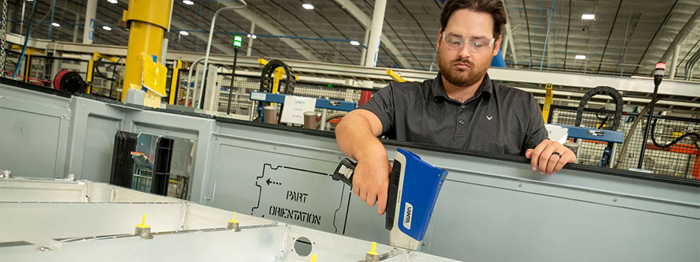

Image Credit: Evident Corporation (XRF / XRD)

Aluminum is one of the most commonly used materials in automotive manufacturing. It is known for its material strength and light weight, with aluminum widely used to help create safer, lighter, and more fuel-efficient vehicles.

Aluminum is also an extremely versatile material. It is available in various alloys, each offering distinct mechanical properties, including good formability and a favorable strength-to-weight ratio.

Various properties make specific aluminum alloys more suited to specific automotive components, so a range of alloys will be used throughout the vehicle to ensure optimal performance.

Appropriate surface finishes and coatings also afford aluminum auto parts an additional layer of protection and performance, enhance the parts’ aesthetic appeal, and offer corrosion protection, wear resistance, improved formability, and other environmental factors.

This also means that vehicle performance relies on using the most appropriate material and coating for each part.

Original equipment manufacturers (OEMs) follow a strict quality process, but automotive manufacturers must also confirm the integrity of any incoming materials from OEM suppliers to ensure quality control and assurance. This process includes verifying the coating thickness on aluminum OEM auto parts.

This article examines different types of aluminum finishes and coatings employed in the automotive industry, discussing each coating’s economic and physical benefits. It also outlines an efficient quality control device suitable for measuring and analyzing aluminum coating thickness.

Types of Aluminum Finishes and Coatings for Automotive Components

Automotive components and parts employ several aluminum surface treatments and coating options.

Anodizing

Anodizing is a commonly employed surface treatment technique used with aluminum OEM auto parts. This technique involves creating an oxide layer on the part’s surface, improving corrosion resistance while also allowing for various color options.

Anodized aluminum benefits from durability, improved hardness, and exceptional adhesion properties, making it an ideal treatment for wheels, exterior body panels, and other visible automotive components.

Non-Chromate Conversion Coatings

Non-chromate conversion coatings provide a useful protective layer on aluminum surfaces, improving their corrosion resistance while offering exceptional adhesion for subsequent paint applications.

Non-chromate conversion coatings are widely employed in critical applications such as aerospace parts and engine components.

A Ti/Zr coating (based on titanium and zirconium) remains one of the most popular examples of these coatings. This coating is achieved by spraying a chemical agent for a Ti/Zr treatment before rinsing and drying. Many automotive manufacturers have adopted this treatment because it improves the bonding durability of aluminum materials.

Powder Coating

Powder coating involves applying a dry powder to the part’s surface. This powder is then cured to form a protective and decorative layer. The powder coating process offers excellent durability, chemical resistance, and a diverse array of color options.

Powder-coated aluminum parts can be found in various areas of a typical automobile, including interior trim and chassis components.

Electroplating

Electroplating involves depositing a metal layer onto an aluminum surface via an electrolytic cell. This technique improves corrosion resistance, affords parts a smooth finish, and can be used to achieve attractive decorative effects.

Electroplated aluminum parts are primarily found in exterior trims and decorative accents.

The widespread adoption of lightweight electric vehicles (EVs) has prompted a range of coating technology advances. Research and development efforts primarily focus on developing coatings offering improved corrosion resistance, durability, and beneficial weight-saving properties.

These developments include thin-film coatings, nano-coatings, and advanced composite coatings, offering improved protection while minimizing weight gain.

These innovations further the goal of minimizing overall vehicle weight while ensuring optimal protection and performance.

XRF Coating Thickness Measurement

Automotive engineers and manufacturers must ensure consistent quality while rigorously adhering to specifications. Accurately measuring surface coating thickness is a key aspect of quality control.

X-ray fluorescence (XRF) technology has emerged as a reliable and efficient solution in this field, even for samples with a complex shape.

XRF is a nondestructive analytical technique for measuring materials’ elemental composition. It can also precisely determine coating thickness on aluminum surfaces without damaging the part under investigation.

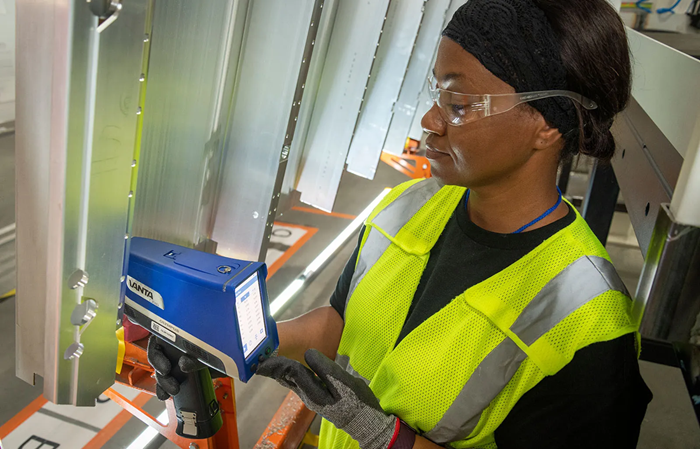

A technician performs coating analysis using a handheld XRF analyzer. Image Credit: Evident Corporation (XRF / XRD)

XRF is a widely recognized technique offering an array of benefits to coating thickness measurements.

Non-Destructive Testing

XRF technology measures coating thickness without damaging the integrity and usability of aluminum OEM parts.

Accuracy and Precision

XRF analyzers offer accurate and repeatable coating thickness measurements, minimizing any risks of parts deviating from specifications.

Image Credit: Evident Corporation (XRF / XRD)

Source: Evident Corporation (XRF / XRD)

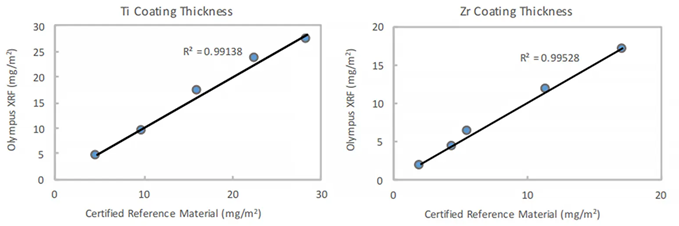

The data shown here exhibits an excellent correlation between results acquired via a Vanta^™ handheld XRF analyzer and the coating thickness reference materials for titanium (Ti) and zirconium (Zr).

Time and Cost Efficiency

XRF technology offers rapid measurements, resulting in minimal downtime and enhanced productivity. XRF also removes the need for destructive testing or complicated sample preparation, ultimately resulting in cost savings.

Versatility

XRF analyzers can measure diverse coatings, including conversion coatings and anodized layers. This makes XRF highly suited to various automotive applications.

In-Line XRF for Quality 4.0 in Automotive Manufacturing

Precise control over coating thickness may be required at the nanoscale, with 1 nanometer, or nm, equal to one billionth of a meter. The consistency of the measurement procedure is key to nano-thickness control, and manual control cannot always ensure an ideal procedure.

Evident Scientific offers an automatic in-line control system in alignment with Quality 4.0 practices. This system integrates a robot arm with an in-line XRF analyzer to analyze control points in real-time, ensuring 100% quality control of the surface treatment.

Confidence in Aluminum Coating Quality for Auto Parts

Surface finishes and coatings are indispensable for enhancing aluminum OEM parts’ performance, protection, and visual appeal throughout the ever-evolving automotive industry.

Techniques such as anodizing, chromate conversion coatings, organic coatings, powder coating, and electroplating all serve distinct functions and contribute to the overall durability and functionality of various automotive components.

Automotive engineers must select the most appropriate surface treatment to ensure optimal longevity, performance, and customer satisfaction.

Surface treatment and quality control are closely linked when working with aluminum OEM parts in the automotive industry.

By staying at the forefront of advances in surface treatments and integrating cutting-edge technologies such as XRF, automotive engineers will continue to drive innovation, raise product performance, and succeed in this continually evolving and dynamic industry.
