Advantages of Sialon Heater and Riser Tubes

Sponsored by International SyalonsDec 6 2007

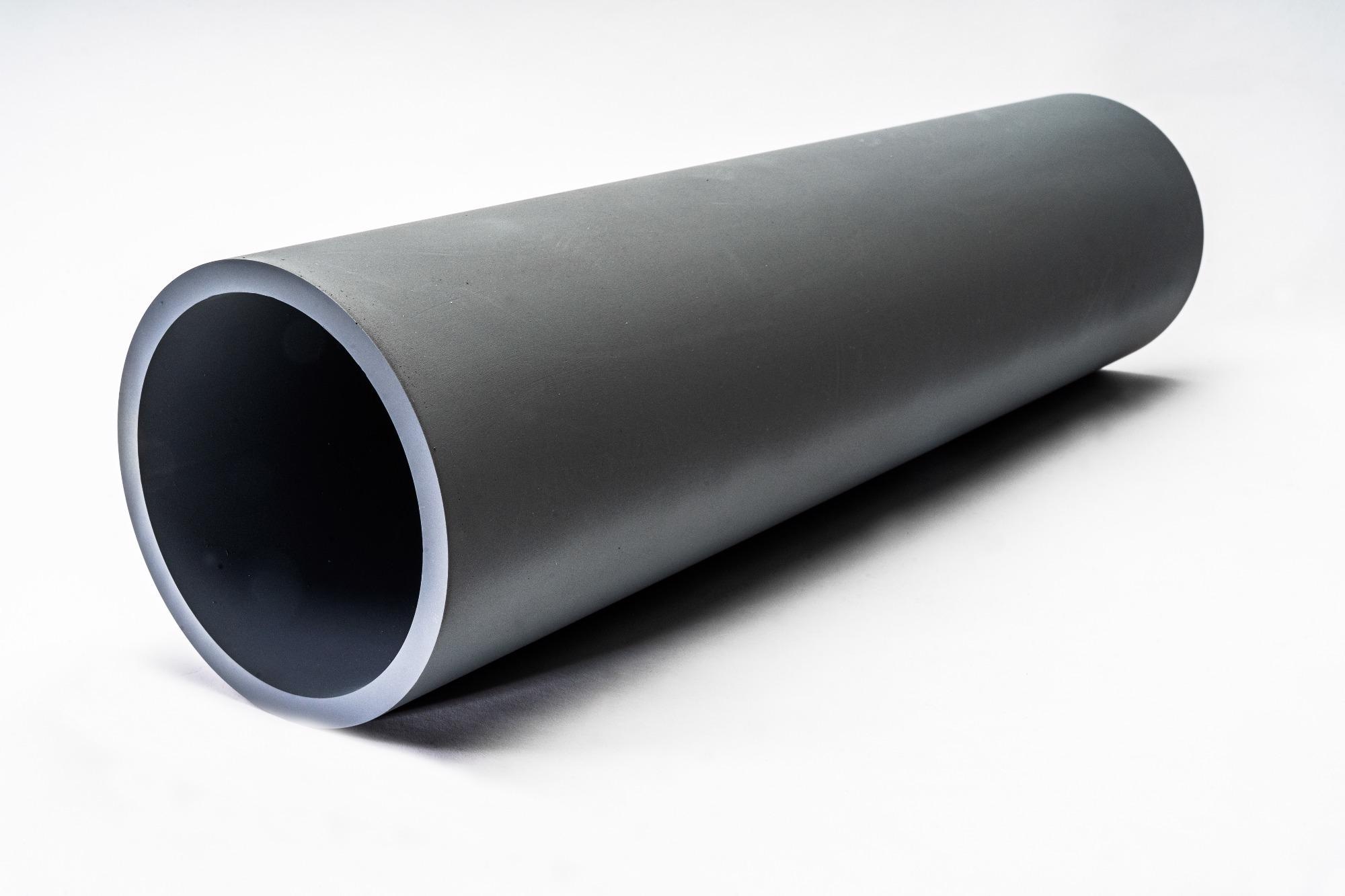

Sialon heater/riser tubes offer long life, improved process reliability and are cost effective. The range of heater/riser tubes available is very diverse, although we are limited to a maximum outside diameter of 200mm and maximum length of 1500mm. A selection of the tubes we currently manufacture are shown in the tables below.

Image Credits: syalons.com

Standard Syalon Heater and Riser Tube Sizes

Table 1. Standard Heater & Riser Tube Sizes.

OD/mm	ID/mm	Maximum Length/mm	Integral Flange	Steel Flange
60	50	1500	Max. length 1000mm	√
80	60	1500	Max. length 1000mm	√
100	80	1500	Max. length 1000mm	√
120	100	1500	Max. length 1000mm	√
140	120	1100	Max. length 1000mm	√
160	140	1100	X	√
170	150	1100	X	√
190	165	1350	X	√

Other tubes can be manufactured to customer requirements. Integral flanges can be made up to 30mm greater than the tube outside diameter.

If you require more information on our heater and riser tubes, please contact International Syalons with your enquiry.

This information has been sourced, reviewed and adapted from materials provided by International Syalons.

For more information on this source, please visit International Syalons.
