Measuring Temperatures up to 200 °C with the Linear Strain Gauges

Need more information?

Let us help you with your inquiries, brochures and pricing requirements

OMEGA Engineering Ltd logo.

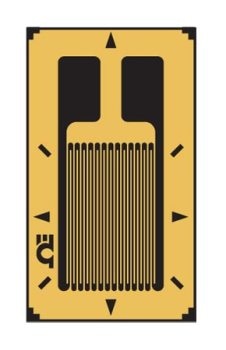

The OMEGA® strain gauges are available in a wide range of models to cover almost all strain measurement applications. These gauges are ideal for highly accurate static and dynamic measurement because of their rugged construction and flexibility. The gauges can also compensate high temperature. The measuring grid is developed by etching constantan foil, which is then completely sealed in a carrier medium containing polyimide film.

  • Clear alignment marks
  • Broad temperature range
  • Small bending radius of 3 mm
  • Solder pads or ribbon leads
  • Service temperature from -75 to 200 °C
  • Strain gauges conveniently priced per pack of 10
  • Affix with hot or cold curing adhesives
  • 1-Axis linear gauges for static and dynamic applications
