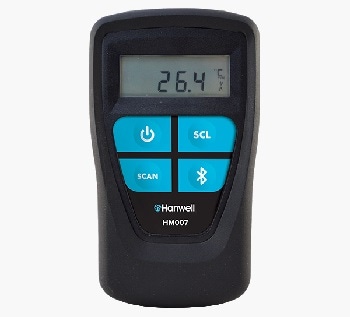

The HM007 ThermoBarScan is a handheld logging thermometer with an integral barcode scanner and Bluetooth capabilities. It works as a digital temperature probe data logger. The barcode scanner records product location/identity plus time, date, and temperature while the Bluetooth communication transmits the data to a mobile phone, PC, or PDA for easy portable temperature logging. It is ideal for a wide variety of applications.
Features
- Integral barcode reader
- Logs up to 1000 times and dates temperature records
- Built-in Bluetooth communications
- Supplied complete with PC software
- C°/F° selectable
- Low battery indication
- Over range / open circuit sensor indication
- User-configurable auto switch off capability
- Infrared sensor compatibility
- Can be used will all available probes
Benefits
- Reduces the risk of potentially exposing contaminated produce to consumers
- Assists with HACCP compliance requirements
- Automatically logs data using Bluetooth communication to reduce manual errors
- Reduces wastage costs
- Protects the company reputation
* Infra-Red variable available on request
Specifications
Instrument
Dimensions: 160 x 70 x 55 mm
Weight: 200 g
Power Supply: PP3 9V I.E.C 6F22 battery
Battery Life: Greater than 200 hours (Alkaline)
Case Material: ABS Plastic
IP Rating: IP67
Environmental
Ambient Operating Range: 0 °C to +50 °C
Storage Temperature Range: -20 °C to +50 °C
Humidity: 0 to 70% RH
Temperature Scales: °C / °F
Electrical
Measurement Range: -200 °C to +1372 °C dependent on probe (probes sold separately)
Accuracy @ 23 °C: ±0.1% of reading ±0.2 °C
Cold Junction Compensation: 0.0075 °C/ °C
Characteristic Errors: Less than 0.05 °C
Temperature Coefficient: 0.01% of reading /°C
Resolution: 0.1° to 1000, 0.1° above 1000
Barcode
Readable Barcodes
All UPC/EAN/JAN Codes
EAN28 Codes
Code39 Code 128
Bluetooth
Class: Class 1
Contains: FCC Id: S22btmodule-Cl1
Probe Options (Probes sold separately)
TP05 – General purpose needle probe
TP10 – Fine needle probe
TP07 – Heavy duty needle probe
TA12 – Fast response flat food probe
TS01-S – Dual surface/immersion probe
TFS01 – Food simulant probe
TFS01C – Food simulant probe cable
TP01 – Frozen food/corkscrew probe
