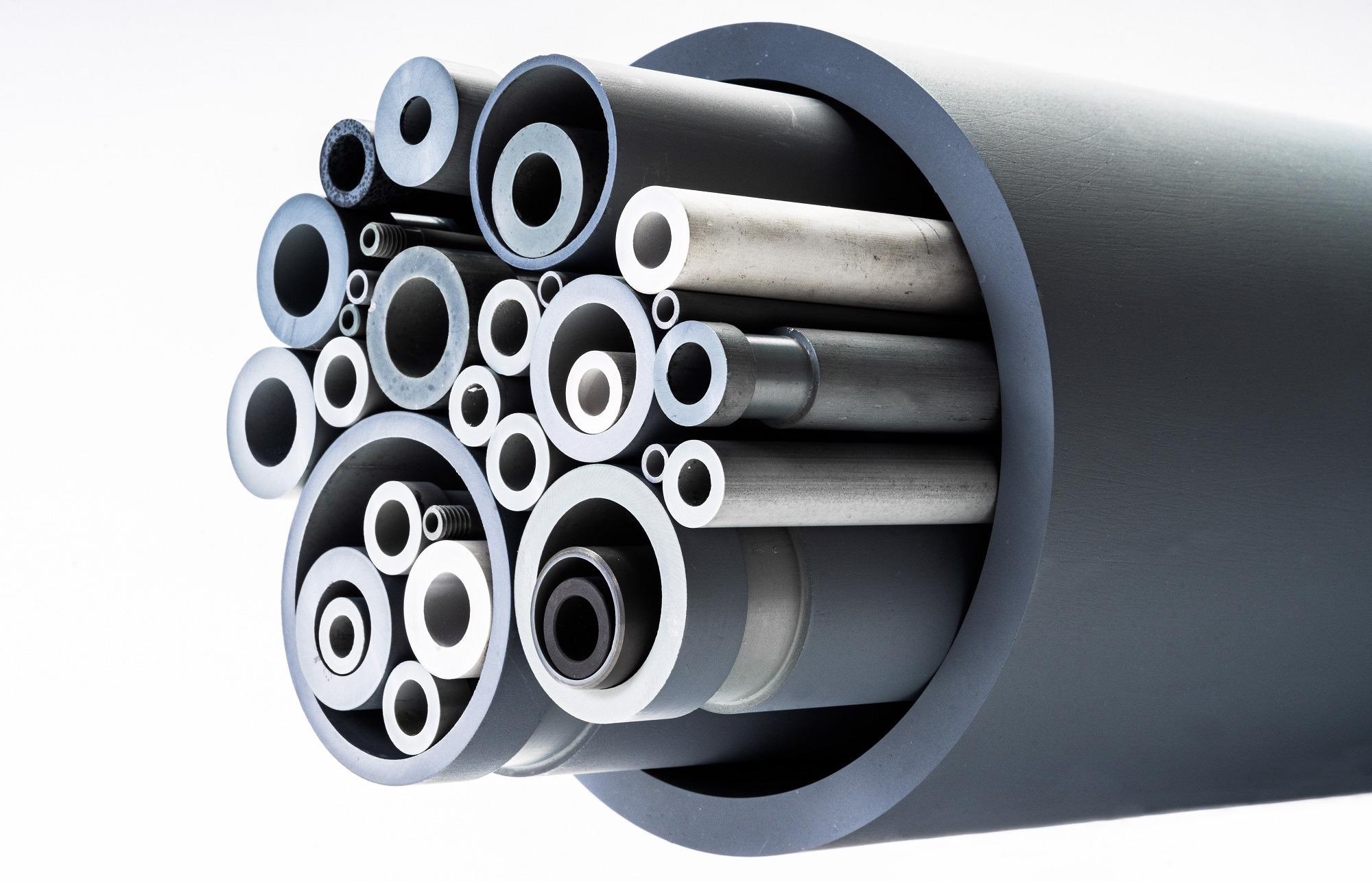

Sialon Thermocouple Protection Sheaths

Need more information?

Let us help you with your inquiries, brochures and pricing requirements

International Syalons logo.

The sialon thermocouple protection sheaths are world renowned for their outstanding performance in the non-ferrous molten metal industry. Its unique combination of physical properties such as high strength, toughness, excellent thermal shock resistance and resistance to corrosion make it the stand out material in this application.

Benefits of Using Sialon Thermal Protection Sheaths

Syalon 101 protection sheaths allow constant temperature monitoring of the melt resulting in improved quality of the finished casting.

Syalon Thermocouple Protection Sheath Sizes

Sialon thermocouple protection sheaths are available in a range of standard sizes as shown in the table below. These are usually available ex-stock.

OD/mm

ID/mm

Maximum Length/mm

28

16

1500

22

12

1500

16

9

1500

12.5

6.5

900

9

4

350

Tubes outside these standard sizes are also available but with a longer lead time. Please contact International Syalons with your enquiry.

Syalon 050, for High Temperature Applications

For high temperature applications above 1200°C, Syalon 050 is the preferred choice. Again offering outstanding physical properties, Syalon 050 can be used be at temperatures up to 1400°C.
