Signal Source

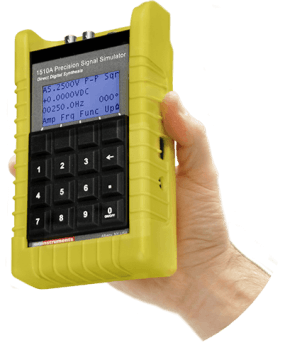

MTI’s 1510A portable signal generator and calibrator is considered to be perfect for testing the integrity of sensor signal conditioning electronics. This battery operated function generator, encased in a rugged high visibility shell with a spill proof keypad, is capable of being used in the field, laboratory or factory floor in order to simulate sensor signals. It simulates accelerometer, strain gauge, eddy current and other types of pulse, triangle, sinusoidal or digital pulse trains. The frequency response of the subsequent signal conditioning devices is tested by the sweep function.
A USB port permits remote control and programming of the unit. It is possible to program this signal source generator in order to generate two independent or synchronized signals of different standard signal waveforms (SINE, SQUARE, PULSE and TRIANGLE) and varied frequencies up to 100 kHz. A Channel B provides speed synthesizer signal functionalities such as, odd pulse, sweep function and single pulse.
Features
Designed for cabling and wiring troubleshooting, machinery speed signal simulation, audio signal simulation, low-voltage bridge mode (microvolt DC output) sensor signal simulation and gas turbine maintenance, the 1510A is capable of producing precise and accurate voltage, charge, and speed signals essential for system troubleshooting, calibration and testing.
- Voltage range: 0 to 9.99999 Volts pk
- Voltage accuracy of 0.05% ± 0.1 mV
- Handheld battery-powered
- Portability and features are popular for use among railroad signal servicing, test laboratories, power plant and many other laboratory uses
- Has a variable phase control to simulate machinery imbalance conditions
- It is also used to simulate low level medical EEG and EKG signals for calibration
- Highly accurate DC output can be used for calibrating electronic amplifiers’ gain settings such as strain gauge amplifiers
1510A Portable Signal Generator
Model Specifications
| P/N |
Model |
Measurement Range |
Accuracy |
Min. Range |
Resolution |
Interface |
Type |
| 8000-7006K |
1510A |
0 to 9.999 Volts pk |
±0.005% (3 Hz to 100 Hz) |
0.1 Hz |
0.1 mV |
BNC coaxial |
Handheld |
Accessories
| P/N |
Model |
Product Description |
| 1400-4008 |
Carrying Case |
Hard shell case with gaskets and molded internal foam to accommodate the 1510A, charger and miscellaneous cables |
| 7500-7522 |
Software |
Software allows users to preprogram the 1510A memory and to control the 1510A via the included USB remote control cable. |
| 8900-7059 |
Aviation Diagnostic Kit |
Diagnostic kit for Aircraft instrumentation and cabling |
| 6000-4005 |
BNC to BNC Adapter Cable |
10 foot cable with molded strain relief for connecting voltage outputs of the 1510A to ancillary equipment |
| 7500-7509 |
Differential Charge Output Adapter Cable |
3 foot cable with stainless steel armor to connect signals to a charge amplifier. Twisted, shielded low MS3106 connector |
| 6000-4007 |
Single-ended Charge Output Adapter Cable |
5 foot low-noise cable with micro-dot connectors feeds single ended signals from the 1510A to charge amplifier, or other instruments. |
| 7500-7491 |
BNC to Sockets Adapter Cable |
With size 22 sockets on one end and BNC connector on the other designed to inject charge signals into connectors (5ft cable) |
| 7500-7492 |
BNC to Sockets Adapter Cable |
With size 20 sockets on one end and BNC connector on the other designed to inject charge signals into connectors (5ft cable) |
| 7500-7493 |
BNC to Sockets Adapter Cable |
With size 16 sockets on one end and BNC connector on the other designed to inject charge signals into connectors (5ft cable) |
| 7500-7494 |
BNC to Pins Adapter Cable |
With 22 pins on one end and BNC connector on the other designed to inject charge signals into connectors (5ft cable) |
| 7500-7495 |
BNC to Pins Adapter Cable |
With 20 pins on one end and BNC connector on the other designed to inject charge signals into connectors (5ft cable) |
| 7500-7496 |
BNC to Pins Adapter Cable |
With 16 pins on one end and BNC connector on the other designed to inject charge signals into connectors (5ft cable) |
| 7500-7497 |
Differential Charge Output Cable |
With size 22 sockets on one end and MS3106 connector on the other designed to inject charge signals into connectors (5ft cable) |
| 7500-7498 |
Differential Charge Output Cable |
With size 20 sockets on one end and MS3106 connector on the other designed to inject charge signals into connectors (5ft cable) |
| 7500-7499 |
Differential Charge Output Cable |
With size 16 sockets on one end and MS3106 connector on the other designed to inject charge signals into connectors (5ft cable) |
| 7500-7500 |
Differential Charge Output Cable |
With 22 pins on one end and MS3106 connector on the other designed to inject charge signals into connectors (5ft cable) |
| 7500-7501 |
Differential Charge Output Cable |
With 20 pins on one end and MS3106 connector on the other designed to inject charge signals into connectors (5ft cable) |
| 7500-7502 |
Differential Charge Output Cable |
With 16 pins on one end and MS3106 connector on the other designed to inject charge signals into connectors (5ft cable) |
| 4000-0023-4 |
Battery Pack |
Pack of 4 NiMH rechargeable batteries |
| 4000-0024 |
Battery Charger |
Battery Charger |
| 4000-0022A |
Wall Adapter |
100-240 VAC |
| 6000-2001 |
USB Cable |
Connects the 1510A USB port to an external PC for programming and control |
| 7000-7002 |
Protective Boot |
Protective Case for 1510A |
| 7500-7503 |
Cable |
RS-232 port to the calibrator for programming and control |
