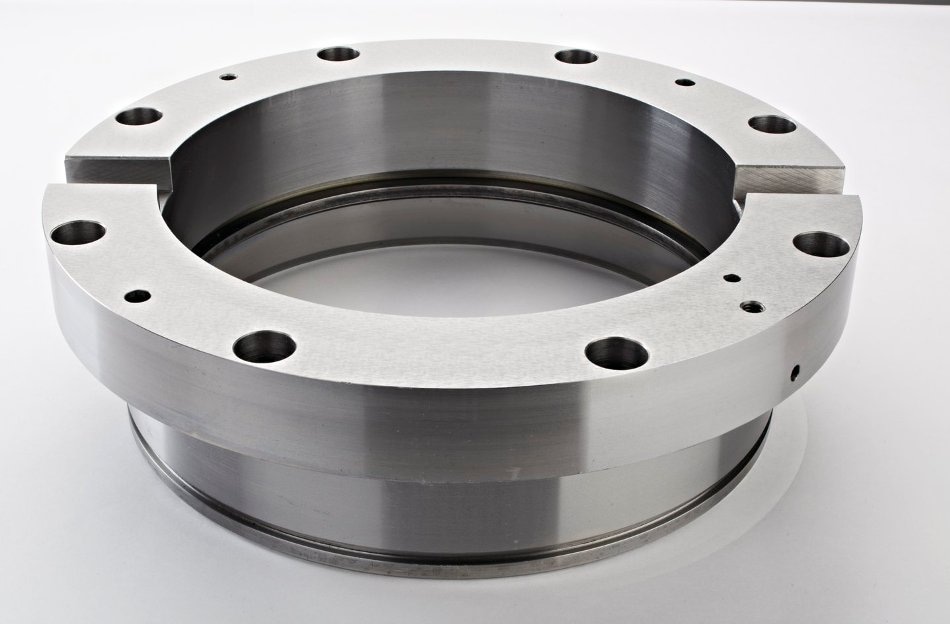

The Turning / Milling Centers in the VMC MT series are suitable production systems for chucked components with intricate geometries.
Whether used for prototype production or rapid modifications in small production operations, the VMC MT series from EMAG is perfectly designed to meet the demands of flexible production situations owing to the accessibility of the machining area and the bottom-mounted workpiece spindle.
Vertical Turn/Mill Machine for machining chucked parts up to 450 mm

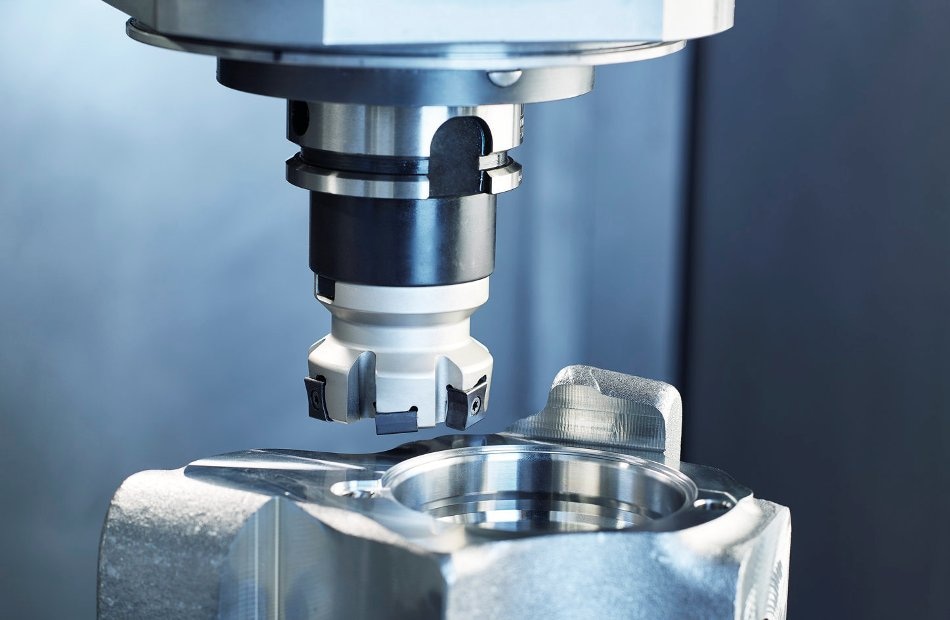

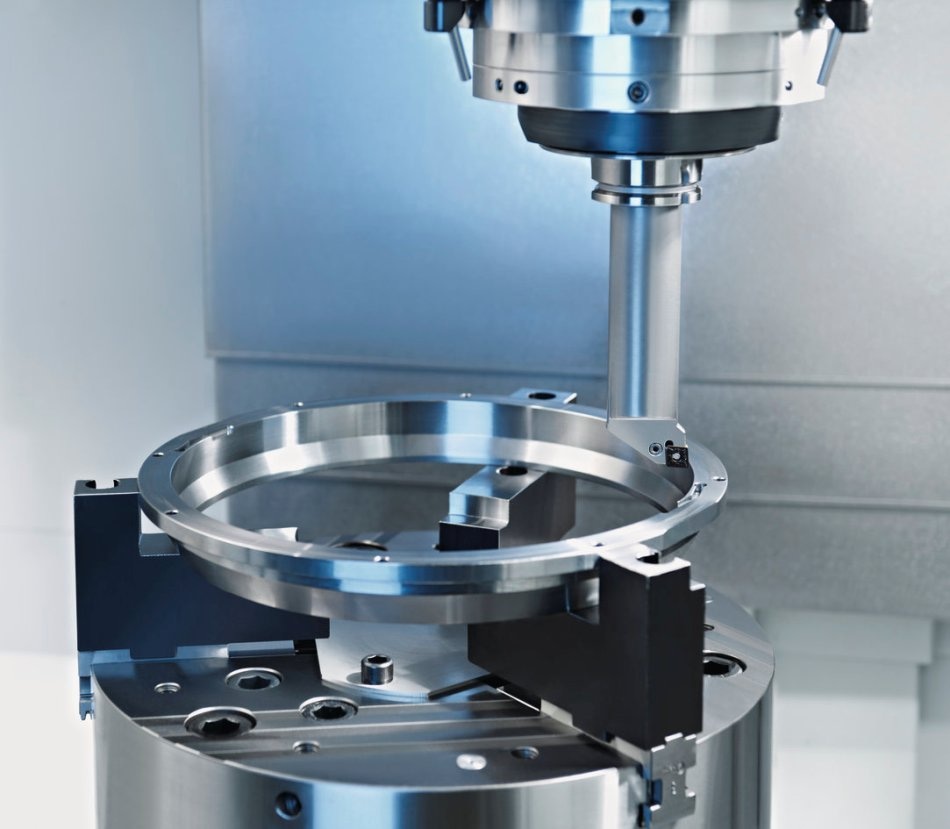

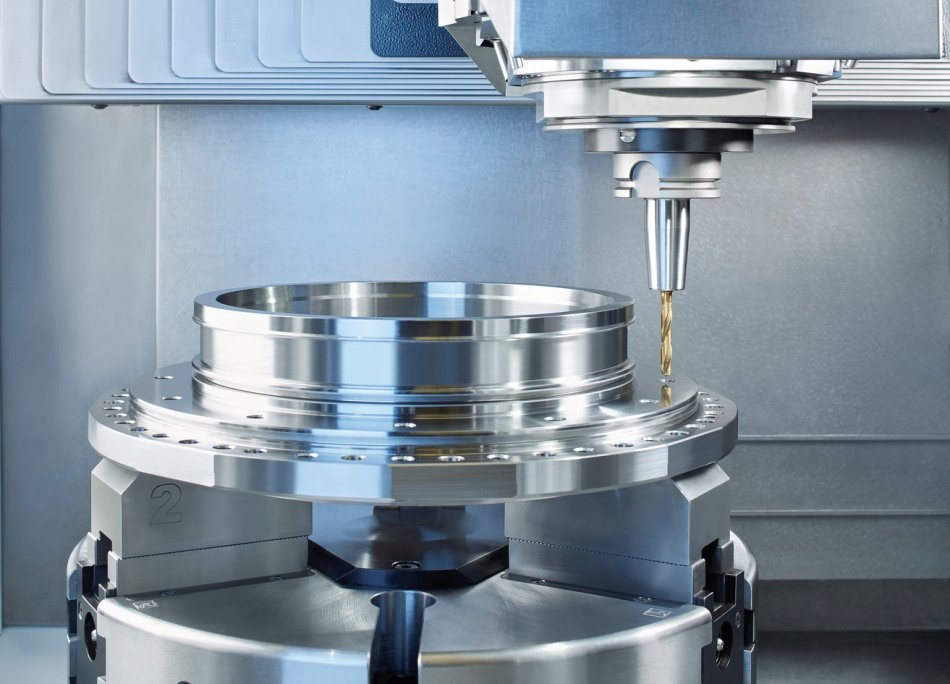

Universality is the key feature of the VMC MT series, which can be configured to match nearly any customer demand. Besides the entire range of technologies for turning, drilling, and milling available, there are various spindle options to compliment these options.

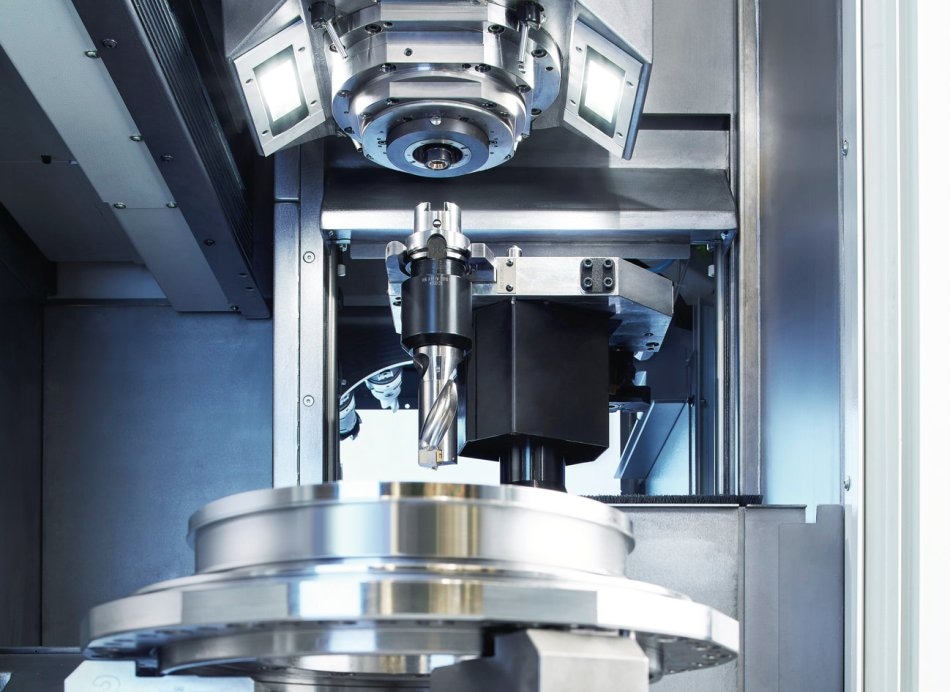

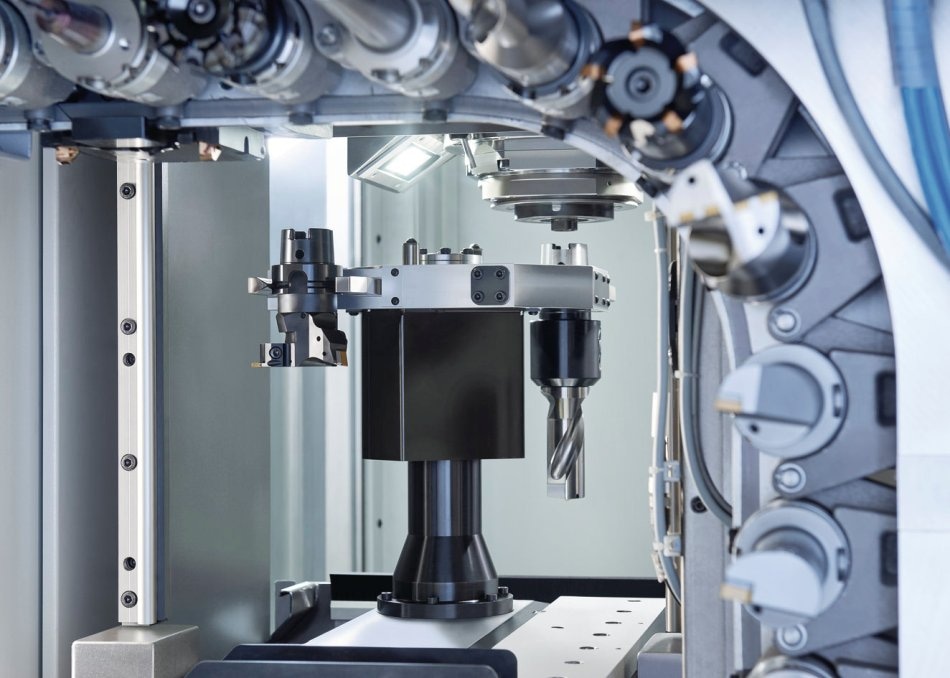

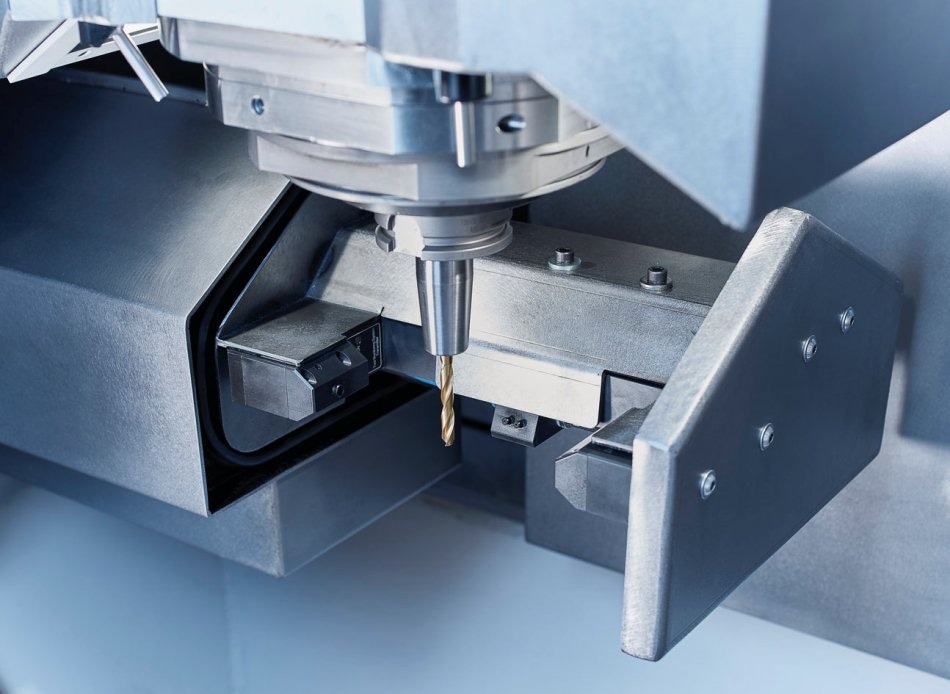

However, it is the use of a tool magazine which allows the most multifaceted geometries to be attained with a wide range of parts, making the VMC 450 MT turn/mill machine a genuine productivity center. Numerous tool magazines with up to 80 tool positions can be chosen.
Technical Data
| . |
. |
. |
| Chuck diameter, max. |
mm
in |
500
19.5 |
| Swing diameter over base |
mm
in |
700
27.5 |
| Turning diameter, max. |
mm
in |
450
17.5 |
| Spindle height (without clamping devices) |
mm
in |
1,040
41 |
| Spindle flange ISO 702-1 |
|
811 |
| Workpiece weight, max. |
kg
lb |
300
661.5 |
| X-axis travel |
mm
in |
540
21.5 |
| Z-axis travel |
mm
in |
500
19.5 |
Advantages
- Extremely dynamic axes for short idle times and rapid machining processes
- Axis monitoring by rotary, indirect absolute encoders. All axes with an optional completely encapsulated linear glass scale
- All the service units are easy to reach
- Machine base made of MINERALIT®, six to eight times improved damping properties than gray cast iron
- Generously dimensioned main spindle, maintenance-free spindle motors and stiff guideways

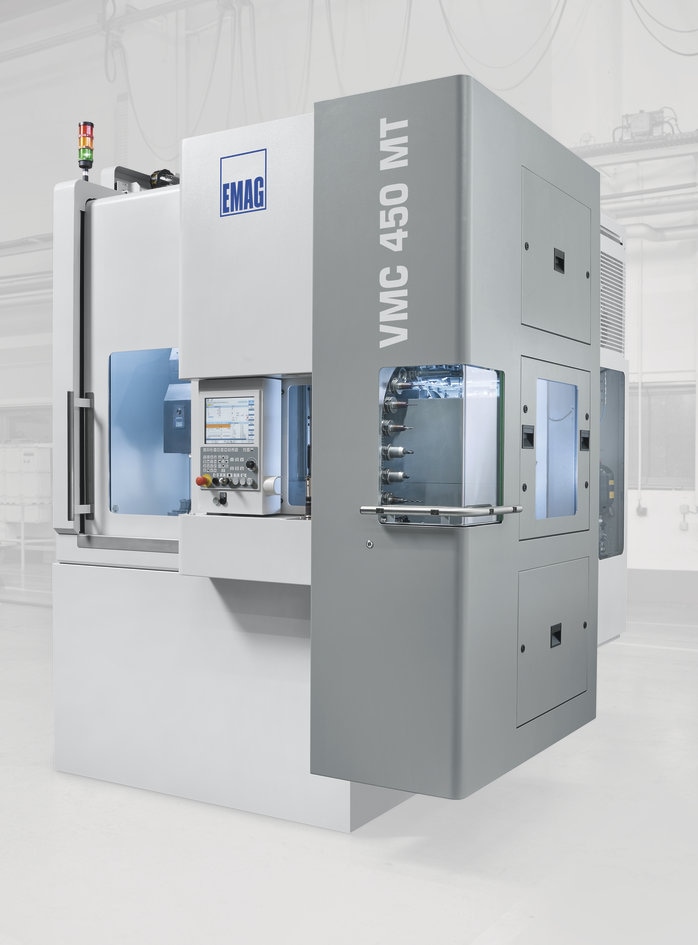

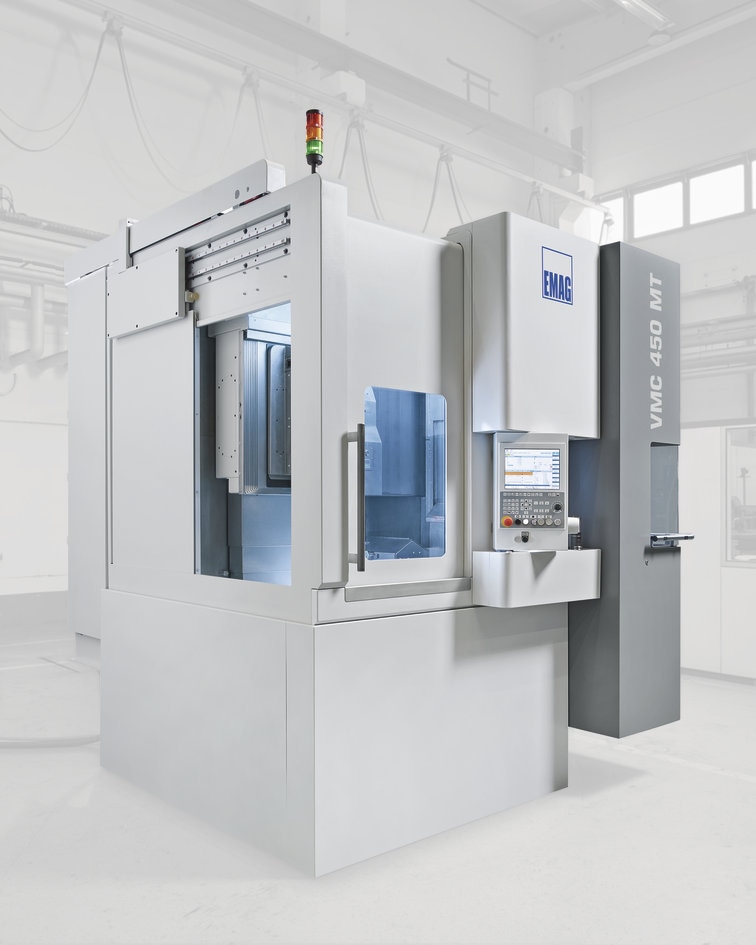

Turn/Mill Machine – VMC 450 MT
