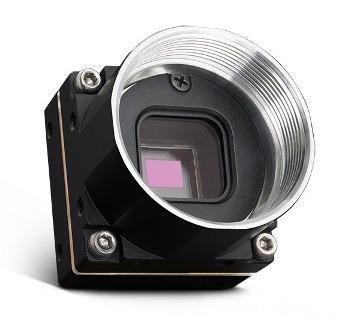

The FLIR Firefly® S camera includes the crucial machine vision features required in a highly compact body.
The camera is lightweight, has a compact size, and consumes minimal power, making it ideal for incorporating into handheld devices. The FLIR Firefly® S offers incredible value by integrating robust on-camera features with the new CMOS sensors.
Small, Light, and Low Power
The FLIR Firefly® S is perfect for integrating into compact, portable, and handheld devices. It has a footprint of 27 x 27 x 14 mm, weighs 20 g, and consumes 2.2 W of power.
Core Machine Vision Capabilities
The FLIR Firefly® S includes the crucial machine vision features, such as triggering, GPIO, and partial image modes.
Exceptional Value
Users can now access the new global shutter CMOS sensors at low starting costs of just USD $199.
Specifications
Source: FLIR Systems
| Overview |
| ADC |
10-bit |
| Chroma |
Mono |
| Frame Rate |
121 |
| Lens Mount |
C-mount |
| Megapixels |
0.4 |
| Part Number |
FFY-U3-04S2M-C |
| Pixel Size |
6.9 |
| Quantum Efficiency |
64 (530 nm) |
| Readout Method |
Global shutter |
| Resolution |
750 x 540 |
| Sensor Format |
1/2.9" |
| Sensor Name |
Sony IMX297 |
| Sensor Type |
CMOS |
| Warranty |
3 years |
| Compliance and Certifications |
| Compliance |
CE, FCC, KCC, RoHS, REACH. The ECCN for this product is: EAR099 |
| Machine Vision Standard |
USB3 Vision v1.0 |
| Environmental |
| Operating Humidity |
20% to 80% (no condensation) |
| Operating Temperature |
0 °C to 85 °C (case) |
| Storage Humidity |
20% to 95% (no condensation) |
| Storage Temperature |
-30 °C to 60 °C (ambient) |
| Features |
| Acquisition Modes |
Single Frame Multi Frame Continuous |
| Exposure Range |
29.0 µs to 30.0 S |
| Flash Memory |
24 MB non-volatile memory |
| Gain Range |
0.0 to 48.0 dB |
| Image Buffer |
32 MB |
| Image Processing |
Gamma, lookup table, denoise, and sharpness |
| Partial Image Modes |
ROI |
| Serial Port |
1 (over non-isolated I/O) |
| User Sets |
2 user configuration sets for custom camera settings |
| Performance |
| Absolute Sensitivity Threshold (y) |
7.49 |
| Dynamic Range dB |
68.93 |
| Saturation Capacity (e-) |
20925 |
| Temporal Dark Noise (e-) |
6.99 |
| Physical |
| Auxiliary Output |
3.3 V, 120 mA maximum |
| Dimensions [W x H x L] |
27 mm x 27 mm x 14.5 mm |
| Interface |
USB 3.1 Gen 1 |
| Mass |
20 g |
| Non-isolated I/O Ports |
4 bi-directional |
| Power |
| Power Consumption |
2.2 W |
| Power Requirements |
5 V via USB 3.1 interface |
| Recommended System Configuration |
| CPU |
3.1 GHz or equivalent CPU |
| Hard Drive |
200 MB hard drive space |
| Operating System |
Windows or Linux (32–bit or 64–bit) |
| Port |
USB3 Port |
| RAM |
4 GB RAM or more |
Accessories
Cables
- USB 3.1 locking cable (cast metal connectors)
- USB 3.1 locking cable
GPIO Cables
- JST GPIO connector for Firefly S/DL and BFS-BD
Host Adapters
- USB 3.1 host controller card
Tripod Adapters
- Tripod adapter for Firefly
