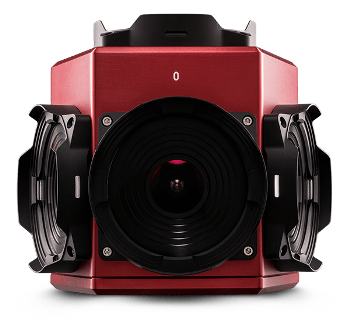

FLIR Systems’ Ladybug5+ spherical vision system ensures the maximum quality and accuracy in spherical 360° imaging. The system exhibits the capability to achieve a magnificent 4k60 or 8k30 of content.
FLIR Systems’ Ladybug5+ spherical vision system ensures the maximum quality and accuracy in spherical 360° imaging. The system exhibits the capability to achieve a magnificent 4k60 or 8k30 of digital spherical and panoramic videos, live The Ladybug5+ system features excellent global shutter sensors and patented calibration, thus ensuring an accuracy level of 2 mm at 10 m. The Ladybug SDK ensures a wide array of functionalities, which enable spherical content to be recorded, processed, and exported easily by users for applications requiring synchronization of video images including terrain mapping, building management, news, event, and sports coverage, entertainment, and virtual reality.
Specifications
Source: FLIR Systems
| Overview |
| ADC |
12-bit |
| Chroma |
Color |
| Color |
Anodized Black |
| Field of View |
90% of full sphere |
| Frame Rate |
14.5 |
| Megapixels |
30 |
| Part Number |
LD5P-U3-51S5C-B |
| Pixel Size |
3.45 |
| Readout Method |
Global shutter |
| Resolution |
2048 × 2464 |
| Sensor Format |
2/3" |
| Sensor Name |
Sony IMX264 |
| Sensor Type |
CMOS |
| Compliance and Certifications |
| Compliance |
CE, FCC, KCC, RoHS. The ECCN for this product is: EAR099. |
| Machine Vision Standard |
IIDC v1.32 |
| Warranty |
2 years |
| Environmental |
| Environmental Protection |
IP65 |
| Operating Humidity |
20 to 80% (no condensation) |
| Operating Temperature |
-20° to 50°C |
| Storage Humidity |
20 to 95% (no condensation) |
| Storage Temperature |
-30° to 60°C |
| Features |
| Exposure Range |
0.02 ms to 2 seconds |
| Flash Memory |
1 MB non-volatile memory |
| Gain Range |
0 dB to 18 dB |
| Image Processing |
Shutter, gain, white balance, gamma and JPEG compression, are programmable via software |
| Trigger Modes |
Standard, skip frames, overlapped, multi-shot |
| User Sets |
2 memory channels for custom camera settings |
| Imaging |
| Focus Distance |
~200 cm. Objects have an acceptable sharpness from ~60 cm to infinity |
| Optics |
6 high quality 4.4 mm focal length lenses |
| Spherical Distance |
Calibrated from 2 m to infinity |
| Performance |
| Dynamic Range dB |
70 |
| Temporal Dark Noise (e-) |
2.3 |
| Physical |
| Auxiliary Output |
3.3 V, 150 mA maximum |
| Interface |
USB 3.1 Gen 1 |
| Mass |
3.0 kg |
| Non-isolated I/O Ports |
2 bi-directional |
| Opto-isolated I/O Ports |
1 input, 1 output |
| Power |
| Power Consumption |
13 W |
| Power Requirements |
12-24 V |
| Recommended System Configuration |
| CPU |
3.1 GHz Dual / Quad Core CPU |
| Dimensions (Diameter x Height) |
197 mm × 160 mm |
| Operating System |
Windows 7, 8 or 10, 64-bit |
| Port |
USB 3 Port |
| RAM |
8 GB RAM or more |
| Video Card |
NVIDIA Video Card 512 mb |
Accessories
Cables
- USB 3.1 Locking Cable
- USB 3.1 Locking Cable (cast metal connectors)
- Hirose LF Connector
Host Adapters
- USB 3.1 Host Controller Card
Hubs and Repeaters
