The 2μm series from Boston Micro Fabrication is the highest-resolution system and is ideal for applications requiring tight tolerances and ultra-high resolution. It is consistent with an extensive range of materials, hence the 2μm series is known to be the ultimate choice for prototyping parts that seem true to CAD and look very much like the finished product.
All 2μm Series Printers
Source: Boston Micro Fabrication
| LIGHT SOURCE |
OPTICAL RESOLUTION |
LAYER THICKNESS |
SURFACE FINISH |
INPUT DATA FILE FORMAT |
| UV-LED (405 nm) |
2µm |
5µm ~ 20µm |
0.4-0.8µm Ra (top)
1.5-2.5µm Ra (side) |
STL |
| |

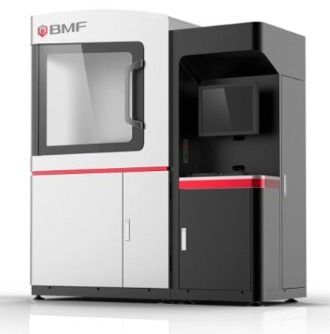

microArch® S130 |
microArch® S230 |
| PRINTING MATERIAL |
Photosensitive Resin |
Photosensitive Resin, Ceramic |
| BUILD SIZE |
50 x 50 x 10 mm |
50 x 50 x 50 mm |
| INPUT DATA FILE FORMAT |
STL |
STL |
| EXTERNAL DIMENSIONS |
1720 x 750 x 1820 mm |
1720 x 750 x 1820 mm |
| WEIGHT |
550 kg |
660 kg |
| CERTIFICATIONS |
CE |
CE |
The Features of the microArch S230
Video Credit: Boston Micro Fabrication
Features
- Real-time image monitoring, autofocus, and exposure compensation
- Could be tailored to a high-resolution optical system and movement platform (with a resolution down to 2μm)
- The step-and-repeat process enables the achievement of both large-area and high resolution
- Regulated processing technology to generate highly accurate 3D-printed objects
- Operation software comes along with a custom parameter setting and microArch graphic interface system
The microArch 3D printing system can determine ultra-high resolution, large-area printing utilized in industrial prototyping and short-run production.
