Admesy’s Prometheus Viewfinder Spectrometer is a brand-new flagship for utmost display measurements. Admesy’s spectroradiometer with a combined viewfinder is the true multipurpose display measurement solution.
The electronic viewfinder enables rapid and accurate alignment of the 1 mm to 1.5 mm measurement spot with the close-up lens. Depending on the Neo high-end spectrometer, the optical performance fulfills the highest expectations. A combined flicker sensor completes the entire package. Similar to all Admesy series, Prometheus is sturdy for 24/7 use and simple to combine in production surroundings.
Electronic Viewfinder
The combined electronic viewfinder makes use of the fixed Pritchard-Optics. The consecutive camera picture enables simple and rapid alignment of the measurement spot. It is also optional for the camera pictures to be stored with the measurement for clear documentation.
Image Credit: Admesy
1 mm to 1.45 mm Measurement Spot
With the availability of the fixed close-up lens, the measurement spot is tailored to quantify the best details between 1 mm and 1.45 mm. By selecting a corresponding measurement distance, it is possible to achieve different spot sizes. The brief measurement distance is 57 mm and the longest is 71 mm.
Image Credit: Admesy
Flicker and Waveform
The Prometheus Spectrometer is a true all-in-one solution with a higher sampling speed of 186,567 samples/second. In addition to the spectrum, users can quantify flicker, adjust V-Com, or evaluate the waveform of the display signal.
Image Credit: Admesy
Highlights
- Viewfinder with Pritchard mirror design
- Camera visualizes the measurement spot on the screen
- Spot size ranges from 1 mm to 1.45 mm, depending on the measurement distance (57 mm to 71 mm)
- Extremely low polarization sensitivity
- Low noise and low stray light
- Quick measurements, even at the least luminance levels
- Wavelength and radiance can be calibrated
- Internal wavelength monitoring function for health and self-correction of minor wavelength drifts—this is all for utmost precision
- Outstanding linearity, internally compensated within ±0.5 %
- Dark current compensated, virtually zero over the complete integration range
- Auto-range function available
- Super-fast flicker measurement (186,567 samples/second) with accurate V(λ) filtered photodiode
- Internal mechanical Shutter and OD filter wheel for a large dynamic range
- Robust housing, improved for mounting and safety in tough production environments
- USB 3, RS232, Ethernet connections, and trigger in and out for perfect system integration
- Internal calculations performed for the majority of the standard parameters help save processing power in production surroundings
- Supports Windows, macOS, and Linux integration
- Automatic motorized focus, no requirement for manual focus
- Supports Matlab, Labview, and Python or virtually any programming language besides Visual Studio (C#, C++)

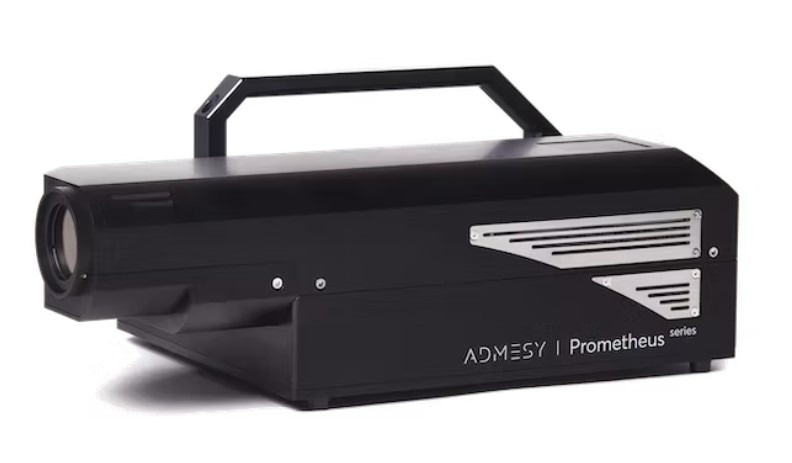

Prometheus Viewfinder Spectrometer—close up lens. Image Credit: Admesy
PrometheusSERIES
Prometheus Viewfinder Spectrometer—1° Measurement Angle
Image Credit: Admesy
Admesy’s Prometheus Viewfinder Spectrometer is a brand-new flagship for utmost display measurements. The spectroradiometer from Admesy comes with a combined viewfinder and is the true all-in-one display measurement solution.
The electronic viewfinder enables rapid and accurate alignment of the 1° measurement spot with the standard lens or the 1 mm to 1.5 mm measurement spot with the macro lens. The optical performance fulfills the greatest expectations based on the Neo high-end spectrometer.
An integrated flicker sensor finishes the whole package. Like all Admesy series, Prometheus is sturdy for 24/7 use and is simple to combine in production surroundings.
Electronic Viewfinder
The combined electronic viewfinder makes use of the established Pritchard-Optics. The resulting camera picture enables simple and rapid alignment of the measurement spot. The camera picture can be saved with the measurement for unmistakable documentation.
Image Credit: Admesy
1 Degree Measurement Spot
The 1.2° measurement angle enables the measurement of fine details. By selecting a matching measurement distance different spot sizes are obtained. The shortest measurement distance of 250 mm leads to a spot size of 4.6 mm.
Image Credit: Admesy
Flicker and Waveform
With a higher sampling speed of 186,567 samples/second, the Prometheus Spectrometer is considered a true all-in-one solution. In addition to the spectrum, users can quantify flicker, adjust V-Com or evaluate the waveform of the display signal.
Image Credit: Admesy
Highlights
- Viewfinder with Pritchard mirror design
- Low noise and low stray light
- The camera allows one to see the measurement spot on the screen
- Wavelength and radiance calibrated
- 1° measurement angle enables various measurement distances, starting from 250 mm
- Very low polarization sensitivity
- Quick measurements, even at the least luminance levels
- Internal wavelength monitoring function for health and self-correction of minor wavelength drifts—this is all for utmost precision
- Outstanding linearity, internally compensated within ±0.5 %
- Dark current compensated, virtually zero over the complete integration range
- Super-fast flicker measurement (186,567 samples/second) with accurate V(λ) filtered photodiode
- Auto-range function available
- Internal mechanical Shutter and OD filter wheel available for a very big dynamic range
- Automatic motorized focus, no requirement for manual focus
- Supports Windows, macOS, and Linux integration
- Internal calculations for the majority of the common parameters help save processing power in production environments
- Supports Labview, Matlab, and Python or virtually any programming language, besides Visual Studio (C#, C++)
- Strong housing, improved for mounting and safety in harsh production surroundings
- USB 3, RS232, Ethernet connections, and trigger in & out for ideal system integration
Prometheus Viewfinder Spectrometer—1° measurement angle. Image Credit: Admesy
