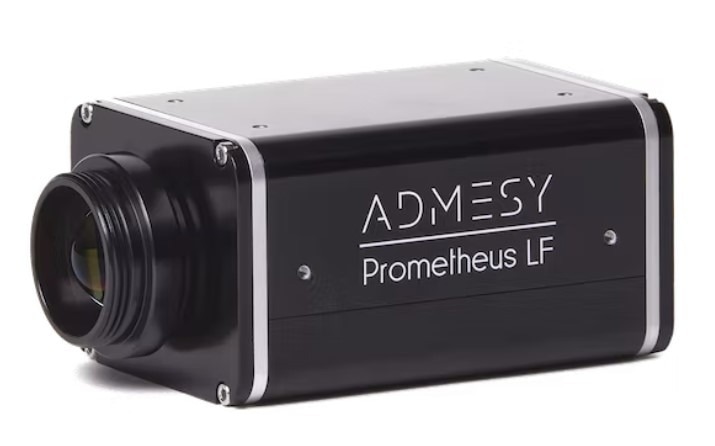

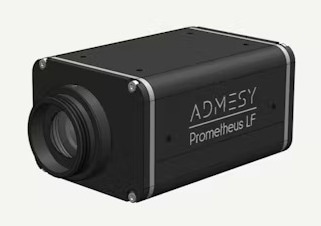

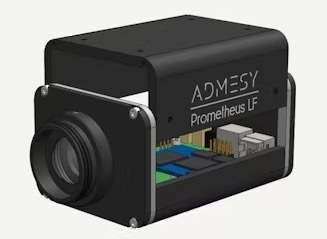

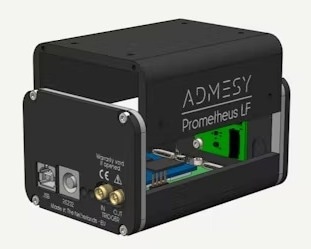

Prometheus LF 17 mm from Admesy is an ultra-speed photometer ideally suited for display measurements for waveform assessment and greatest resolution flicker measurements.
The Speed of Light
Highest sampling speed
The fastest commercially available luminance and flicker. With 800,000 samples/second, the Prometheus LF 17 is over four times quicker compared to the tried and trusted Asteria.
Image Credit: Admesy
Near-perfect V(λ) filters
With the custom-produced filters, the company achieves nearly ideal transmission characteristics for the luminous efficiency V(λ) function. This leads to enhanced measurement precision.
Image Credit: Admesy
Easy to integrate
Similar to all the measurement solutions, Prometheus LF is simple to integrate into production or R&D workflow. It is the optimal solution for users’ applications. Hardware and software will be combined in a snap.
Image Credit: Admesy
Highlights
- Highly precise luminance measurements according to the human eye (CIE1931 luminosity function)
- Quantify high and low frequencies simultaneously
- Comes with a user-calibration function
- Auto-range function available
- Flicker sample rate (800,000 samples per second) and large memory size
- Extremely rapid luminance measurement even at a low luminance level
- Flicker measurement standards:
- JEITA, VESA
- Contrast min./max./RMS
- Supports Windows, macOS, and Linux integration
- Trigger in- and output available for inline applications
- Supported in all significant programming languages (Labwindows, Labview, Visual Studio C++/C#) and other languages that assist VISA
Image Credit: Admesy
