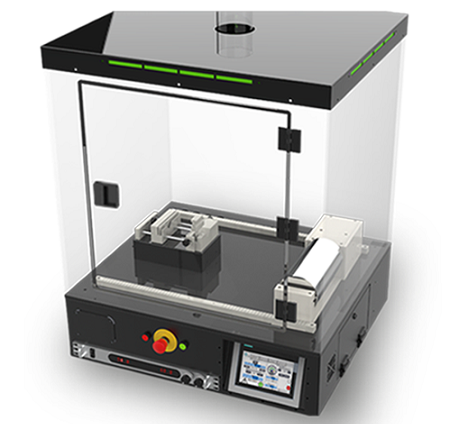

Spingenix SG10 from Okyay Tech is a basic system for beginner and intermediate users.
Brief Explanation
SG10 is a versatile research tool designed for university research laboratories. SG10 is a benchtop system with an efficient design to occupy minimum real estate in your laboratory. SG10 uses Matsusada 0-30kV continuously tunable power supply and it is equipped with a Siemens touch-panel display and Siemens PLC electronics for industry-level reliability.
The built-in software is user-friendly and it can be operated with minimal training. All process parameters can be controlled and monitored from the graphical user interface with an option to create and save recipes. There are also options for upgrades on this system at the time of system purchase or field upgrade after purchase.
Standard recipes to manufacture nanofibers are available from Spingenix as part of the vision for a strong commitment to the scientific and technical support of the users.
Image Credit: Spingenix
Unique Properties

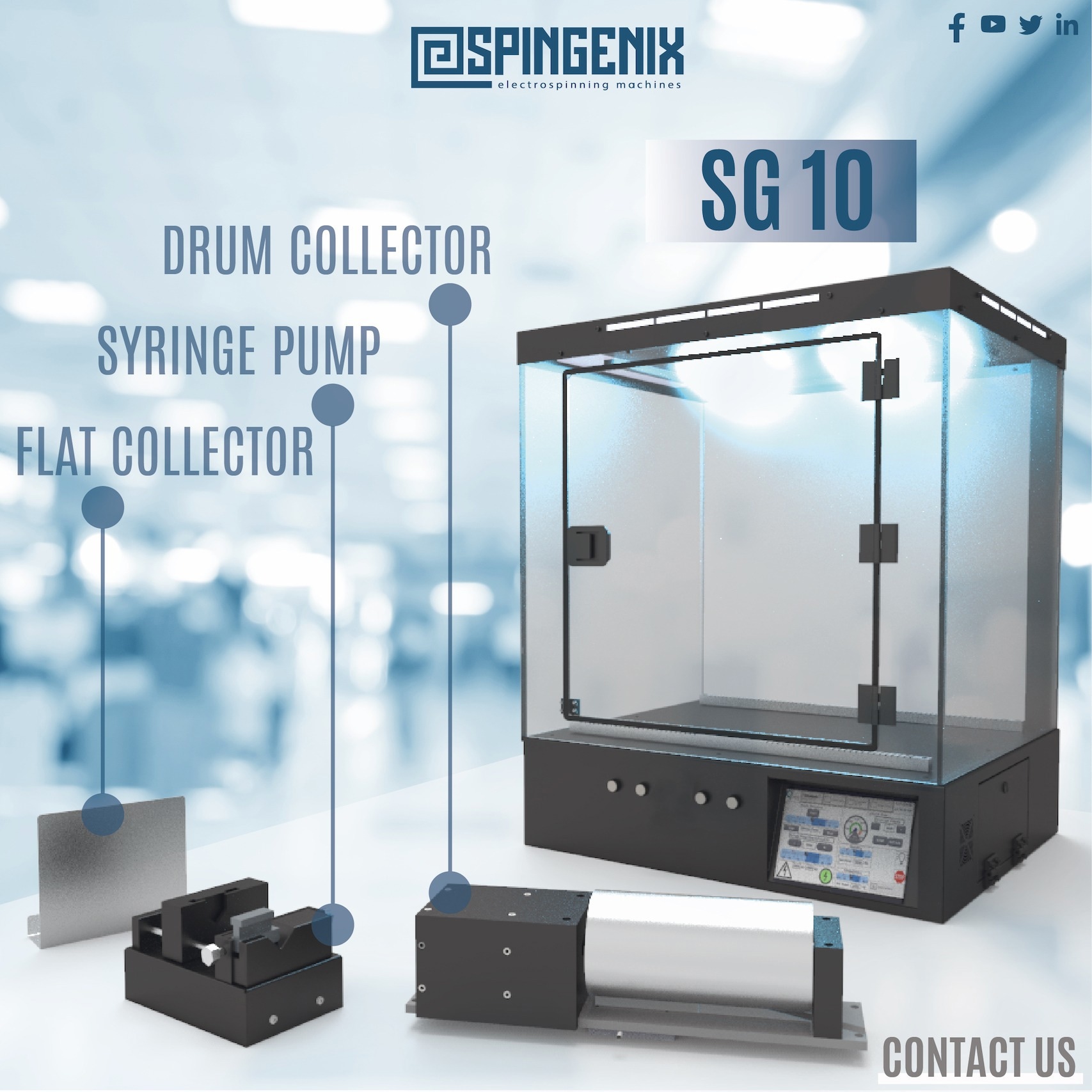

- High throughput production with special single nozzle
- Flat collector for nanofiber deposition
- Easy to use practical control via touch screen panel
Optional Accessories
Different Diameter Needles
Electrospinning needles with the following diameters: (13G, 14G, 15G, 16G, 17G, 18G, 19G, 20G, 21G, 22G, 23G).
Coaxial Nozzle
- Specially designed coaxial nozzle to produce core-shell, hollow and bi-component nanofibers
- Custom sizes available (e.g., Inner Diameter: 0.8 mm, Outer Diameter: 1.6 mm)
- Extra syringe pump
Shelf System
The shelf system is used to organize accessories and extra parts within the cabin.

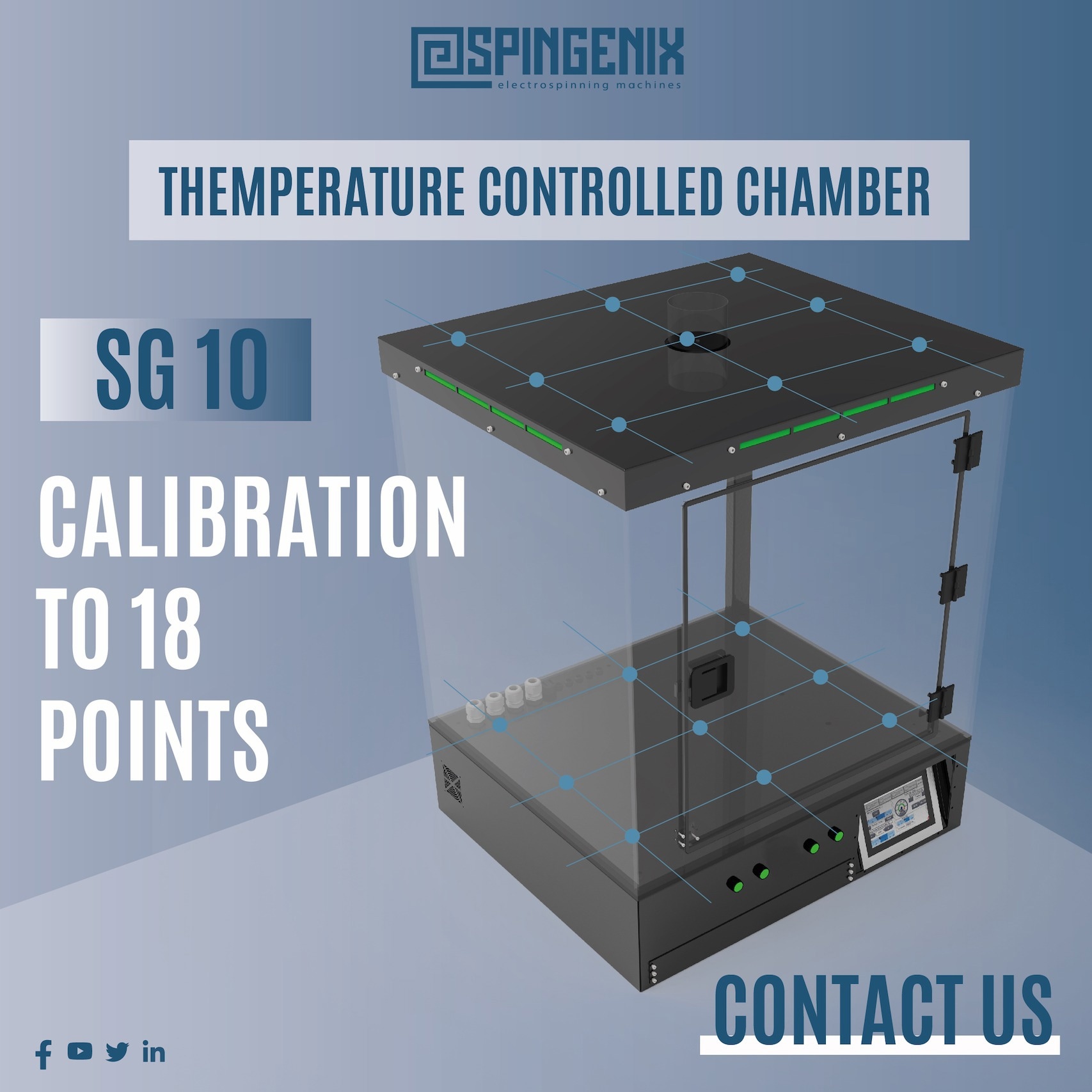

Climate Controlled Chamber
- Fully automated and GUI-integrated
- Cooling/Heating 15 °C–45 °C
- +/–1C Siemens PLC PID control
- Humidity control 20%–50% Rh
- +/– 2% Rh Siemens PLC PID control
Rotating Mandrel Collector
6 mm diameter rotating shaft collectors for tubular nanofiber membrane production.
Bio Sterilization
Deep ultraviolet light is used to steralize the cabin for the production of biocompatible nanofibers.
Fiber Curing
Fiber curing system while producing nanofibers.
Taylor Cone Imaging System
- USB controlled camera, objective lens, and mounts
- Meticulous monitoring of the Taylor Cone to uncover underlying mechanisms
Extended Warranty
- The warranty period for standard systems is one year. Furthermore, an extended warranty is an option to cover the machine.
- Annual maintenance contract
