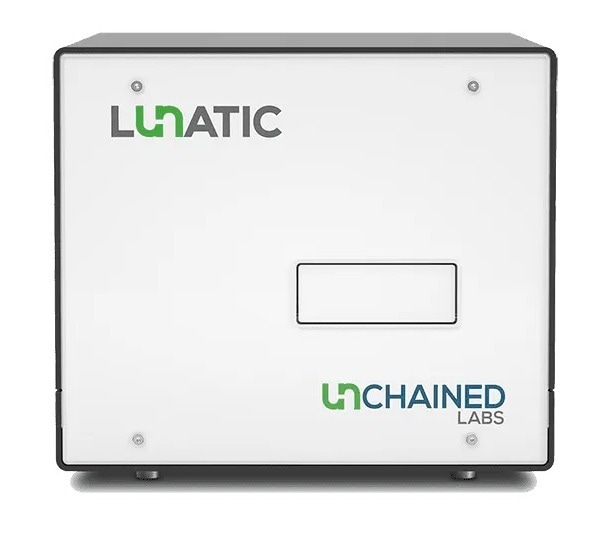

Lunatic, the cutting-edge UV/Vis absorbance spectrometer, simplifies the process of batch quantifying proteins, DNA, and RNA effortlessly. With just 2 μL of the sample and within 10 minutes, users can measure up to 96 samples without diluting, even when dealing with high concentrations.
Lunatic ensures precise UV/Vis quantification for biologics and genomics. Load the samples; the rest is as easy as drop, load, and read.
- 2 µL volume
- 96 samples
- SBS plate format
- 10 minute processing time
Capabilities
No B.S. Workflow
Users can skip the sample prep, cleaning, and worrying about cross-contamination or evaporation—the samples will sit tight for up to two hours. The Lunatic UV/Vis plate reader runs 96 samples in just 10 minutes.

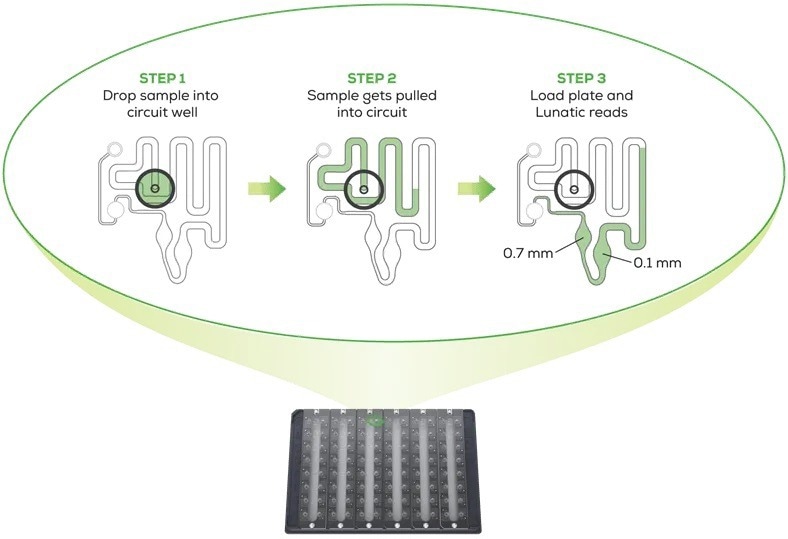

Every microfluidic circuit has two fixed pathlengths built-in to cover an extensive dynamic range of 0.03–275 OD. Users load up their samples and get high-quality outcomes.
Image Credit: Unchained Labs
Max Out Biologic

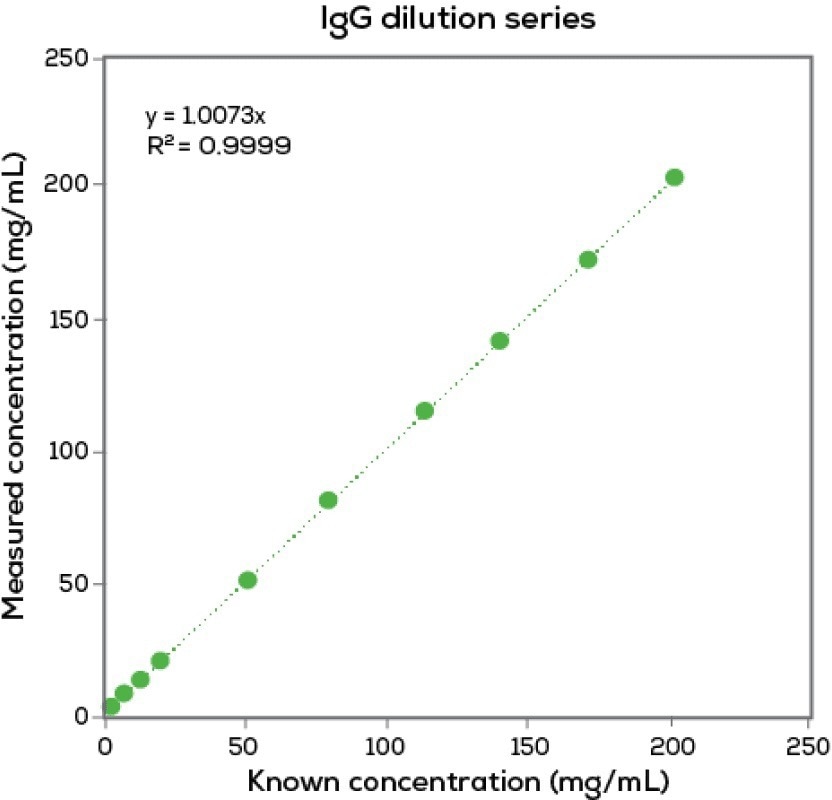

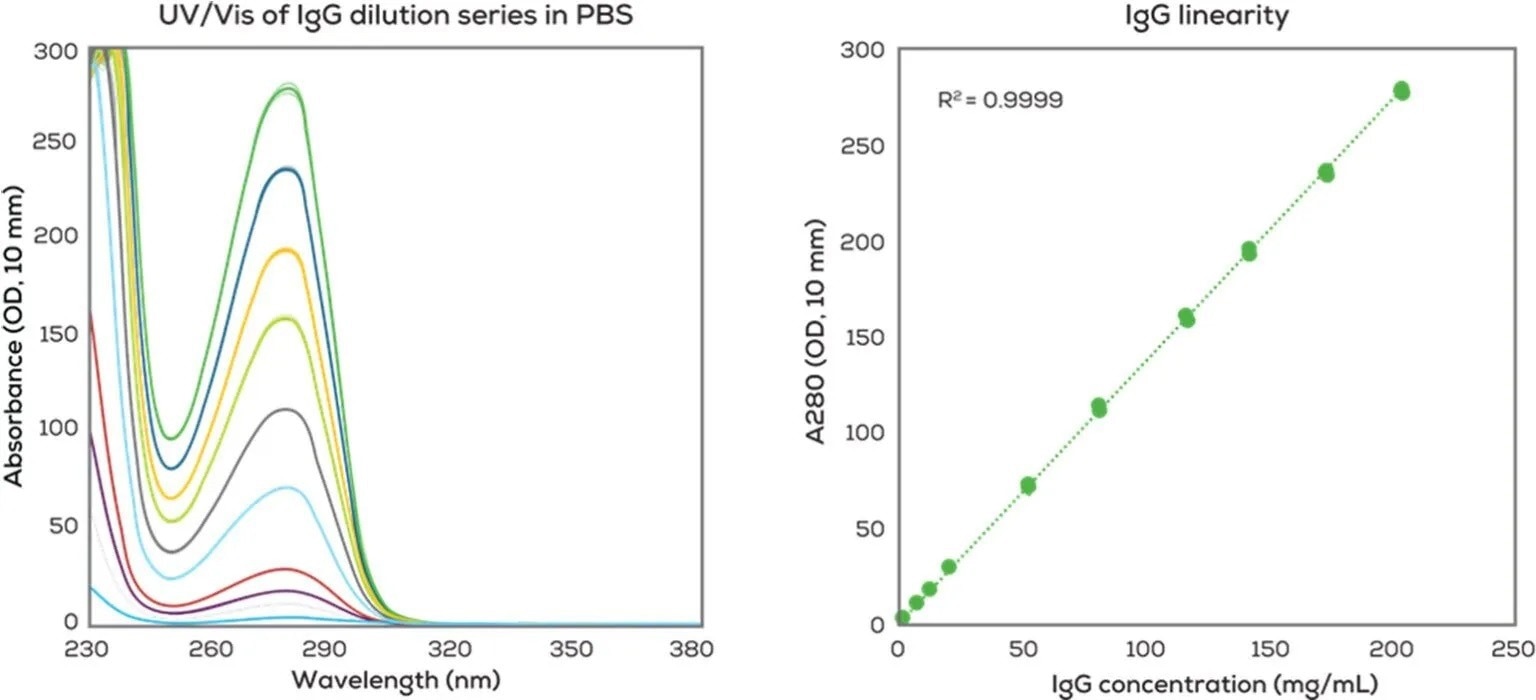

Lunatic is the only UV/Vis absorbance spectrometer system available to quantify biologics at high throughput and high concentration. It has dynamic range that spans from 0.02 mg/mL to 200 mg/mL (mAb). It is possible to run any protein without diluting again, and cleanups are not required.
Image Credit: Unchained Labs
High-Quality Data

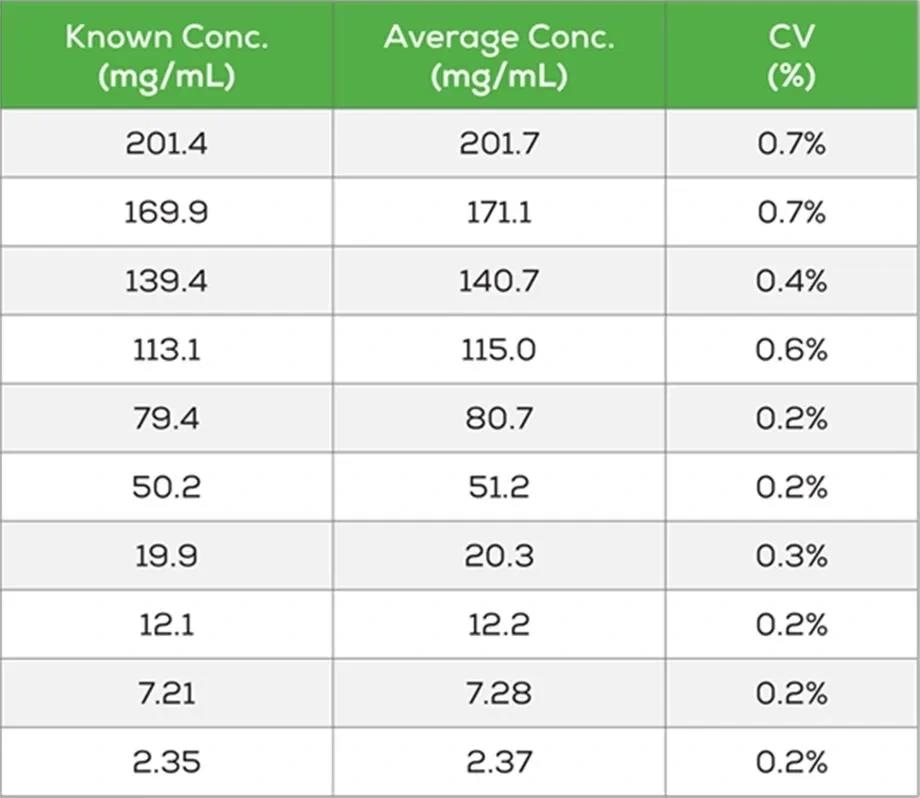

Users can get spot-on precision within 1% and accuracy within 2%. With the help of two fixed path lengths, Lunatic provides data at low and high protein concentrations and nails the anticipated concentrations at all times.
With the smallest sample size, the highest throughput, and extremely accurate outcomes, Lunatic is the best tool available for protein quantification.
Image Credit: Unchained Labs
Source: Unchained Labs
Accuracy that Shows Off

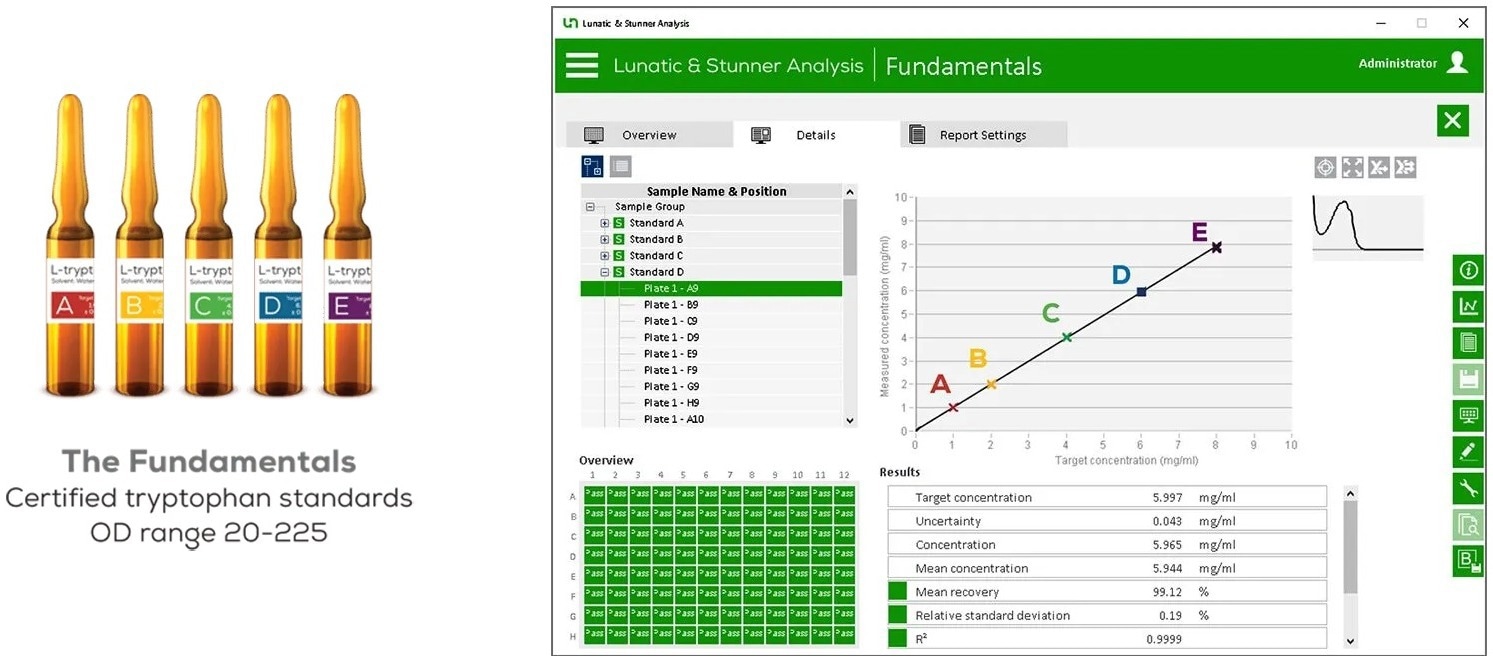

Utilizing the Fundamentals tryptophan standards, the precision, accuracy, and linearity of the instrument is proven at all times at the protein-relevant 280 nm wavelength and OD range of 20–225. Users can be confident with each sample.
Image Credit: Unchained Labs
Downstream Ready

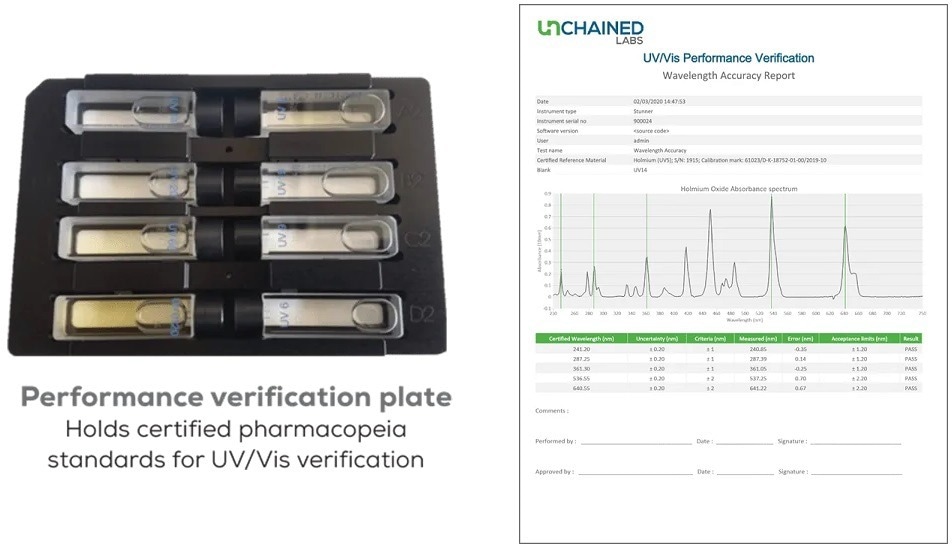

Achieve exceptional absorbance accuracy, precision, linearity, wavelength accuracy, stray light control, and resolution while surpassing the USP & Ph. Eur. UV/Vis standards. Performance meets these rigorous criteria through verification measurements using independently certified NIST standards. Lunatic is prepared and waiting for the user's validation process, ready to elevate their quality control standards.
Image Credit: Unchained Labs
Put it on Lockdown

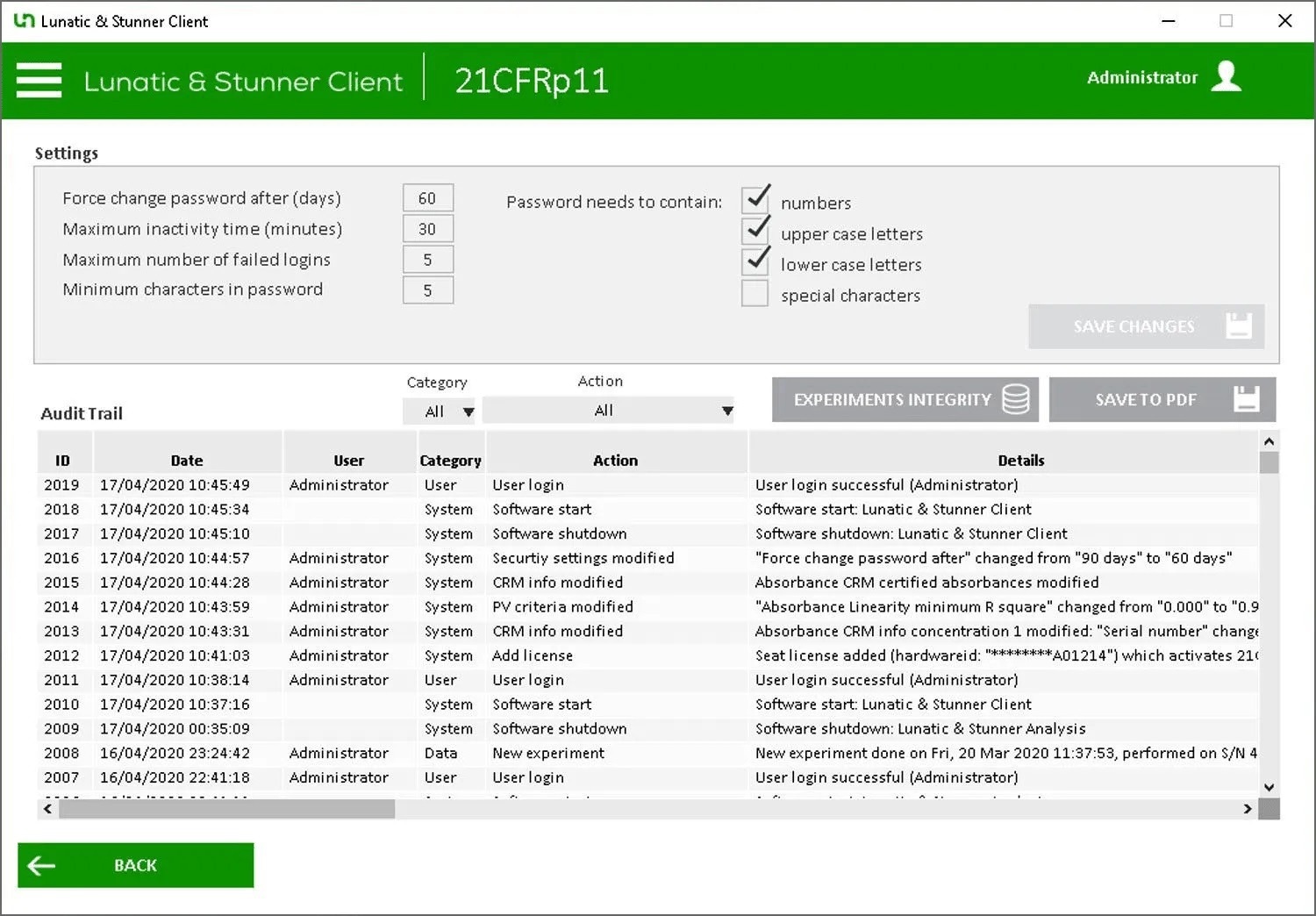

Lunatic’s software hooks labs up with 21 CFR Part 11 compliant features. The entire package provides electronic signatures, password protection, and a full audit trail.
Image Credit: Unchained Labs
Dig Up Genomic’s Dirt
DNA and RNA samples can be challenging to work with. However, with the Lunatic analysis software, users can gain a clear view of the impurities that traditional A260 measurements often misidentify as DNA or RNA.
This software accurately assesses the presence of RNA, turbidity, beads, and other interfering elements affecting nucleic acid quantification. Researchers can leave behind time-consuming, dye-based preparation methods, and gain immediate insights into the quality of the samples.
Image Credit: Unchained Labs
Set it and Forget It

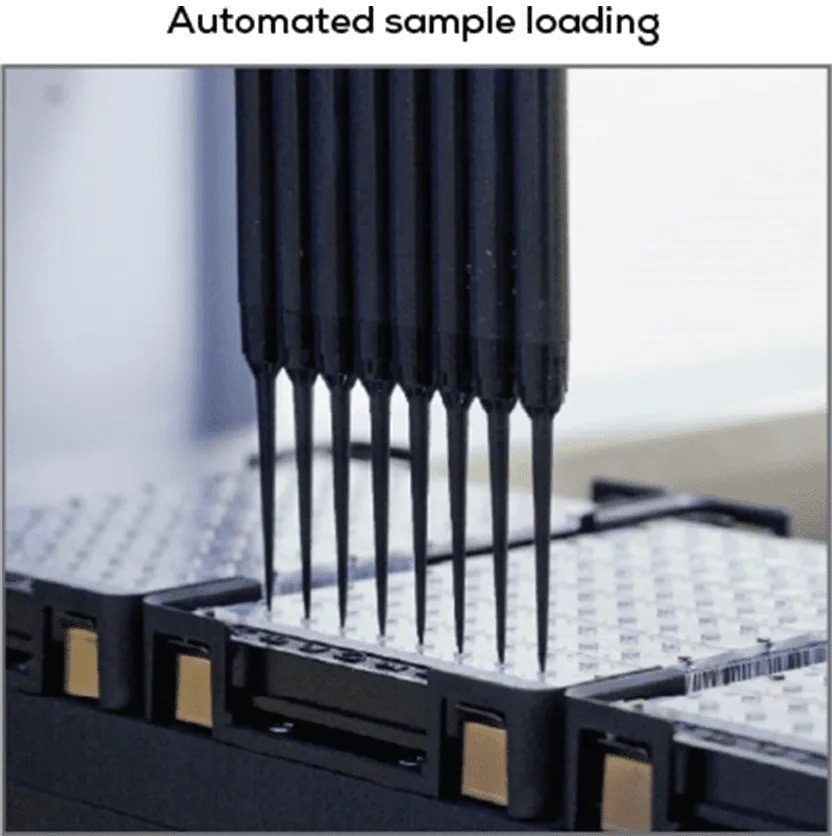

Lunatic has the potential to talk to robots. Hook it up with any liquid handler system and run measurements entirely hands-free with the API setup, keeping more of the precious sample for the rest of the workflow.
Image Credit: Unchained Labs
