The Orbis line consists of dual-action fine crushers built by sample preparation professionals with decades of expertise. The dual action jaws’ effectiveness allows samples to be reduced by up to 55 times their original size. The flagship OM100 was created with major mining clients in mind, and it can take drill core samples down to 2 mm in a single pass.
Main Features
- Easy to clean and maintain
- Enhanced safety features
- Customized sample collection, such as jars for photon assay
- Large dual-action jaws for quicker processing
- Jaws are easily adjustable and can be reversed for extended life.
- Front loading hopper with large capacity
- Large motor capacity for added power and torque
OM50
The OM50 is a dependable and sturdy crusher that can achieve up to 90% passing 2 mm in a single pass. The OM50 is offered as a standalone crusher or with a rotary or linear sample divider.
Main Features
- Large 300 mm dual action jaws for faster processing times
- Jaws can be reversed for a long life and are simply adjustable
- A front-loading hopper with a maximum sample capacity of 10 kg
- 70 mm sample can be crushed to 2 mm in a single pass
- 5.5 kW motor for added power and torque
- Simple to clean and maintain
- Improved safety features
- Customized sample collection, such as jars for Photon Assay
OM50 WM
The 400 mm wide jaws and 7.5 kW motor of the Wide Mouth crusher increase power and up to 25% quicker processing times.
The OM50 WM is a dependable and durable crusher that can achieve up to 90% passing 2 mm in a single pass, meeting all the necessary fine crushing requirements. The OM50 WM can be ordered with a rotary or linear sample divider or as a standalone crusher.
Major Features
- Front loading hopper that stores up to 10 kg of sample
- Jaws that are readily adjustable and can be reversed for extended life
- Large 400 mm dual action jaws for quicker processing times
- 70 mm sample that can be crushed to 2 mm in a single pass
- It is simple to clean and maintain
- Enhanced safety features
- Customizable sample collection, such as jars for Photon Assay
- 7.5 kW motor for enhanced power and torque
OM100
The Orbis OM100 is a dual action fine jaw crusher that can reduce samples down to 90% passing 2 mm in one pass from a peak size of up to 110 mm. The OM100 is made to efficiently crush larger samples, including core, to minus 2 mm in a single pass. It can be purchased with a rotary or linear sample divider or as a standalone crusher.
Main Features
- For quicker processing times, use the large 400 mm dual action jaws
- Jaws can be reversed for a long life and are simply adjustable
- Crushing a 110 mm sample to 2 mm in one pass is possible
- Simple to maintain and clean
- Enhanced safety features
- Custom sample collection, such as those used in photon assay
- 7.5 kW motor for increased torque and power
- Front loading hopper that can accommodate up to 15 kg of sample
Specifications
Source: XRF Scientific
| |
OM50 |
OM50 WM |
OM100 |
| Motor power |
5.5 kW, 3 phase |
7.5 kW, 3 phase |
7.5 kW, 3 phase |
| Maximum input lump size |
70 mm |
70 mm |
110 mm |
| Product size |
-2 mm passing up to 90% (sample size dependent) |
-2 mm passing up to 90% (sample size dependent) |
-2 mm passing up to 90% (sample size dependent) |
| Jaw width |
300 mm |
400 mm |
400 mm |
| Hopper capacity |
10 kg |
10 kg |
15 kg |
| Wear Plates |
High or Low Chrome |
High or Low Chrome |
High or Low Chrome |
| Dust extraction |
50 mm Dust Outlet |
50 mm Dust Outlet |
50 mm Dust Outlet |
| Weight |
750 kg |
850 kg |
950 kg |
| Width x Height x Depth |
730 x 1200 x 1300 mm |
830 x 1200 x 1300mm |
830 x 1200 x 1300 mm |
Shipping Dimensions
Width x Height x Depth |
1200 x 1200 x 1500 mm |
1200 x 1200 x 1500 mm |
1200 x 1200 x 1500 mm |
| Options |
RSD, LSD, Smart RSD and Smart LSD |
RSD, LSD, Smart RSD and Smart LSD |
RSD, LSD, Smart RSD and Smart LSD |

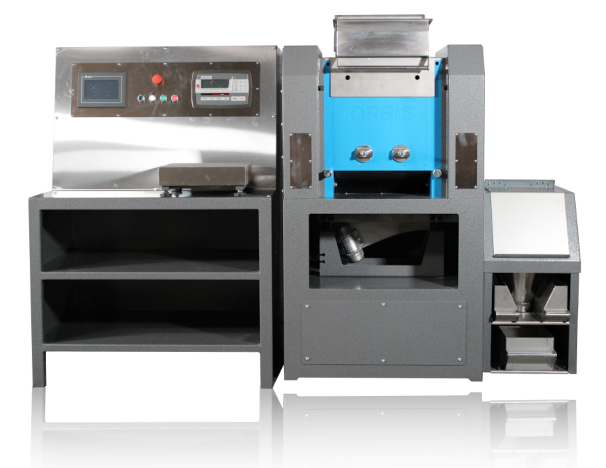

Orbis OM100 Dual Smart Crusher
