Puncture fixtures are used to evaluate the puncture resistance of materials such as plastic films, fabrics, and geomembranes. ADMET offers customized puncture fixtures, or customers can select fixtures designed according to specific testing methods.

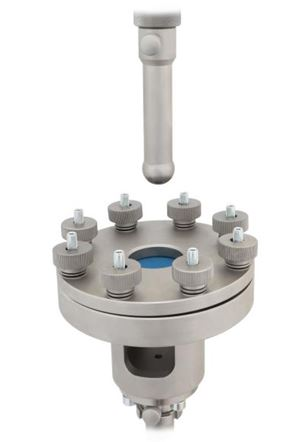

FS-PT-ASTM D751 Puncture Fixture
Image Credit: Admet
Testing Standards
ASTM D751 Section 18 & Section 22
Fixture Configurations
ASTM D751 includes two distinct sections dedicated to evaluating the integrity of coated fabrics through burst and puncture testing. Section 18 specifies the use of a spherical plunger for determining the bursting strength, whereas Section 22 employs a sharper puncture probe to measure the puncture resistance.
Both assessments are performed in a compressive mode, with the plunger or probe descending towards the specimen, securely positioned within the FS-PT-ASTM D751 specimen holding ring. This holding ring is consistently used for both testing methods as prescribed by ASTM D751.
FS-PT-ASTM D3787 Puncture Fixture

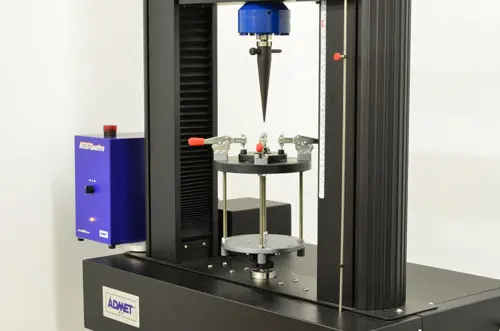

eXpert 7603 performing puncture testing, capable of ASTM D3787. Image Credit: Admet
Testing Standard
ASTM D3787
Fixture Configurations
FS-PT-ASTM D3787 uses a constant-rate-of-traverse (CRT) ball burst test to determine the bursting strength of textiles. It includes a specimen holding ring measuring 44.45 mm (1.75 in) in diameter and a probe with a radius of 12.7 mm (0.5 in). Textiles or fabrics with a high degree of ultimate elongation can be tested using this method. 20 kN and 50 kN fixture options are also available.

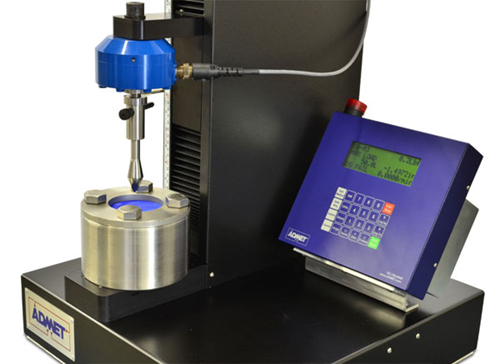

FS-PT-ASTM D4833 Puncture Fixture
Image Credit: Admet
Testing Standard
ASTM D4833
Fixture Configurations
The FS-PT-ASTM D4833 features an 8 mm diameter probe and a 45 mm diameter specimen holding ring designed to assess the puncture resistance of geomembranes and similar products. 20 kN and 50 kN capacity fixtures are available.

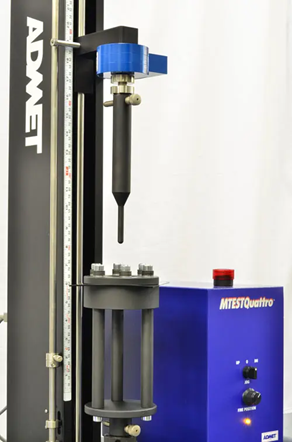

FS-PT-ASTM D5748 Puncture Fixture
Image Credit: Admet
Testing Standard
ASTM D5748
Fixture Configuration
To assess the protrusion puncture resistance of stretch wrap film, FS-PT-ASTM D5748 comprises a specimen holding ring with a diameter of 102 mm and a probe with a 9.5 mm radius.

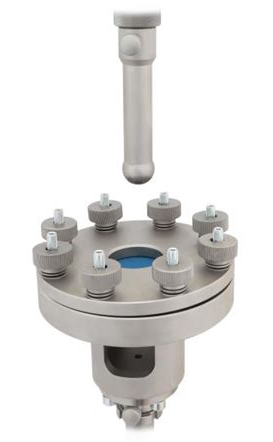

FS-PT-ASTM F1306-SV Puncture Fixture, Small Specimen Version
Packaging puncture test. Image Credit: Admet
Testing Standard
ASTM F1306
Fixture Configurations
The ASTM F1306 standard outlines a test method for measuring the slow rate penetration resistance of flexible barrier films and laminates. ADMET provides the FS-PT-ASTM F1306-SV, designed to test samples up to 35 mm (1.375 inches) in diameter, using a probe with a radius of 1.6mm, as stipulated by the standard. Additionally, for single-column universal testing machines with throat lengths shorter than 203 mm (8 inches), ADMET offers a single-column version of the FS-PT-ASTM F1306 fixtures.
FS-PT-ASTM F1306-LV Puncture Fixture, Large Specimen Version

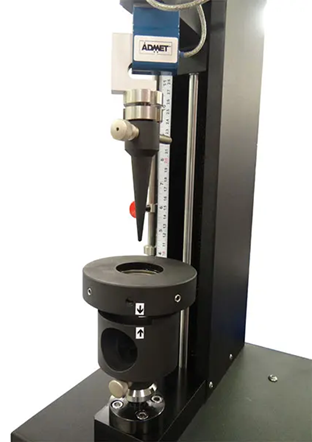

ASTM F1306 on an eXpert 2600 Dual Column Testing Machine. Image Credit: Admet
Testing Standard
ASTM F1306
Fixture Configurations
The ASTM F1306 standard specifies a test method to assess the slow-rate penetration resistance of flexible barrier films and laminates. ADMET provides the FS-PT-ASTM F1306-LV for testing specimens larger than 35 mm (1.375 inches) in diameter, featuring a probe with a radius of 1.6 mm, as defined by the standard. For applications using single-column universal testing machines with throat lengths shorter than 203 mm (8 inches), ADMET also offers single-column versions of the FS-PT-ASTM F1306 fixtures.

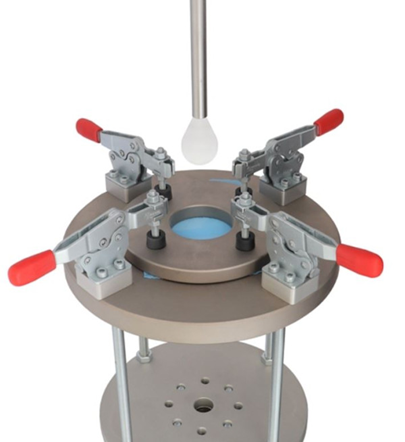

FS-PT Custom Puncture Test Fixture
Image Credit: Admet
Admet specializes in designing, constructing, delivering, and integrating custom mechanical test equipment, including puncture fixtures, tailored to meet the unique testing needs of customers. Admet has developed bespoke puncture fixtures for specific materials and testing applications.
- Choose the diameter of the hole and the plunger
- Plunger Diameter: 2 – 90 mm
- Hole Diameter: 5 – 100 mm
- The plunger diameter and support can be designed to meet most ASTM, DIN, or ISO standards
