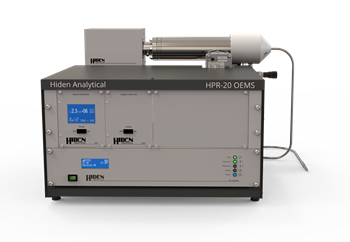

The Hiden HPR-20 for OEMs is a gas analysis system tailored for the continuous examination of evolved gases and vapors in electrochemistry. It tracks changes as a function of the applied potential in real-time.
Overview
El-Cell and other electrochemical cells and headspace sampling can be connected to the ultralow flow real-time sampling capillary.
For most common gases and vapors, including water vapor, the Hiden QIC-ulf quartz-lined ultra-low flow sampling interface, operating at temperatures as high as 200 °C, offers quick response times of less than three seconds.
The standard system's detection capability with a 200 amu mass range is less than 100 parts per billion. The optional 3F series 300 amu system comes with a triple-stage mass filter and can detect up to 5 parts per billion. It is highly recommended for applications that analyze condensable or corrosive species or require optimal abundance sensitivity.
Mass Spectrometers for Electrochemistry Applications Video
Video Credit: Hiden Analytical
Features
- Option for multiple gas and vapor analysis: mass range of 0 to 300 amu
- Reduced spectral fragmentation and easier data interpretation through soft ionization
- Gas sample flow rate options range from 12 µl/min to 16 ml/min.
- The heated capillary inlet is continuously sampled. Heating based on the chosen flow rate
- Real-time, multispecies analysis: 100 ppb to 100% detection
- Reaction times of up to 300 ms
- Quick data collection: 1000 measurements per second is possible
- A wide selection of accessories for sampling
- Interfaces with unique designs that can be used for a variety of OEMS applications
