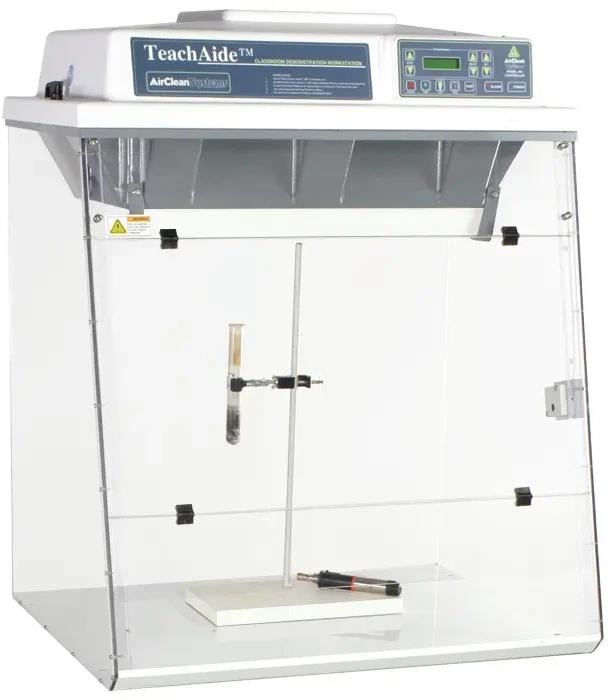

During popular chemical experiments, AirClean® Systems TeachAide ductless classroom demonstration workstations offer a low-cost, safe option to protect students, teachers, and the environment.
Image Credit: Synoptics Ltd
Protection from experiments producing harmful fumes, vapors, particulate matter, or smoke is ensured by bonded carbon and HEPA filters, a robust thermoplastic construction, and the AirSafe™ automated safety controller. A classroom with true 360° visibility encourages full participation.
Image Credit: Synoptics Ltd
Features
- AirSafe automated safety regulator
- Integrated base featuring a deep spill lip
- No ductwork is necessary
- Plugs straight into a conventional 110 V or 220 V electrical outlet; no installation is necessary
- An opaque polycarbonate exterior enabling complete visibility
- Very quiet operation (less than 49 dBA)
- Event timer for the lab
- HEPA filtration to collect particles as small as 0.3 µm
- Gas phase bonded carbon filtration
Benefits
- To guarantee proper filter replacement, use the filter safety lockout
- Flammability-resistant prefilter
- Completely assembled upon shipment
- Certified to CSA C22.2 No. 61010-1, EN 61326-1, and UL 61010-1 standards
- Brushless, sparkless blower is post-filter
- Accidental leaks are adequately contained by deep base
- As the filter and electronics are situated above the workspace, there is little possibility that a chemical spill will reach these delicate locations
- The low airflow alarm alerts the user vocally and graphically
- Monitoring the installed filtration bed in real-time
Options
- Robust trolley/cart with casters that lock for ease of mobility
Dimensions
Source: Synoptics Ltd
inches
| Product # |
External |
| Width |
Depth |
Height |
| ACTA32 |
32" |
25" |
40" |
| ACTA48 |
48" |
25" |
40" |
| Product # |
Internal |
| ACTA32 |
31" |
23" |
25" |
| ACTA48 |
47" |
23" |
25" |
Source: Synoptics Ltd
mm
| Product # |
External |
| Width |
Depth |
Height |
| ACTA32 |
813 mm |
610 mm |
762 mm |
| ACTA48 |
1219 mm |
610 mm |
1016 mm |
| Product # |
Internal |
| ACTA32 |
787 mm |
584 mm |
508 mm |
| ACTA48 |
1194 mm |
584 mm |
635 mm |
Functionality
How it Works
A: Room air flows away from the operator and enters the enclosure horizontally.
B: The air mixes with gases and vapors.
C: The contaminated air is directed through the filtration bed.
D: Clean air is recirculated into the room.
Image Credit: Synoptics Ltd
