After almost 30 years of work, the BTX is the ultimate TOF mass analyzer for GC and GC × GC applications.

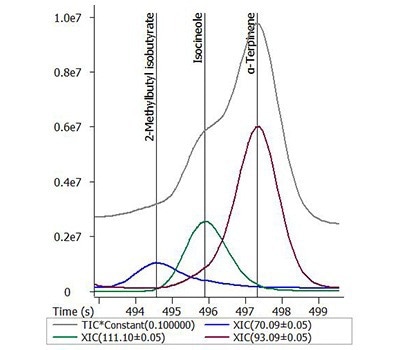

Advanced Deconvolution Algorithms
Image Credit: LECO Corporation
Clean spectra make it easier than ever to find analytes, even in the densest of matrices.

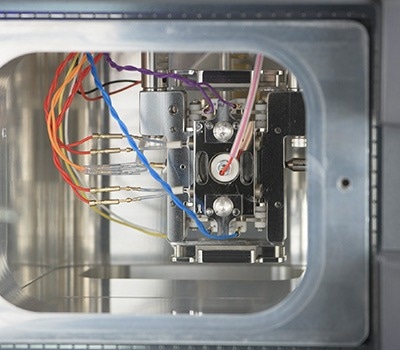

Say Farewell to Source Cleaning
Image Credit: LECO Corporation
Maintain productivity with the StayClean® ion source. It does not need to be cleaned even after extended periods of intense matrix exposure.

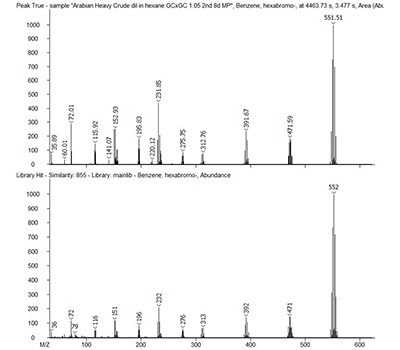

See Everything, All the Time
Image Credit: LECO Corporation
Capture the complete mass range data, even during targeted analyses, and ensure no clue is overlooked.

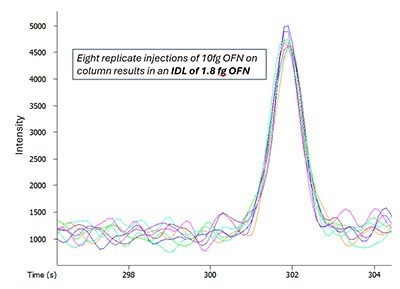

Sensitivity in Spades
Image Credit: LECO Corporation
Achieve trace-level detection using helium or hydrogen carrier gases—ensuring no analyte goes undetected.
Introducing New TOF Tech
Image Credit: LECO Corporation

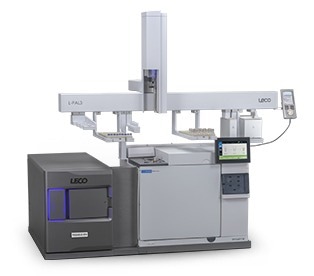

The BTX is the most recent model in LECO's Benchtop (or BT) GC-TOFMS series. The Pegasus BT series has demonstrated dependability in labs for the past eight years, completing objective, non-targeted analyses and handling challenging matrices. Thanks to the amazing Pegasus BT, researchers from a wide range of industries, including pharmaceutical, environmental, food safety, life sciences, and petroleum, have understood the intricate chemistry of their samples on a deeper level.
The innovative StayClean® ion source, blindingly fast full-spectrum acquisition rates, and five orders of linear dynamic range are all carried over from the Pegasus BTX's predecessor, all expertly coordinated by ChromaTOF® software.
With a tiny footprint and femtogram-level sensitivity, a new ion path and detector design enable the discovery of analytes with rich mass spectra previously undiscovered by even the most sophisticated targeted GC-MS systems. As evidence of LECO's investments in ion path integrity, all new BTX systems come with a two-year detector warranty. At LECO, technological advancements never compromise the dedication to instrument quality and robustness.
Working in omics applications, I really need instrument data that is sensitive as well as robust and offers the possibility to do non-targeted analysis. To be honest, so far, this is exactly what we get with the new Pegasus BTX. After testing food and biological matrices on it, I can see that the system is highly sensitive and providing all the added value of the GCxGC separation, which is perfect for my types of samples.
Dr. Pierre-Hugues Stefanuto, Lead Scientist and Lecturer University of Liège, Organic Biological Analytical Chemistry Group
Pegasus BTX Specifications
Source: LECO Corporation
| . |
. |
| Ionization Source |
Electron Ionization (StayClean® Direct Extraction open style) |
| Detector |
Scintillator - Photomultiplier Tube with extended lifetime |
| Mass Analyzer |
Time-of-Flight Mass Analyzer with Dual Stage single Reflectron |
| Mass Range |
10 - 1500 m/z |
| Mass Resolution |
>1,100 at m/z 219 |
| Spectral Acquisition Rate |
1-500 spectra/second - up to 35,000 transients/second |
Detection Limit
(GC carrier gas - Helium) |
10fg OFN with Quant S/N > 10 |
Detection Limit
(GC carrier gas - Hydrogen) |
10fg OFN with Quant S/N > 10 |
| IDL |
< 4fg for 8 replicates of 10fg OFN injected |
| Precision |
< 5% RSD for 15 injections of 100fg OFN |
| Linear Dynamic Range |
5 orders of magnitude |
Characterizing Synthetic Aviation Fuels
Image Credit: LECO Corporation
To comply with regulations, it is essential to characterize conventional aviation turbine fuel and synthetic paraffinic kerosene.
Screening Targets and Identifying Unknowns
Image Credit: LECO Corporation
New analytical techniques are required to keep track of the rising concentrations of per- and polyfluoroalkyl substances (PFAS) in the environment and food chain.
Non-Target Analysis of Molasses
Image Credit: LECO Corporation
When combined with sophisticated deconvolution algorithms, GC-TOFMS can detect intricate aroma profiles in materials such as molasses.
Identifying Drinking Water Contaminants
Image Credit: LECO Corporation
Wildfires increase the possibility of unfavorable chemical reactions with municipal water treatment systems.
Comparing Thyme Aroma Profiles
Image Credit: LECO Corporation
Volatile and semi-volatile aroma profiles of dried thyme from various nations aid in identifying chemical differences.
Unveiling Hidden Aroma in Basil
Image Credit: LECO Corporation
Due to its increased peak capacity, better chromatographic separation, and increased sensitivity, the BTX can reveal intricate low-level aroma profiles.
Improving Sustainable Biofuel Quality
Image Credit: LECO Corporation
Heteroatomic substances may interfere with the refining and treatment processes involved in pyrolysis.
Applications Exploration
Image Credit: LECO Corporation
LECO Global Applications Director Nick Jones talks about the Pegasus BTX application work.
