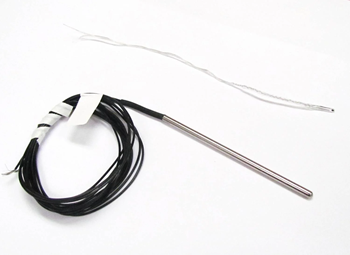

Thermometrics Type CSP Temperature Standards are ultrastable probe thermistors calibrated to an accuracy of 0.01 °C. The standard unit includes a thin, conformal silicone rubber coating over the entire unit, making it acceptable for immersion in water baths. They are also available with stainless steel sensor housings and can be enclosed in various sheaths.
Applications
All devices, with longer leads and a variety of coatings, can be calibrated over a wide range of temperatures.
Features
- Ultrastable
- Calibrated for 0.01 °C precision
- Ideal for liquid immersion
- There are several calibration temperature ranges, lead lengths, and coatings available
CSP60BA252M
CSP60BA252M Specifications. Source: Amphenol Advanced Sensors
| CSP60BA252M Specifications: |
| Nominal Resistance |
2500 ohms @ 2 °C |
| Calibration Range |
0° to 50 °C |
Nominal Curve. Source: Amphenol Advanced Sensors
| Nominal Curve |
| Temperature (°C) |
Resistance Ratio (Rt/R25) |
| 0 |
2.84438 |
| 5 |
2.28160 |
| 10 |
1.84096 |
| 15 |
1.49390 |
| 20 |
1.21899 |
| 25 |
1.00000 |
| 30 |
0.82461 |
| 35 |
0.68340 |
| 40 |
0.56913 |
| 45 |
0.47620 |
| 50 |
0.40025 |
CSP60BT103M
CSP60BA252M Specifications. Source: Amphenol Advanced Sensors
| CSP60BA252M Specifications: |
| Nominal Resistance |
2500 ohms @ 25 °C |
| Calibration Range |
0° to 50 °C |
Nominal Curve. Source: Amphenol Advanced Sensors
| Nominal Curve |
| Temperature (°C) |
Resistance Ratio (Rt/R25) |
| 0 |
2.94227 |
| 5 |
2.33994 |
| 10 |
1.87383 |
| 15 |
1.51049 |
| 20 |
1.22532 |
| 25 |
1.00000 |
| 30 |
0.82084 |
| 35 |
0.67752 |
| 40 |
0.56219 |
| 45 |
0.46887 |
| 50 |
0.39295 |
| 55 |
0.33087 |
| 60 |
0.27985 |
| 65 |
0.23773 |
| 70 |
0.20279 |
| 75 |
0.17368 |
| 80 |
0.14932 |
| 85 |
0.12886 |
| 90 |
0.11159 |
| 95 |
0.19697 |
| 100 |
0.08455 |
