AirBreather Platform for Continuous Gas Analysis

Analytical Science and Technologies Group, Inc.'s AirBreather Platform^TM is the best analytical system in the BevCO₂ sector. Building on its achievements in this field, ASTG has enhanced the AirBreather Platform's functionality to meet the changing requirements of pipeline transport, carbon capture, sequestration, and biogenic CO₂ monitoring.

The AirBreather is a perfect fit for these new applications because of its established dependability in the BevCO₂ sector. Due to its modular architecture, ASTG can easily incorporate state-of-the-art technologies and guarantee that it satisfies the most demanding specifications. The AirBreather Platform constantly goes above and beyond expectations, whether the objective is pipeline corrosion prevention, reuse, or sequestration.

System Highlights

• The market's fastest analytical system (less than a minute)
• Accurate, sturdy, and mechanically straightforward
• Service intervals of one year
• Support gas for compressed air
• Electronic verification and validation
• Secure COA^TM Certificate of Analysis Module
• FDA and FSMA 21 CFR Part 11 module available
• Smooth integration into ASTG operating platforms for data collection, trailer testing, and remote operations

Analytical Systems Features

• 50 specific impurities are examined concurrently, and more compounds of interest can be added
• Completely automated remote access to computers
• Touch screen for simple control and setup
• Using onboard databases, view historical, real-time, or diagnostic data
• Multi-point sampling; integrated alarm functionality for flow, concentration, and diagnostics

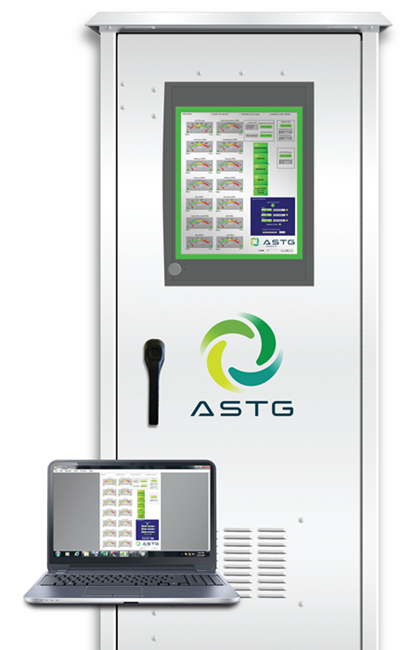

Integrated Software

• A fully automated computer-controlled system enables remote diagnostics and data access.
• Monitor all-important quality control parameters using the dashboard's visual graphics.
• Enables ongoing examination of several sites

Image Credit: ASTG

System Components

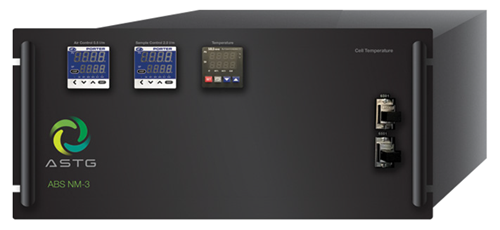

ABP NM-3

• Controller for a solid-state mass flow continuous sample system
• Sample Safety Tech^TM reduces sample and analysis time
• Removes sample cross-contamination
• Ensures data reliability
• Collects samples from multiple locations
• Houses a UVID UV Fluorescent Oxygen (O₂) sensor
• Uses a non-depleting/non-reactive gas cell

Image Credit: ASTG

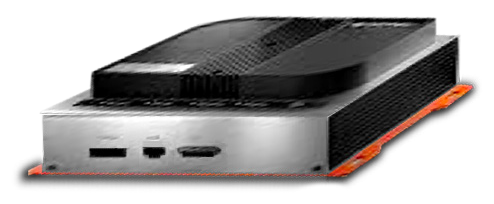

ABP Micro GC

• Novel TCD technology
• Analyte-specific techniques accessible: H₂S (0.5 ppm), Argon (0.5 ppm DL), Helium (0.5 ppm DL), Nitrogen (0.5 ppm DL), and Hydrogen (0.5 ppm DL)
• Complete data support and 100% remote operability

Image Credit: ASTG

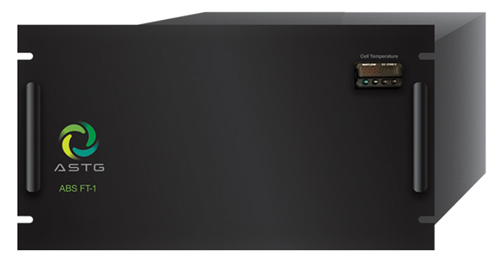

ABP FT-1

• Quick reaction and broad-spectrum analysis
• Support gas made from compressed air (optional: nitrogen)
• Complete data support, 100% remote operability, and a one-year service interval (greater than one year for PM consumables)
• Internal Verification and Validation Sulfur (0.020 ppm), Methanol (0.5 ppm)

Image Credit: ASTG

Additional System Options:

• Panel HVAC for regions needing panel heating or cooling
• Combustion and H₂ detectors with shutoff valves and visual and auditory alerts
• Up to 40 sample points
• Data governance systems
• Rugged external portable shelters
• Heated regulators
• Compressed air systems for areas lacking clean dry air systems
• Options for service support

There are many obstacles to tracking CO₂ purity and detecting impurities in Carbon Capture, Carbon Sequestration, Pipeline Transport, and bioGenic CO₂ applications. To guarantee the purity of the CO₂ captured and avoid contamination, these procedures necessitate the exact measurement of several gases, including CO₂, oxygen, nitrogen, methane, and trace elements.

Any impurities, including sulfur compounds, nitrogen oxides, chlorinated compounds, hydrocarbons, acidic gases, and moisture, can seriously compromise the integrity of CO₂ and cause acidic conditions to form.

When these contaminants are present in CO₂ being transported via pipelines, carbonic acid or other corrosive compounds may form. This can result in significant pipeline corrosion, which can deteriorate infrastructure and cause disastrous failures and environmental risks.

Furthermore, it is even more difficult to identify and measure these contaminants due to the different pressures, temperatures, and compositional conditions used in these applications.

Adhering to strict regulatory standards creates another layer of difficulty, as industries are required to follow particular safety and environmental guidelines to protect the environment and public health.

To overcome these difficulties, the ASTG AirBreather Platform offers a complete solution for tracking the purity of CO₂ and identifying contaminants in vital applications.

Due to its sophisticated sensing technologies, the AirBreather Platform provides real-time, high-precision monitoring of CO₂ and impurities, including gases like moisture and sulfur compounds that can cause acidic conditions.

Early risk identification is made possible by its capacity to identify impurities at even trace levels.

Proactive monitoring protects pipeline systems from corrosion's destructive effects and averts catastrophic failures.

The platform's seamless integration with the newest technologies ensures the highest levels of accuracy and dependability, while its modular design offers flexibility to adapt to various operational environments.

By surpassing all regulatory requirements, the AirBreather Platform guarantees environmental safety and CO₂ purity adherence to industry standards.

Whether for pipeline transportation, carbon capture, sequestration, or biogenic CO₂ processes, the AirBreather Platform guarantees operational effectiveness and protects infrastructure from corrosive conditions that could otherwise cause serious harm and environmental risks.

Simultaneous analysis of 50+ targeted impurities, with the flexibility to add additional compounds of interest.
