Harnessing Microfluidic Technology for Heavy Metal Analysis

By Taha KhanReviewed by Lexie CornerJun 5 2024

Heavy metals like chromium, lead, mercury, arsenic, and cadmium are a concern in environmental science due to their toxicity and persistence in various ecosystems. These metals can bioaccumulate in plants and animals, posing significant health risks throughout the food chain.

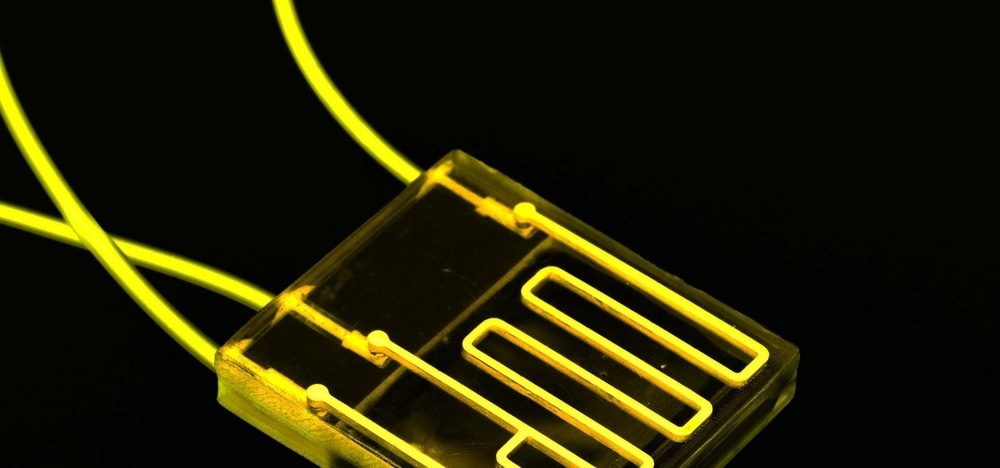

Image Credit: luchschenF/Shutterstock.com

Therefore, efficient methods for detecting heavy metals in water, soil, and air are crucial for environmental monitoring and pollution control.¹ This article discusses the role of microfluidic technology as a reliable tool for enhancing heavy metal analysis.

Basics of Microfluidic Technology

Microfluidics involves fluid manipulation and control at a submillimeter scale within microfabricated channels etched on a chip, forming a miniature laboratory capable of performing complex analytical tasks.

Several advantages make microfluidic devices ideal for precise analysis of heavy metals and environmental monitoring. These devices are significantly smaller and lighter than conventional laboratory equipment, allowing portability and on-site analysis. They can also automate sample preparation, manipulation, and detection processes, reducing human effort.

Moreover, microfluidic devices integrate multiple analytical steps, like sample pre-treatment, separation, and detection onto a single chip, creating a complete microfluidic analysis system.^{1, 2}

Applications in Heavy Metal Analysis

Microfluidic devices are used for the precise, real-time analysis of heavy metals in various environmental samples, including water, soil, and industrial effluents.

For example, analyzing heavy metals in soil samples often involves extracting them into a liquid medium and analyzing them. Microfluidic devices can automate this process by integrating microchannels for sample extraction, mixing, and separation. This enables on-site soil analysis and eliminates the need for complex laboratory setups.

Similarly, microfluidic devices can monitor effluent streams in real-time by integrating with online sensors that continuously track metal concentrations, allowing immediate intervention if contamination levels exceed permissible limits.^{1, 3}

Microfluidic chips can also be designed to detect specific heavy metals in water samples. For instance, in a recent study, researchers introduced a wireless microfluidic sensor utilizing low-temperature cofired ceramic (LTCC) technology to detect metal ions in water.

This advanced sensor features a planar spiral inductor and parallel plate capacitor integrated with a microchannel in the LTCC substrate. It effectively identifies and measures concentrations of various metal ions, including Pb(NO₃)₂, Cd(NO₃)₂, and others, within the range of 0-100 mM. ⁴

The sensor can detect metal ions at concentrations as low as 5 μM, showcasing higher sensitivity compared to traditional liquid microfluidic sensors and the potential of LTCC-based microfluidic sensors for efficient and portable heavy metal ion analysis in industrial wastewater.⁴

Portable Water Testing with Microfluidic Device

In a 2018 study, researchers developed a novel method for rapid, sensitive, and multiplex detection of heavy metals using chemically patterned microfluidic paper-based analytical devices (C-µPADs).

This device can accurately detect nickel, chromium, and mercury ions by immobilizing amine, carboxyl, and thiol groups onto chromatography paper through condensation reactions and coupling these with specific chromogenic reagents.⁵

The detection limits achieved by this method were remarkably low: 0.24 ppm for Ni(II), 0.18 ppm for Cr(VI), and 0.19 ppm for Hg(II). This approach demonstrated significant improvements in uniformity and sensitivity compared to previous methods, making it a practical and portable solution for on-site water quality monitoring, particularly in resource-limited settings.⁵

Advantages Over Traditional Methods

Traditional laboratory techniques for heavy metal analysis, like inductively coupled plasma atomic emission spectroscopy (ICP-AES) or atomic absorption spectroscopy (ASS), often involve bulky instruments, time-consuming procedures, and large volumes of reagents. Microfluidic technology offers several advantages over these methods, including lower cost, faster results, reduced reagents, and portability.⁶

Microfluidic chips, such as microfluidic paper-based analytical devices (µPADs), are relatively inexpensive to fabricate, especially with advancements in mass production techniques. This makes them a cost-effective alternative to expensive laboratory equipment. They also require significantly smaller sample and reagent volumes, minimizing waste generation and reducing reagent purchase and disposal costs.

The miniaturized channels in microfluidic devices make them compact, lightweight, and portable, allowing on-site analysis and providing faster and more real-time detection of heavy metals than traditional laboratory techniques. ^{2, 6}

Future Directions and Challenges

Despite significant progress in microfluidic devices, several challenges remain. Integrating all necessary components, such as electrical connections, detection units, and microfluidic channels, is a major challenge.¹

Microfluidic devices can be integrated with biosensors that utilize specific biological molecules for selective detection of heavy metals, enhancing sensitivity and providing real-time information on their bioavailability.

Similarly, as heavy metals can exist in different chemical forms, each with varying toxicity levels, microfluidic devices can be designed to incorporate techniques for separating and identifying metal species.^{1, 7}

Improving performance and detection repeatability, as well as extensive industrial evaluation of these devices, is crucial for commercialization. Beyond technological advancements, developing collaboration frameworks is essential to address these shortcomings effectively.

More from AZoM: Advancements in Real-Time Metal Monitoring of Industrial Wastewater

References and Further Reading

1. Filippidou, MK., Chatzandroulis, S. (2023). Microfluidic Devices for Heavy Metal Ions Detection: A Review. Micromachines. doi.org/10.3390/mi14081520
2. Filippidou, MK., et al. (2023). Integrated Plastic Microfluidic Device for Heavy Metal Ion Detection. Micromachines. doi.org/10.3390/mi14081595
3. Hong, Y., Wu, M., Chen, G., Dai, Z., Zhang, Y., Chen, G., Dong, X. (2016). 3D printed microfluidic device with microporous Mn2O3-modified screen printed electrode for real-time determination of heavy metal ions. ACS applied materials & interfaces. doi.org/10.1021/acsami.6b10464
4. Liang, Y., Ma, M., Zhang, F., Liu, F., Lu, T., Liu, Z., Li, Y. (2021). Wireless microfluidic sensor for metal ion detection in water. ACS omega. doi.org/10.1021/acsomega.1c00941
5. Devadhasan, JP., Kim, J. (2018). A chemically functionalized paper-based microfluidic platform for multiplex heavy metal detection. Sensors and Actuators B: Chemical. doi.org/10.1016/j.snb.2018.06.005
6. Lin, Y., Gritsenko, D., Feng, S., Teh, YC., Lu, X., Xu, J. (2016). Detection of heavy metal by paper-based microfluidics. Biosensors and Bioelectronics. doi.org/10.1016/j.bios.2016.04.061
7. Kim, M., Lim, JW., Kim, HJ., Lee, SK., Lee, SJ., Kim, T. (2015). Chemostat-like microfluidic platform for highly sensitive detection of heavy metal ions using microbial biosensors. Biosensors and Bioelectronics. doi.org/10.1016/j.bios.2014.10.028
