The Bettersizer 2600 employs a well-established particle measurement technology— Laser Diffraction Technology, covering a particle size range of 0.02 - 2,600 μm. There are 92 photoelectric detectors to convert light signals from the scattering spectrum to electrical signals, which are transmitted into intelligent software. By implementing the Mie scattering theory to the data and performing mathematical conversion, the accurate and reliable particle size distribution can be derived.
The modular design of the Bettersizer 2600 endows it with versatile capabilities. The dynamic imaging module enables combined laser and imaging tests, extending the measurement range up to 3,500 μm and providing both particle size and shape analysis. The diverse dispersion system modules support a wide range of testing needs, including both dry and wet dispersion methods to meet various testing requirements.
BT-A60 Autosampler | Automated Efficiency in Particle Test
Video credit: Bettersize Instruments Ltd.
Features and Benefits
- Measurement: Particle size and shape
- Wide particle size range: wet dispersion: 0.02 to 2,600 μm; dry dispersion: 0.1 to 2,600 μm; dynamic image: 2.0 to 3,500 μm
- Dual optical system: Laser Diffraction and Dynamic Imaging
- Advanced laser diffraction system: A Combination of Fourier and inverse Fourier design
- Spherical array of 92 detectors: detection of light signals from 0.016° to 165°
- Auto-alignment of the laser diffraction system: elimination of manual adjustments
- Modular dual-camera imaging system: 24 detailed particle parameters
- Seamless switching dispersion units: adaptability to both dry and wet methods
- User-friendly software: efficiency and ease of use
- Compliance with ISO 13320, 21 CFR Part 11, USP <429>, ISO 13322-2

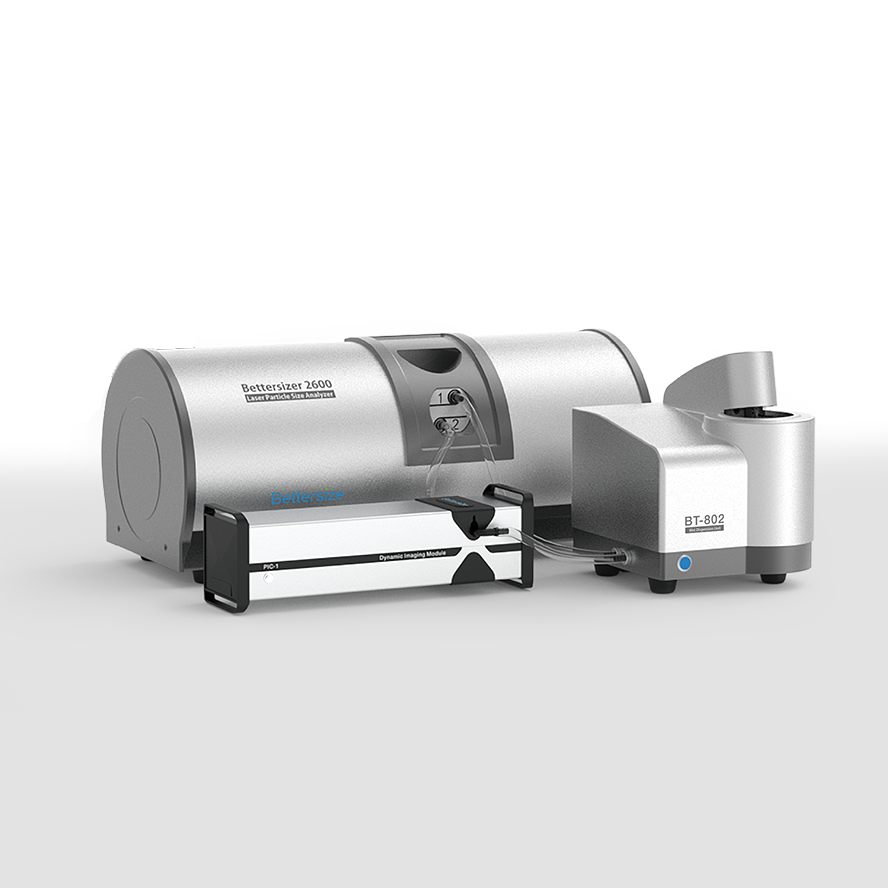

Dynamic Imaging Module: PIC-1
The PIC-1 dynamic imaging module is a versatile and comprehensive dynamic image analysis instrument, designed for seamless integration with the Bettersizer 2600 laser particle size analyzer and the wet dispersion system.
Parameter and Specification of PIC-1
Particle size range: 2 – 3,500 μm*
Size and shape parameters: 24
Camera type: CCD sensor, 1.5 Megapixels
Magnification: 0.5x and 10x
Imaging rate: 120 fps
Illumination: White and blue LED
Image recognition: Up to 10,000 particles per minute
Source: Bettersize Instruments Ltd.

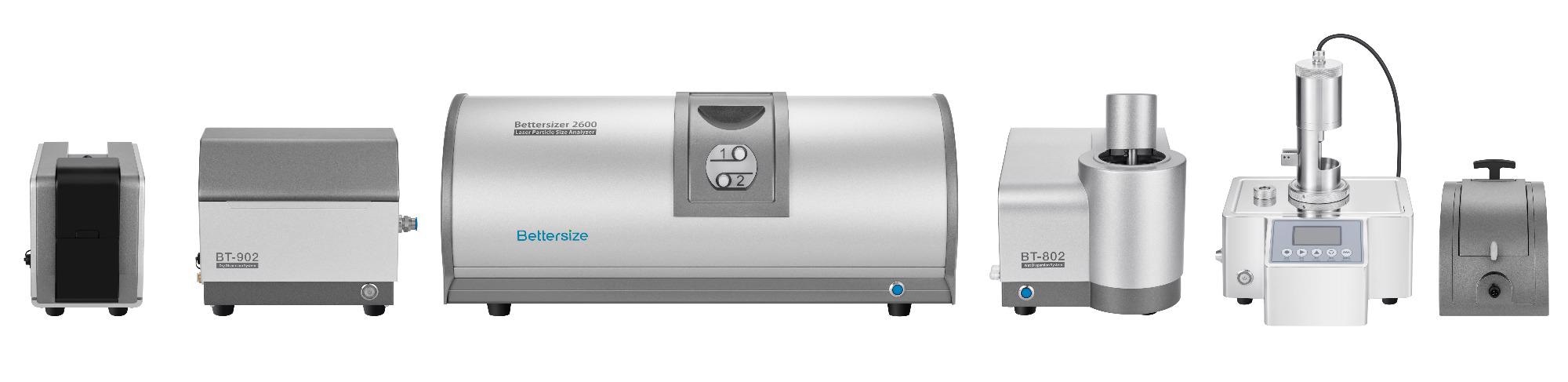

| Sample Dispersion Modules |
BT-802 |
BT - 804 |
BT-80N |
BT - 80N Pro |
BT-902 |
BT-903 |
| Sample Dispersion |
Wet sample dispersion |
Wet small volume sample dispersion |
Anti-corrosive sample dispersion |
Anti-corrosive Wet sample dispersion |
Dry sample dispersion |
Dry small volume sample dispersion |
| Dispersion Modules |
 |
 |
 |
 |
 |
 |
| Combine with Main Device |
 |
 |
 |
 |
 |
 |
| Volume / Sample Mass |
600 mL |
8 mL |
50 - 80 mL (dispersion medium) |
80 - 200 mL
(dispersion medium) |
0.2 g-10 g |
0.05 g-1 g |
| Automation |
Fully automated |
Semi-automated |
Semi-automated |
Fully automated |
Fully automated |
Fully automated |
Smart and Powerful Software
- Easy operation and a clear intuitive interface
- Easy to use SOP operation
- Automatic cleaning routine
- Real-time mode for finding out the ideal measurement conditions
- Completely automated measurement routine with automatic calibration
- Conversion from wet to dry dispersion can be done just by clicking a button
- Editable reports and automatic data backup
- Precise analysis achieved by suitable use of either the Fraunhofer or Mie evaluation models based on sample type and sample size
Applications:
The instrument finds applications in the following fields:
- 3D Printing Materials
- Abrasives
- Batteries
- Building Materials
- Ceramics
- Cosmetics
- Food & Beverage
- Mining & Materials
- Paints, Inks & Coatings
- Pharmaceuticals
