The BeDensi T Pro Series from Bettersize is a dependable tapped density tester that stands out when it comes to intuitive operation. The instrument complies with the ASTM, European Pharmacopeia (EP2.9.34), ISO and United States Pharmacopeia (USP<616>).
It has the ability to quantify the tapped density and bulk density with 1.0% repeatability to help users comprehend the flowability of an extensive range of powder materials.

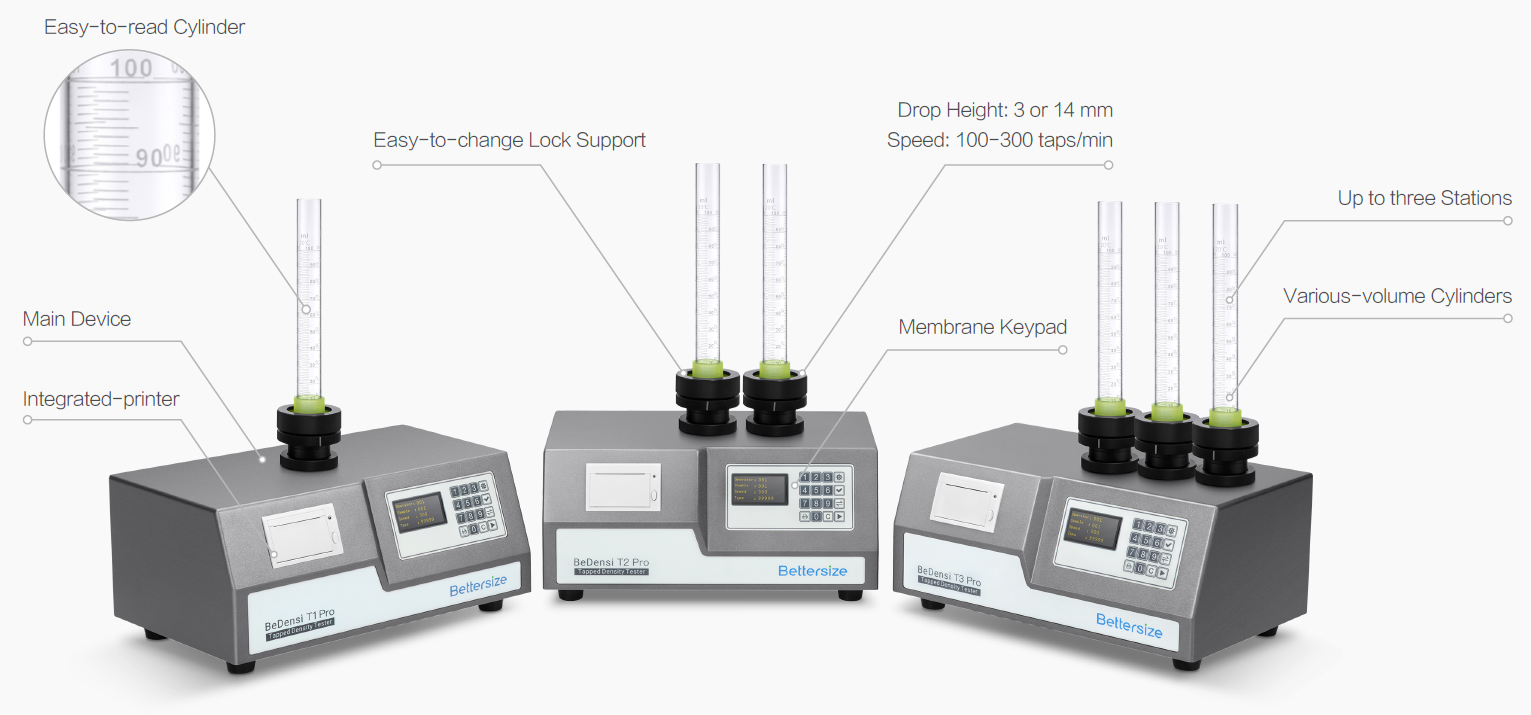

This tapped density tester includes the main body, graduated cylinders, control panel and embedded mini printer. The tapping frequency and numbers can be adjusted. Moreover, the cylinder types (25, 100 or 250 mL) and drop height (3 or 14 mm) are also available based on various requirements.
The BeDensi T Pro Series is the perfect tester to identify the tapped density of various types of powders in different industries like food and beverage, pharmaceuticals, chemistry, metallic powders and compounds, carbon and ceramics and batteries.
BeDensi T Pro Series | Tapped Density Tester with a Wallet-Friendly Solution
Video Credit: Bettersize Instruments Ltd.
Benefits
Compliance
The BeDensi T Pro Series fulfills the ASTM, EP, ISO and USP standards to offer informative outcomes.
Easy to Use
- Users can easily set measurement conditions with the help of a membrane keypad
- Users can just click to print detailed reports
- Cylinders can be replaced rapidly with the simple lock holders
Wallet-Friendly
Users can own a dependable tapped density tester at a reasonable price.

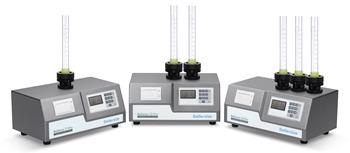

Up to Three Workstations
The single tapped density tester comes with up to three workstations to fulfill various measurement requirements and scale up users’ productivity even more.
Image Credit: Bettersize Instruments Ltd.
Compliance
The BeDensi T Pro Series fulfill the standards of various industries by supporting 25, 100 and 250 mL cylinders; 3 or 14 mm drop height; and a speed of 100–300 taps/minute.
- ASTM
- Drop height of 3 or 14 mm and speed of 100–300 taps/minute
- Cylinder: 25, 100 or 250 mL
- ISO
- Drop height of 3 or 14 mm and speed of 250 or 300 taps/minute
- Cylinder: 250 or 100 mL
- USP and EP Methods Ⅰ
- Drop height of 3 mm and speed of 250 taps/minute
- Cylinder: 25, 100, 250 mL
- USP and EP Methods Ⅱ
- Drop height of 3 mm and speed of 100–300 taps/minute
- Cylinder: 25, 100 or 250 mL
- User-defined
- Drop height of 3 mm and speed of 250 taps/minute
- Cylinder: 250 or 100 mL
Applications
- Batteries
- Chemistry
- Carbon
- Food and beverage
- Ceramics
- Pharmaceutical
- Metal powder and compounds
The BeDensi T1 Pro is easy to use and has an intuitive keyboard for setting various measurement conditions. The report can be printed out immediately after each measurement. Most importantly, the noise level of this device has been significantly reduced compared to the previous version.
K-ONE, South Korea
Standardized Measurement Procedure
1. Selecting the Cylinder Size
- Depending on the density and types of samples, a proper cylinder size must be chosen (25 mL, 100 mL and 250 mL optional)
- Users should place the cylinder on the supporter and lock it with the holder
2. Setting the Test Conditions
- The number of taps and the speed should be entered
- Speed: 100–300 taps/minute
- Number of taps: 1 to 99,999
- For example, the number of taps is 10, 500 and 1250, and the speed is 250 taps/minute (3 mm drop height), according to USP and EP.
3. Weighing the Sample
- Users should filter the sample using a 1.0-mm sieve. Samples should be weighed in grams and poured into the cylinder gently.
- Then, the test can start.
4. Reading the Volume
- A mean tapped volume value can be achieved from three readings.
5. Printing the Report
Users only have to input the weight and the tapped volume while the BeDensi T Pro Series automatically estimates the tapped density and prints the report when the print button is pressed.
The outcomes can be utilized to evaluate the Hausner Ratio (HR) and the Compressibility Index (CI) and additionally calculate the flowability of samples.
Performance
Image Credit: Bettersize Instruments Ltd.

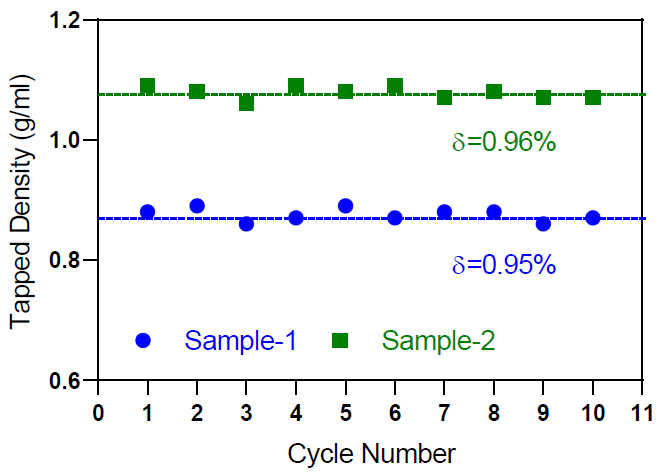

The image above shows 10 cycle measurements of two samples, indicating the high repeatability (<1.0%) of the BeDensi T Pro Series. Intricate and standardized design enables the tapped density tester to offer informative and reliable results.

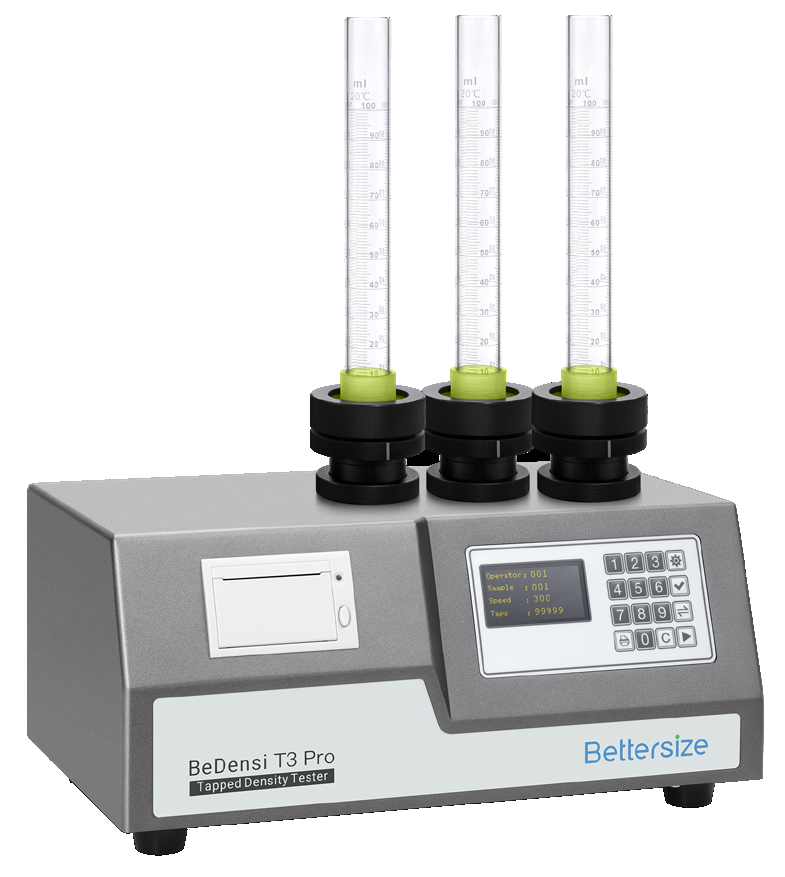

BeDensi T3 Pro with 3 Workstations. Image Credit: Bettersize Instruments Ltd.
Accessories
Graduated Glass Cylinder

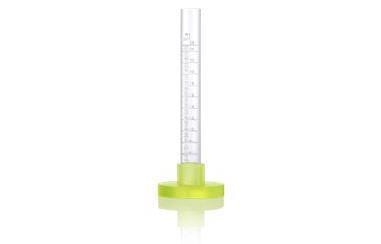

25 mL Cylinder. Bettersize Instruments Ltd.

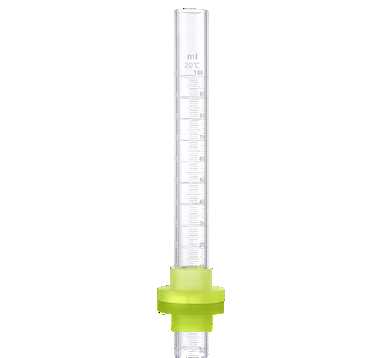

100 mL Cylinder. Bettersize Instruments Ltd.

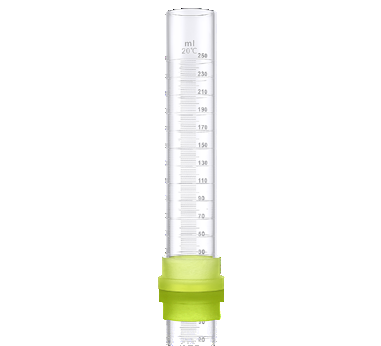

250 mL Cylinder. Bettersize Instruments Ltd.
Supporter and Holder
Holder. Bettersize Instruments Ltd.
3 mm Supporter. Bettersize Instruments Ltd.
14 mm Supporter. Bettersize Instruments Ltd.
Specification
Source: Bettersize Instruments Ltd.
| . |
. |
. |
| Test Workstation |
Up to 3 |
|
| Compliance |
USP <616>, |
|
| EP 2.9.34, |
|
| ASTM D7481 |
|
| ASTM B527 |
|
| ISO 787-11 |
|
|
| User defined |
|
| Taps |
1 to 99999 |
|
| Speed |
100 to 300 taps/min (adjustable) |
|
| Drop Height |
3 ± 0.2 mm |
For nominally 250 ± 15 taps/min |
| 14 ± 2 mm |
For nominally 300 ± 15 taps/min |
| Graduated Cylinder |
25 ml |
Readable to 0.2 ml |
| 100 ml |
Readable to 1 ml |
| 250 ml |
Readable to 2 ml |
| Repeatability |
≤1% |
|
| Power |
100-240 VAC/50-60 Hz/ 50 W |
|
| Dimensions |
Width |
260 mm |
| Depth |
410 mm |
| Height |
245 mm |
| Weight |
T1 |
16 kg |
| T2 |
18.2 kg |
| T3 |
21 kg |
The BeDensi T3 Pro has a very good compact design and is easy to use. The automatic data analysis not only saves the costs of manual calculation, but also provides us with a stable and informative result. Bettersize instruments play an important role in the development of our products and we will continue to purchase BeDensi T3 Pro in the future.
Heilongjiang Pride New Material Technology Co., Ltd
