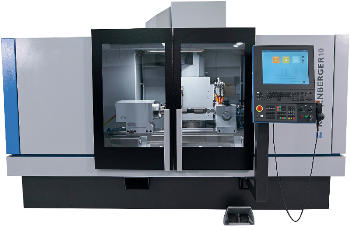

The KELLENBERGER® 10 from Hardinge is a standardized machine with the potential to offer an unrivaled price-performance ratio. The machine integrates proven components updated recently based on the latest technology.
The machine also features an intuitive programming surface, thus creating a highly capable base that can be customized easily by a wide array of optional equipment base on the requirements of the customer.
Features
- The standard machine for experts and beginners alike in the precision grinding field
- Price-performance ratio — Unparalleled value for function and performance in the market
- Engineered for workpieces smaller than Ø400 mm x 1000 mm
- BLUE Solution Software on a touch display measuring 19″
- Between tips up to 100 kg, flying up to 80 kg
- Guided programming and retooling, can be done even by novice operators
Hardinge KELLENBERGER® 10 (English)
Video Credit: Hardinge Inc.
Hardinge Kellenberger 10 (German)
Video Credit: Hardinge Inc.
Technical Data
Source: Hardinge Inc.
| . |
. |
. |
| Characteristics |
|
|
| Distance between centres |
mm |
1000 |
| Centre height |
mm |
200 |
| Weight of workpiece between centres |
kg |
up to 100 |
| Load on chucked work |
Nm |
up to 100 |
| Mains voltage required |
V |
400 / 460 |
| Power consumption depending on equipment |
A |
up to 40 |
| Space required / length x width |
mm |
2.7 x 2.2 / 3.5 x 2.2 |
| Total weight |
kg |
4.000 |
| Table/Slide Z-axis |
|
|
| Travel |
mm |
1.150 |
| Rapid traverse speed |
m/min |
up to 20 |
| Resolution |
mm |
0.00001 |
| Wheelslide X-axis |
|
|
| Travel |
mm |
365 |
| Rapid traverse speed |
m/min |
up to 10 |
| Resolution |
mm |
0.00001 |
| Swivel devices |
|
|
| Swiveling range |
degree |
240 |
| Automatic indexing of resolution |
degree |
1 |
| Wheelhead |
|
|
| Water-cooled drive motor |
KW |
7.5 |
| Performance peripheral speed |
m/s |
up to 50 |
| Grinding wheel dimensions |
mm |
up to Ø500x80 |
| Internal grinding device |
|
|
| Bore for spindles up to |
mm |
150 |
| Power, HF spindles |
KW |
up to 7.5 |
| Rotation speed |
rpm |
up to 60.000 |
| Workhead |
|
|
| Rotation spindle speed |
rpm |
1 - 1,000 |
| Interface |
|
ISO 702-1, Size 5/MT5 |
| Roundness accuracy in chucked work |
μm |
0.4 (optional 0.2) |
| Tailstock |
|
|
| Internal taper |
|
MT4 |
| Retraction of sleeve |
mm |
49 |
| Micro-adjustment |
μm / Ø |
±60 |
All data are subject to change without notice
