The Hardinge® SUPER-PRECISION® T-Series turning centers and T-Series turning centers are proven market leaders in hard-turning and super precision applications.
The T-Series machines have been developed to create the most complex parts in the tool sector and are perfect for two-axis high-precision machining or challenging multi-tasking operations that need a high level of accuracy, sensitive part handling and for components made complete in just one setup.
Machine packages are all pre-configured with Hardinge’s well-known features, enabling users to choose the right machine tool configuration to create their components in the most profitable and effective way.

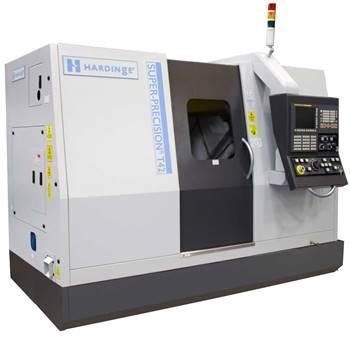

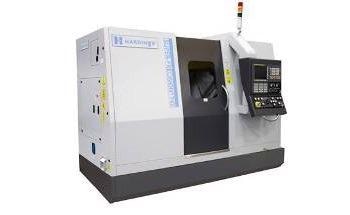

Hardinge T-Series SUPER-PRECISION Lathe
Video Credit: Hardinge Inc.
Technical Data
Source: Hardinge Inc.
| |
T-42 |
T-51 |
T-65 |
| Spindle Nose |
A2-5 / 16C |
A2-6 / 20C |
A2-6 / 25C |
Spindle Bore
(not bar capacity) |
48 mm |
60.4 mm |
75 mm |
| Max. Spindle Speed |
6.000 RPM |
5.000 RPM |
4.000 RPM |
| Max. Spindle HP |
11 kW |
15 kW |
26 kW |
| Chuck Size |
150 mm |
200 mm |
250 mm |
Max. Machining
Diameter (BMT) |
239 mm
360.6 mm |
313.7 mm
570.7 mm |
313.7 mm
570.7 mm |
| Max. Bar Capacity |
42 mm |
51 mm |
65 mm |
No. Turret Stations
(BMT) |
16 Stationen
(BMT 45) |
12 Stationen
(BMT 55) |
12 Stationen
(BMT 55) |
| CNC Control Unit |
FANUC 31i |
FANUC 31i |
FANUC 31i |
Approx. Machine Weight
Floor Space |
5.940 kg
2.489,2 mm x 2.165 mm
x 2.089 mm |
7.800 kg
3.257 mm x 2.312,4 mm
x 2.123 mm |
7.800 kg
3.257 mm x 2.312,4 mm
x 2.123 mm |
All data are subject to change without notice
Features
- Hardinge SUPER-PRECISION®
- Rigid tapping
- Tailstock
- Collet-ready main spindle
- Linear glass scale
- Rugged 45° base structure
- Hardinge BMT-45 top plate
- Live tooling
Machine Options
- Hardinge T-style top plate
- Parts catcher
- Tool touch probe
- Air blast
- Auto door
- Chip conveyor
- Thru-spindle coolant
- High-pressure coolant
- Barfeed interface
- 125 psi coolant pump
Controls
FANUC 31i-T Model A
- Graphic display
- Features 10.4 ″ LCD display
- Pendent-mounted full control
- RS-232C communication ports
- Integrated Ethernet
- Tool offset capability is 0.00001″ (0.0001 mm)
- Absolute encoders
- Program resolution is 0.00001″ (0.0001 mm)
- Tool offsets with geometry/wear (200/400)
- Tool offsets with geometry/wear (99)
- Part program storage
- Inch/metric selection by G-Code
- Part program storage of 160 m (64 KB)
